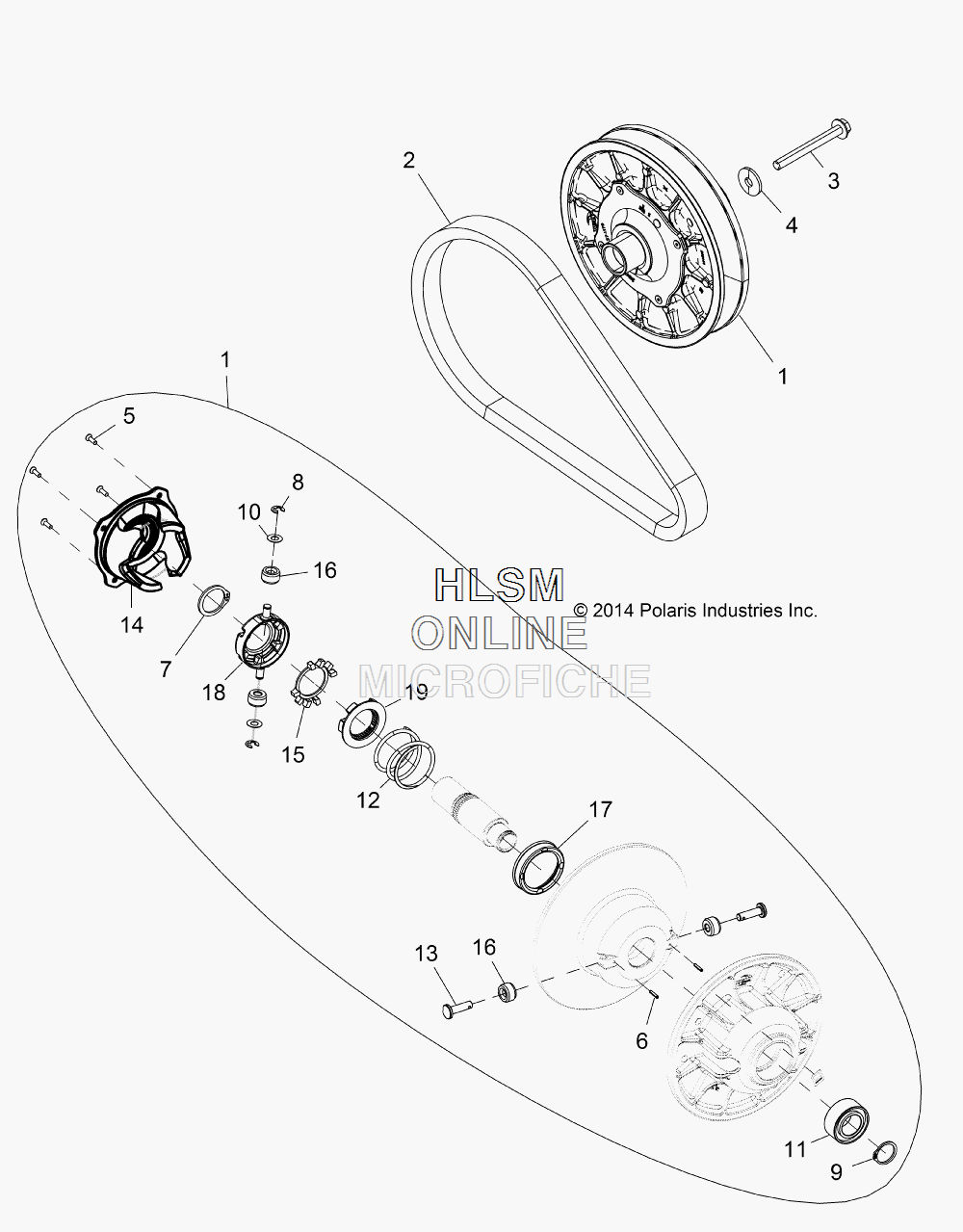

CLUTCH- SECONDARY для Polaris RZR XP 4 1000/PS TITANIUM MATTE METALLIC [Z146T1EAM] - 2014 года выпуска
-
№АртикулНазвание
-
11323239 ASM., CLUTCH, DRIVEN (INCL. 5-19) (BUILT 4/2/14 AND AFTER)ASM., CLUTCH, DRIVEN (INCL. 5-19) (BUILT 4/2/14 AND AFTER)
-
11323166 ASM., CLUTCH, DRIVEN (INCL. 5-19) (BUILT 4/1/14 AND BEFORE)ASM., CLUTCH, DRIVEN (INCL. 5-19) (BUILT 4/1/14 AND BEFORE)
-
23211148 BELT, DRIVEBELT, DRIVE
-
37519043 SCREWSCREW
-
47556130 WASHERWASHER
-
53234754 WASHER, THRUSTWASHER, THRUST
-
63234202 PIN, SPRING SLOTTEDPIN, SPRING SLOTTED
-
77710522 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
87710523 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
93234205 RING, RETAININGRING, RETAINING
-
107556226 WASHER, THRUSTWASHER, THRUST
-
113234203 BEARING, BALLBEARING, BALL
-
123234452 SPRING, COMPRESSIONSPRING, COMPRESSION
-
133234201 PIN , ROLLERPIN , ROLLER
-
143235584 ASM., CAM (USE W/1323166)ASM., CAM (USE W/1323166)
-
143235608 STAR, DETENT (USE W/1323239)STAR, DETENT (USE W/1323239)
-
157710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
163234207 ROLLER, CLUTCHROLLER, CLUTCH
-
175434534 ROLLERROLLER
-
185139593 SPIDER, DRIVEN, IED DAMPEDSPIDER, DRIVEN, IED DAMPED
-
195139594 INSERT, SPIDER DAMPENER, FORGEDINSERT, SPIDER DAMPENER, FORGED
