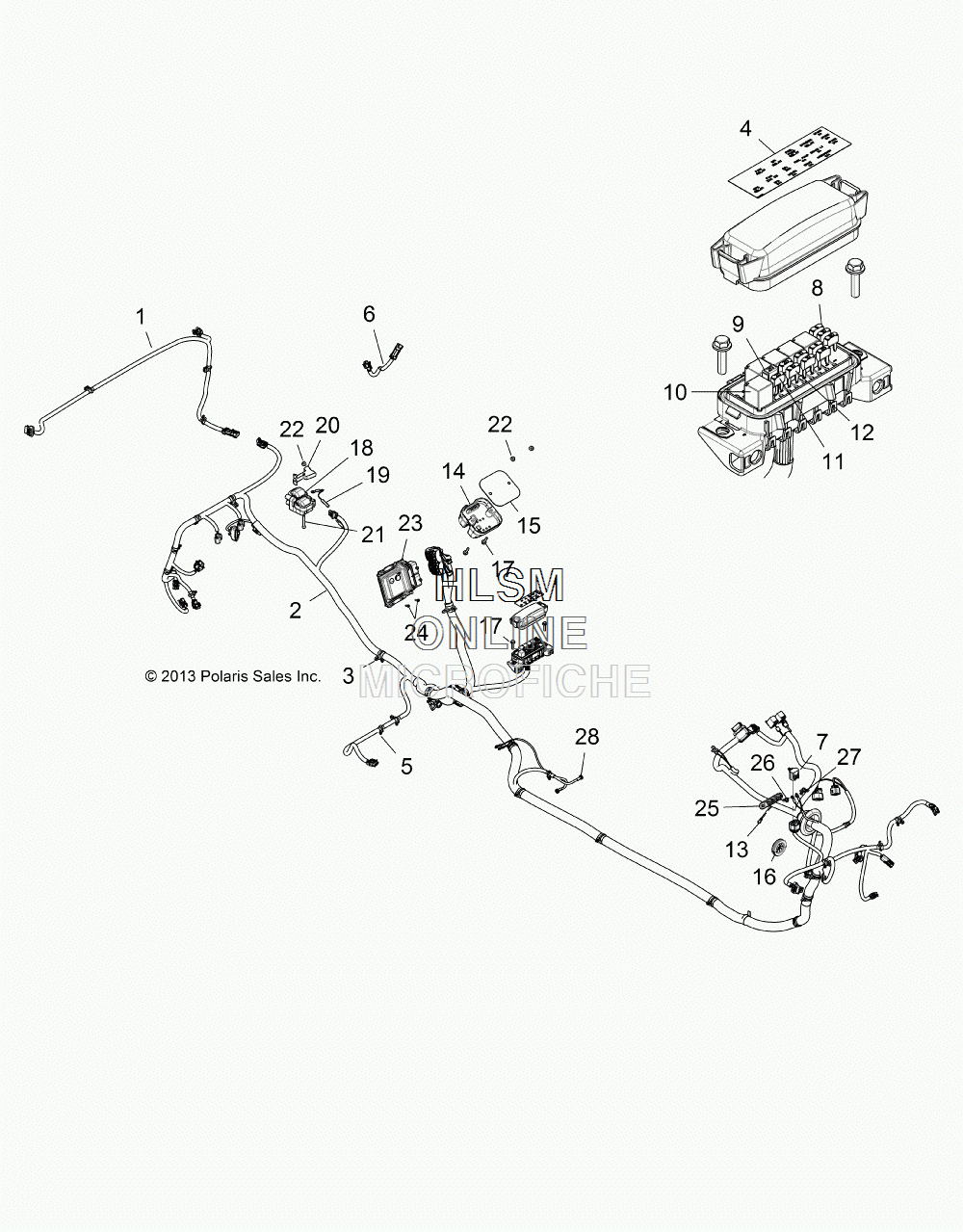

WIRE HARNESSES для Polaris RZR XP 4 1000/PS TITANIUM MATTE METALLIC [Z146T1EAM] - 2014 года выпуска
-
№АртикулНазвание
-
12412623 HARNESS, BOXHARNESS, BOX
-
22412898 HARNESS, CHASSIS (INCL. 3-5,7-13)HARNESS, CHASSIS (INCL. 3-5,7-13)
-
37081916 CLIP, DOUBLE CABLE TIECLIP, DOUBLE CABLE TIE
-
47179353 LABEL, FUSE BOXLABEL, FUSE BOX
-
57081496 CLIP, ROUTINGCLIP, ROUTING
-
64014319 WIRE, THERMISTER LEADWIRE, THERMISTER LEAD
-
74012170 COVER, DIAGNOSTIC, W/CLIPCOVER, DIAGNOSTIC, W/CLIP
-
84011652 FUSE, 5 AMPFUSE, 5 AMP
-
94011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
104011283 RELAYRELAY
-
112434017 FUSE, 20 AMPFUSE, 20 AMP
-
122434016 FUSE, 10 AMPFUSE, 10 AMP
-
132412443 LED, PANEL MOUNTLED, PANEL MOUNT
-
144014029 REGULATOR, 3 PHASE, 50 AMP, SERIESREGULATOR, 3 PHASE, 50 AMP, SERIES
-
155254970 PLATE, HEAT SINK, REGULATORPLATE, HEAT SINK, REGULATOR
-
165414440 GROMMETGROMMET
-
177518533 BOLT, FLANGE, BLACKBOLT, FLANGE, BLACK
-
184010425 COIL, EFICOIL, EFI
-
194014422 JUMPER ,COIL GROUNDJUMPER ,COIL GROUND
-
205436577 SPACER, COIL MOUNTSPACER, COIL MOUNT
-
217518780 SCREWSCREW
-
227547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
234014125 ECM, NO STARTECM, NO START
-
247519091 SCREWSCREW
-
254011892 BLOCK, TERMINAL, 3 POSTBLOCK, TERMINAL, 3 POST
-
267518196 SCREWSCREW
-
277547341 NUTNUT
-
285414942 GROMMETGROMMET
