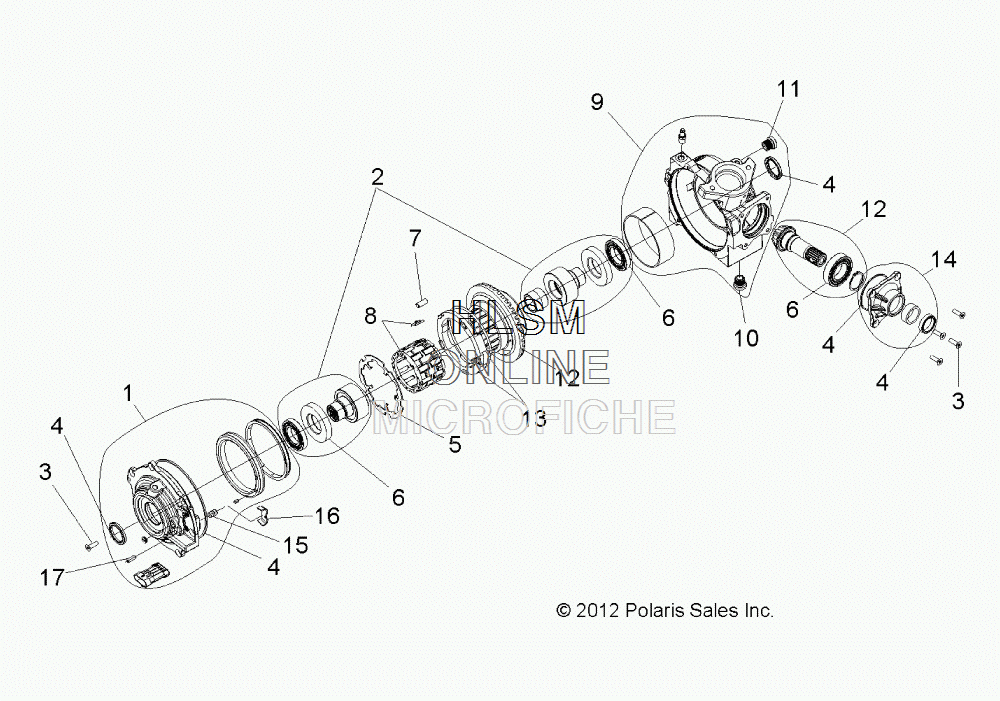

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SCRAMBLER 1000 XP HO EPS INTL(2014) [A14GH9EFW] - 2014 года выпуска
-
№АртикулНазвание
-
--1333053 ASM., GEARCASE, FRONT DRIVEASM., GEARCASE, FRONT DRIVE
-
13235432 ASM., OUTPUT COVERASM., OUTPUT COVER
-
23235169 KIT, HUBKIT, HUB
-
33235433 KIT, FASTENERKIT, FASTENER
-
43235434 KIT, SEAL REPAIRKIT, SEAL REPAIR
-
53234407 PLATE, ARMATUREPLATE, ARMATURE
-
63235435 KIT, BEARINGSKIT, BEARINGS
-
73234393 KIT, ROLLER (INCL. FULL ROLLER SET OF 20)KIT, ROLLER (INCL. FULL ROLLER SET OF 20)
-
83234907 ASM., ROLL CAGE (INCL. 22 CLIPS)ASM., ROLL CAGE (INCL. 22 CLIPS)
-
93235436 KIT, GEARCASE ASM.KIT, GEARCASE ASM.
-
102203738 PLUG, DRAINPLUG, DRAIN
-
112203739 PLUG, FILLPLUG, FILL
-
123235437 KIT, GEAR HOUSING AND PINION GEAR ASMKIT, GEAR HOUSING AND PINION GEAR ASM
-
133234908 KIT, SPRINGKIT, SPRING
-
143235438 KIT, INPUT COVERKIT, INPUT COVER
-
152203732 BUTTON, THRUSTBUTTON, THRUST
-
162203733 BUTTON, THRUST, DUBUTTON, THRUST, DU
-
172203731 SCREW, SETSCREW, SET
