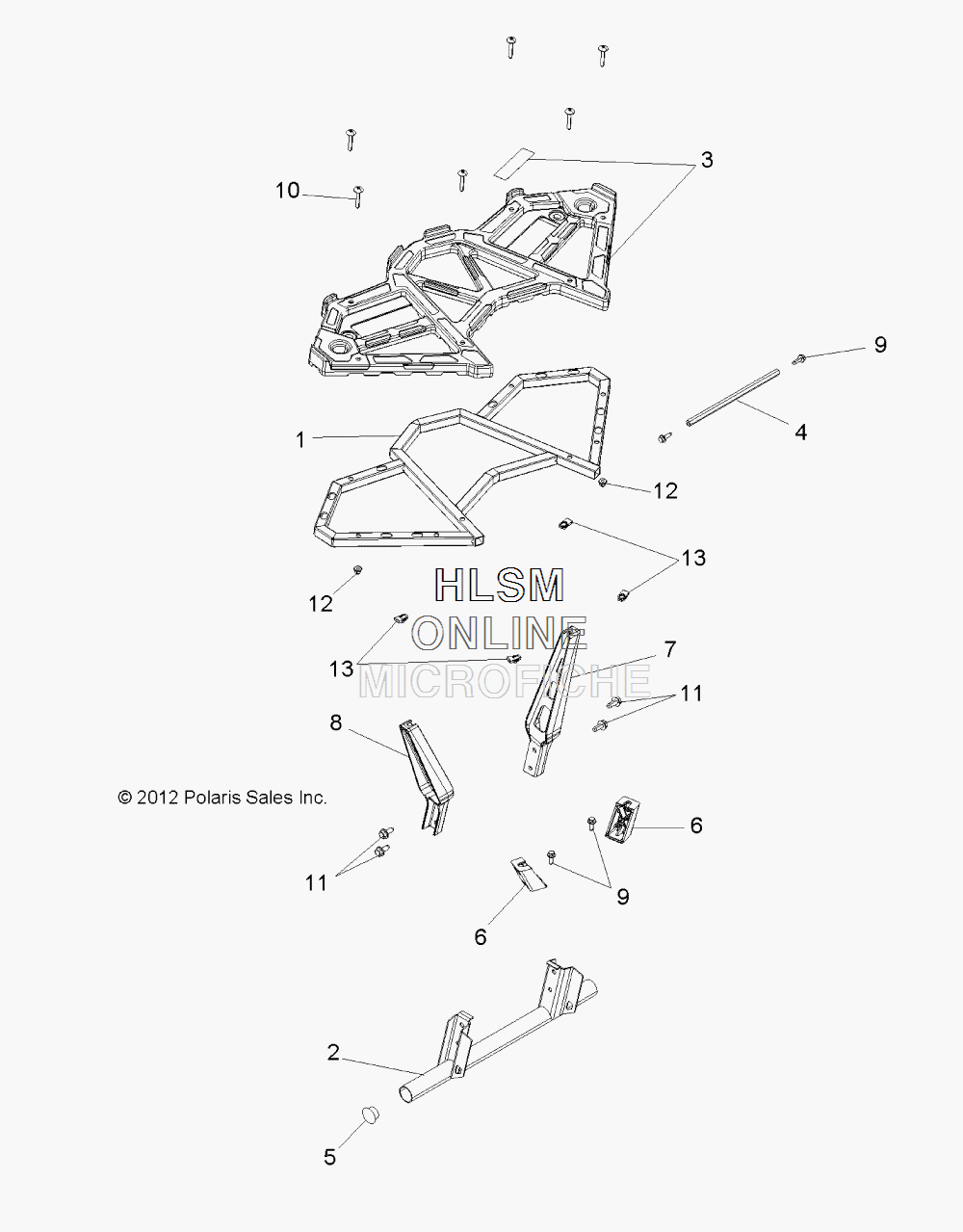

RACK - REAR для Polaris SCRAMBLER 1000 XP HO EPS INTL(2014) [A14GH9EFW] - 2014 года выпуска
-
№АртикулНазвание
-
11018901-329 RACK, REAR, BLACKRACK, REAR, BLACK
-
21018900-067 BAR, GRAB, BLACKBAR, GRAB, BLACK
-
32634805-070 ASM., RACK, REAR, BLACK (INCL. WARNING DECAL)ASM., RACK, REAR, BLACK (INCL. WARNING DECAL)
-
45138253 TUBE, RACK SUPPORT STRAPTUBE, RACK SUPPORT STRAP
-
55450305 PLUG, END CAPPLUG, END CAP
-
65632708 BRACKET, RACK SUPPORT, FRONTBRACKET, RACK SUPPORT, FRONT
-
75632709 BRACKET RACK SUPPORT, REAR, LEFT HANDBRACKET RACK SUPPORT, REAR, LEFT HAND
-
85632710 BRACKET RACK SUPPORT, REAR, RIGHT HANDBRACKET RACK SUPPORT, REAR, RIGHT HAND
-
97518529 SCREWSCREW
-
107519001 SCREWSCREW
-
117519780 SCREWSCREW
-
127547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137547366 CLIP, UCLIP, U
