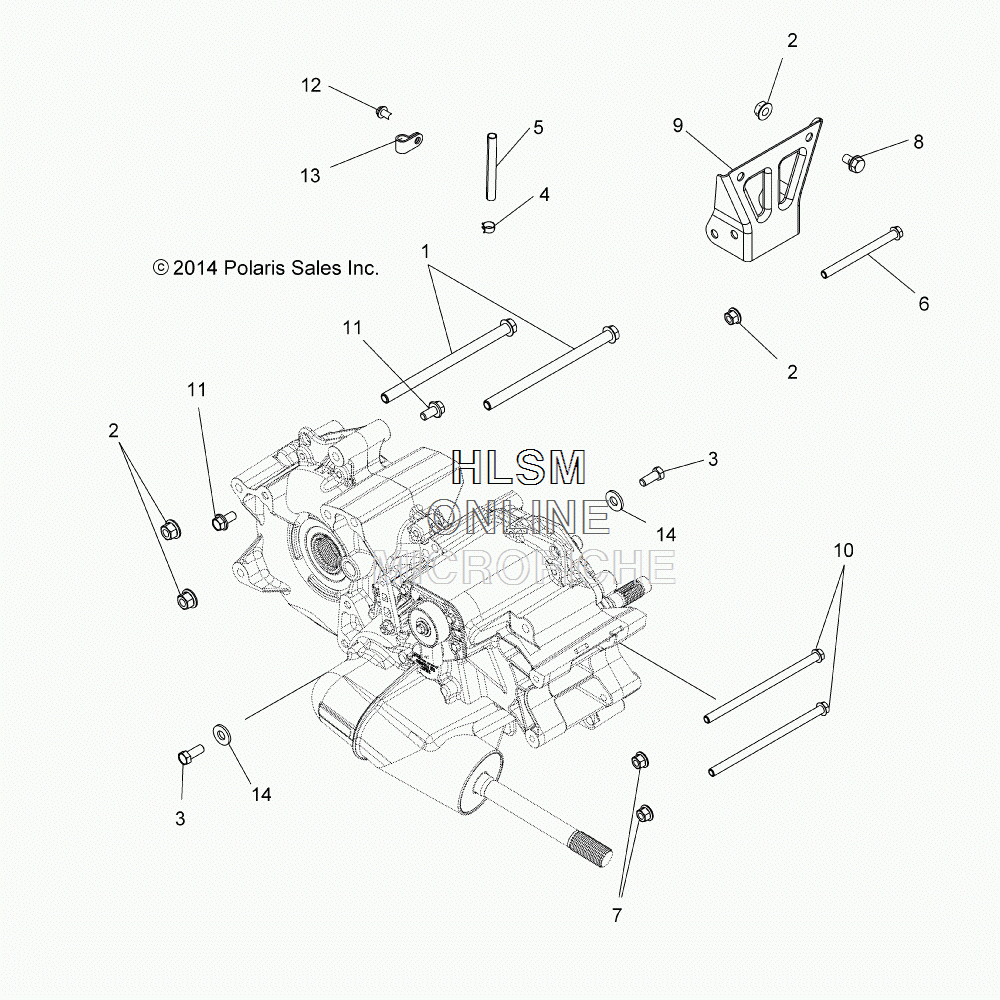

GEARCASE - MAIN - MOUNTING для Polaris SPORTSMAN 570 FOREST - (BRIGHT WHITE) [A14MH57FJ] - 2014 года выпуска
![](/wa-data/public/shop/sheme/polaris/atv/73df114c-0342-4cf8-aa00-52f9c07ef36e.gif)
-
№АртикулНазвание
-
17518365 BOLTBOLT
-
27547180 NUT, FLANGENUT, FLANGE
-
37518006 SCREWSCREW
-
47080307 CLAMP, HOSECLAMP, HOSE
-
58450003-1525 LINE, FUELLINE, FUEL
-
67517646 SCREWSCREW
-
77542343 NUT, FLANGENUT, FLANGE
-
87515522 BOLTBOLT
-
95254309-329 SUPPORT, TRANSMISSION, UPPER, BLACKSUPPORT, TRANSMISSION, UPPER, BLACK
-
107518648 SCREWSCREW
-
117517632 SCREWSCREW
-
127512084 SCREWSCREW
-
137080693 CLAMPCLAMP
-
147556242 WASHERWASHER
