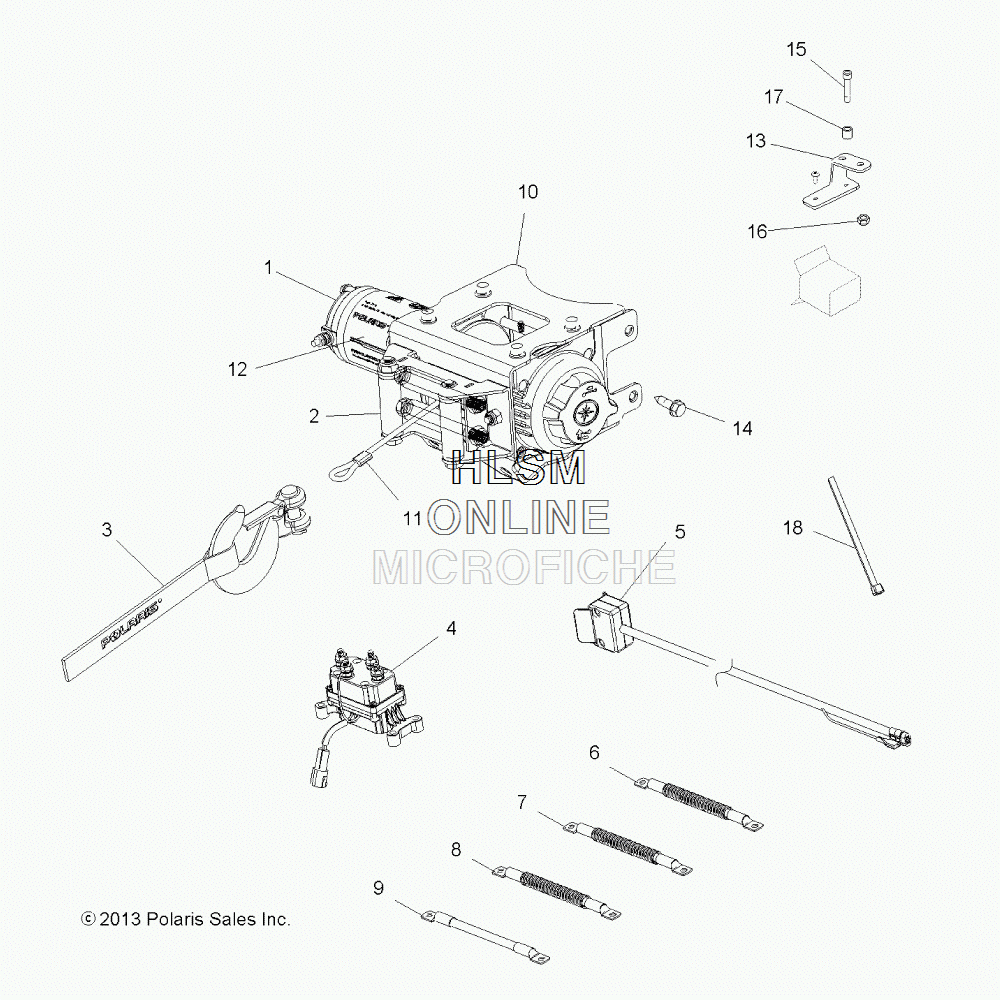

WINCH для Polaris SPORTSMAN 570 FOREST - (BRIGHT WHITE) [A14MH57FJ] - 2014 года выпуска
-
№АртикулНазвание
-
12204631 WINCH, POLARIS, 2.5WINCH, POLARIS, 2.5
-
22411848 ROLLER, FAIRLEADROLLER, FAIRLEAD
-
32411836 HOOK, LATCHHOOK, LATCH
-
44013465 CONTACTORCONTACTOR
-
47515179 SCREW (CONTACTOR MOUNTING)SCREW (CONTACTOR MOUNTING)
-
54013542 SWITCH, HANDLEBARSWITCH, HANDLEBAR
-
64013468-440 CABLE, WINCH, YELLOW, 6 GACABLE, WINCH, YELLOW, 6 GA
-
74013469-440 CABLE, WINCH, BLUE, 6 GACABLE, WINCH, BLUE, 6 GA
-
84013470-485 CABLE, POWER, WINCH, BLACK, 6 GACABLE, POWER, WINCH, BLACK, 6 GA
-
94013471-485 CABLE, POWER, WINCH, RED, 6 GACABLE, POWER, WINCH, RED, 6 GA
-
101018438 MOUNT, WINCHMOUNT, WINCH
-
112878890 CABLE, WINCH, STEELCABLE, WINCH, STEEL
-
127177991 DECAL, 2500 WINCHDECAL, 2500 WINCH
-
135250830 BRACKET, SWITCHBRACKET, SWITCH
-
147518514 BOLTBOLT
-
157519220 SCREWSCREW
-
167546703 NUT, NYLOKNUT, NYLOK
-
175334334 SPACERSPACER
-
187080138 CABLE TIECABLE TIE
