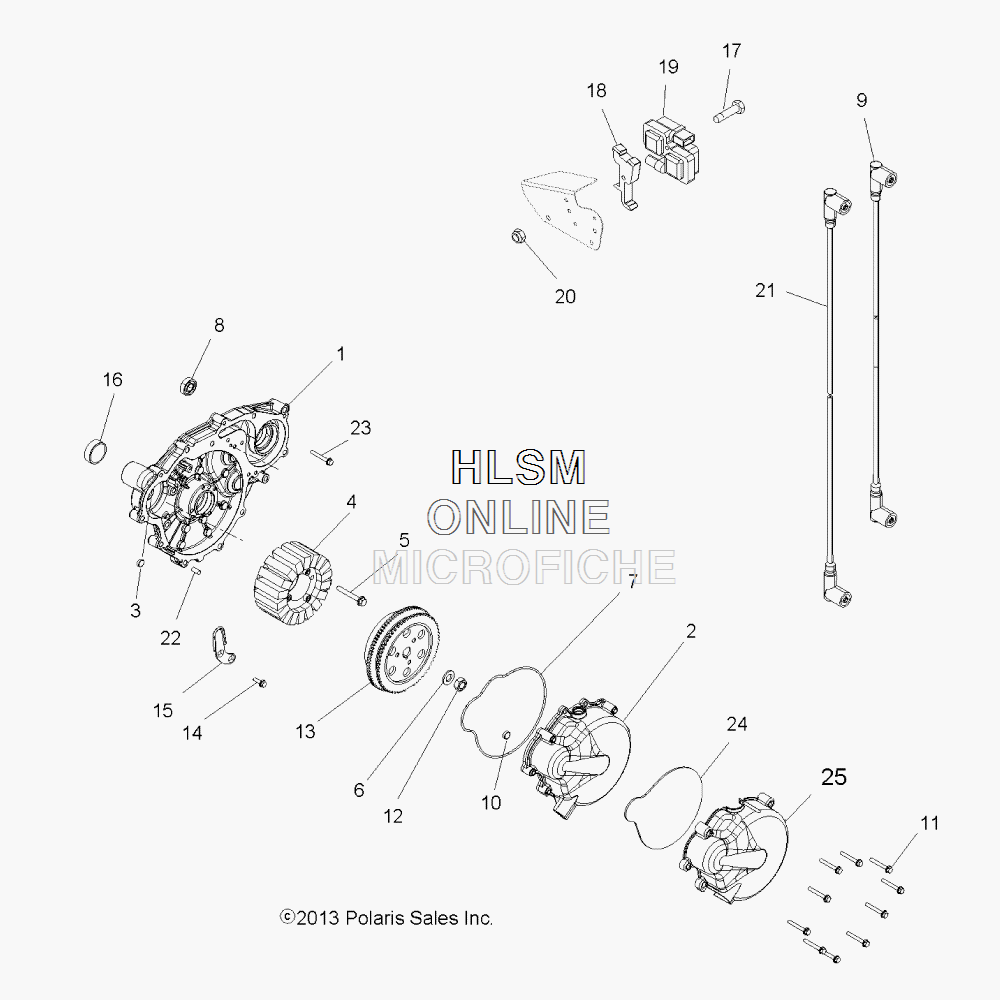

IGNITION SYSTEM для Polaris SPORTSMAN 800 EFI 6X6 - SAGE BRUSH GREEN METALLIC [A14CF76AA] - 2014 года выпуска
-
№АртикулНазвание
-
11204712 ASM., ENGINE COVER, MAGNETO (INCL. 3,22)ASM., ENGINE COVER, MAGNETO (INCL. 3,22)
-
21204144 ASM., COVER, STATOR, EFI (INCL. BUSHING)ASM., COVER, STATOR, EFI (INCL. BUSHING)
-
44014034 STATORSTATOR
-
57517848 SCREWSCREW
-
67555907 WASHERWASHER
-
75413972 SEAL, STATOR COVERSEAL, STATOR COVER
-
85412455 SEAL, OILSEAL, OIL
-
94012438 WIRE, SPARK PLUGWIRE, SPARK PLUG
-
103514553 BUSHINGBUSHING
-
117517950 SCREWSCREW
-
127547213 NUTNUT
-
134013968 FLYWHEELFLYWHEEL
-
147517598 SCREWSCREW
-
155256627 BRACKET, STATOR, HOLDDOWNBRACKET, STATOR, HOLDDOWN
-
165412881 SEAL, FLANGEDSEAL, FLANGED
-
177515156 SCREWSCREW
-
185436577 SPACER, COIL MOUNTSPACER, COIL MOUNT
-
192876049 KIT, IGNITION COIL (INCL. 17-20)KIT, IGNITION COIL (INCL. 17-20)
-
207542122 NUT, NYLOKNUT, NYLOK
-
214012439 WIRE, SPARK PLUGWIRE, SPARK PLUG
-
227661946 PIN, DOWELPIN, DOWEL
-
237516818 SCREWSCREW
-
245813050 COVER, SOUND DAMPENINGCOVER, SOUND DAMPENING
-
255436652 COVER, STATOR, OUTERCOVER, STATOR, OUTER
