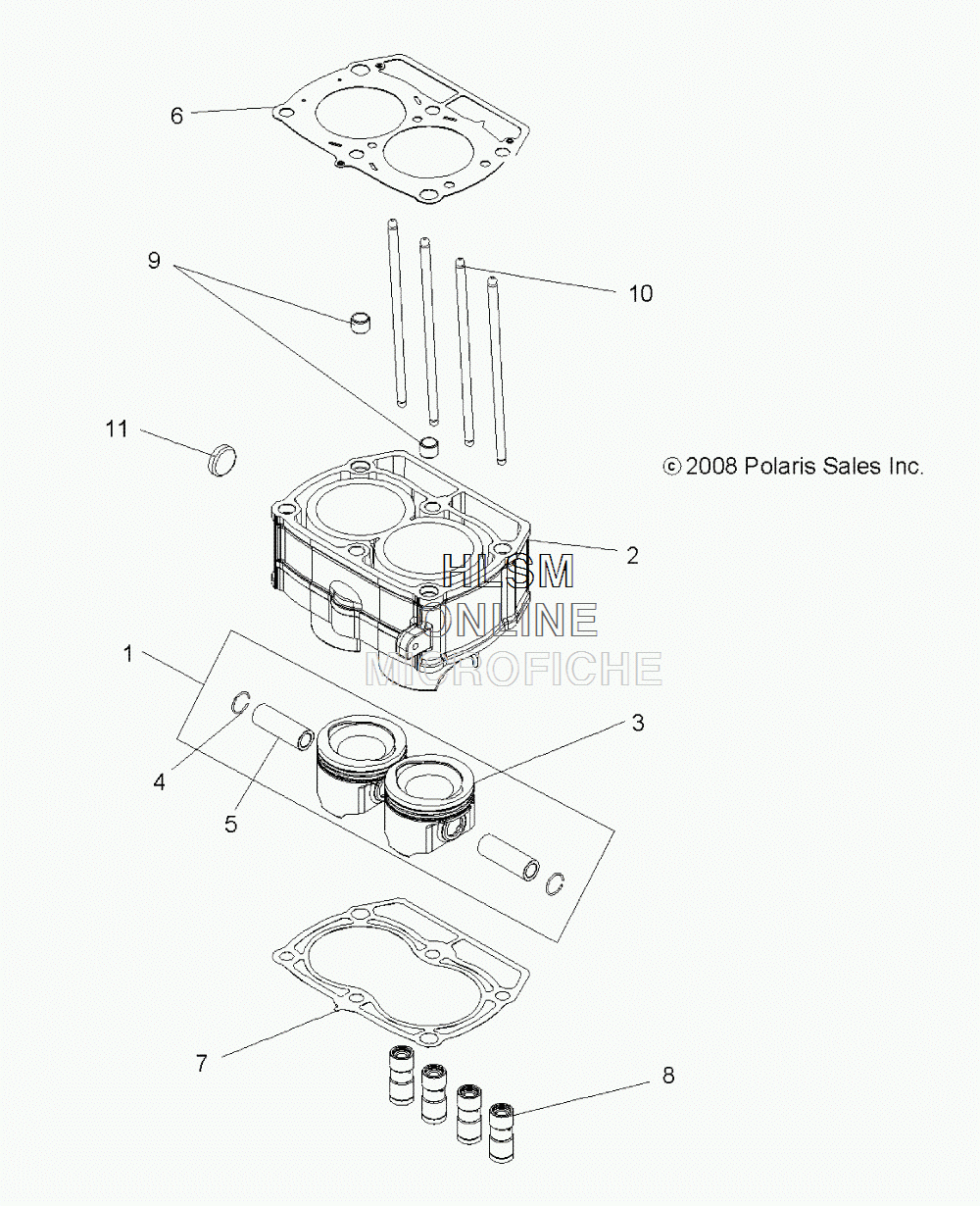

PISTON AND CYLINDER для Polaris SPORTSMAN 800 EFI 6X6 - SAGE BRUSH GREEN METALLIC [A14CF76AA] - 2014 года выпуска
-
№АртикулНазвание
-
12202917 KIT, PISTON (INCL. 3-5)KIT, PISTON (INCL. 3-5)
-
22204393 KIT, CYLINDER (INCL. CYLINDER,9,11)KIT, CYLINDER (INCL. CYLINDER,9,11)
-
32202920 KIT, PISTON RING (INCL. 1 TOP, MIDDLE, BOTTOM, RING)KIT, PISTON RING (INCL. 1 TOP, MIDDLE, BOTTOM, RING)
-
43021510 CIRCLIP, PISTONCIRCLIP, PISTON
-
65254357 GASKET, HEAD, SINGLE LAYERGASKET, HEAD, SINGLE LAYER
-
75247360 GASKET, BASEGASKET, BASE
-
85137206 LIFTER, VALVELIFTER, VALVE
-
97661175 DOWELDOWEL
-
105138254 PUSHRODPUSHROD
-
117051534 PLUGPLUG
