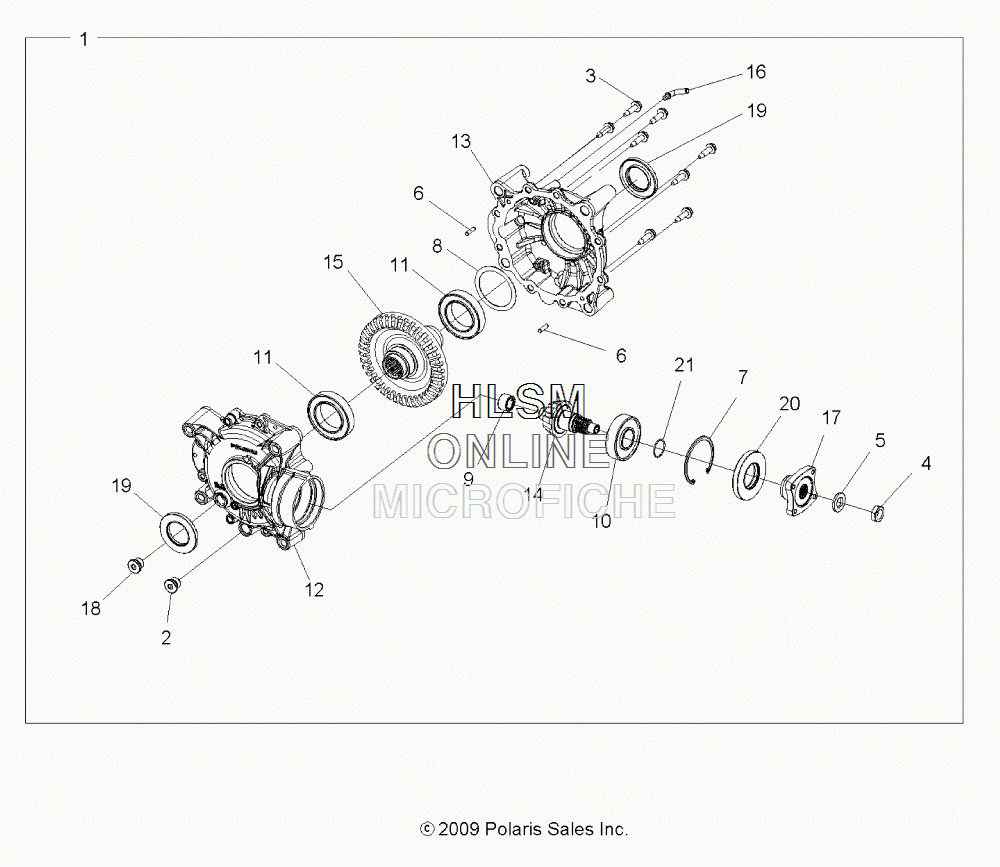

GEARCASE - REAR - INTERNAL COMPONENTS для Polaris SCRAMBLER 1000 XP EU (WHITE LIGHTNING) [A15SVE95FW] - 2015 года выпуска`
-
№АртикулНазвание
-
11332802 ASM., DRIVE, REAR (INCL. ALL)ASM., DRIVE, REAR (INCL. ALL)
-
23234756 PLUG, SOCKET HEAD W/MAGNETPLUG, SOCKET HEAD W/MAGNET
-
33234898 SCREWSCREW
-
43234776 NUT, HEXNUT, HEX
-
53234777 WASHER, LOCKINGWASHER, LOCKING
-
63234330 PIN, SOLIDPIN, SOLID
-
73234158 RING, RETAININGRING, RETAINING
-
83233581 SHIMSHIM
-
93234799 BEARING, NEEDLEBEARING, NEEDLE
-
103233714 BEARING, BALLBEARING, BALL
-
113233268 BEARING, BALLBEARING, BALL
-
123234926 CASE, MAINCASE, MAIN
-
133234937 KIT, CASE, LEFT HAND (INCL. 6)KIT, CASE, LEFT HAND (INCL. 6)
-
143234798 SHAFT, PINION, 10TSHAFT, PINION, 10T
-
153234792 GEAR, 37TGEAR, 37T
-
163234230 TUBE, VENTTUBE, VENT
-
173234782 COUPLERCOUPLER
-
183234755 PLUG, SOCKET HEAD (CHECK/FILL)PLUG, SOCKET HEAD (CHECK/FILL)
-
193235052 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
203235051 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
213234785 O-RINGO-RING
