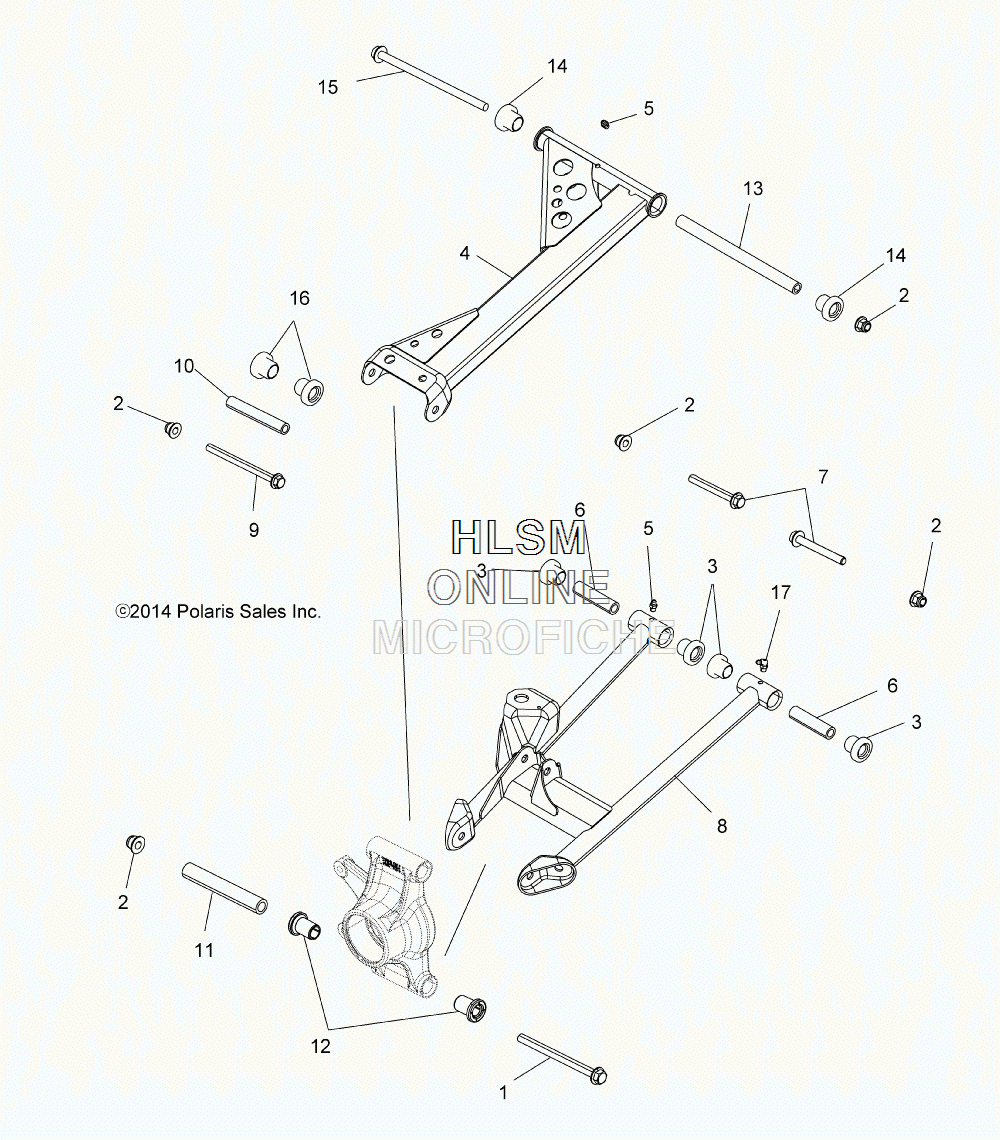

SUSPENSION - REAR для Polaris SCRAMBLER 1000 XP EU (WHITE LIGHTNING) [A15SVE95FW] - 2015 года выпуска
-
№АртикулНазвание
-
17518467 BOLT, FLANGEBOLT, FLANGE
-
27547313 NUT, FLANGENUT, FLANGE
-
31543367 ASM., BUSHING, HD,W/SEALASM., BUSHING, HD,W/SEAL
-
41017216-293 ARM, CONTROL, UPPER, REAR, LEFT HAND, INDY REDARM, CONTROL, UPPER, REAR, LEFT HAND, INDY RED
-
41017217-293 ARM, CONTROL, UPPER, REAR, RIGHT HAND, INDY REDARM, CONTROL, UPPER, REAR, RIGHT HAND, INDY RED
-
57080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
65137346 SHAFT, A-ARMSHAFT, A-ARM
-
77518466 BOLT, FLANGEBOLT, FLANGE
-
81019410-293 ARM, CONTROL, LOWER, REAR, LEFT HAND, INDY REDARM, CONTROL, LOWER, REAR, LEFT HAND, INDY RED
-
81019411-293 ARM, CONTROL, LOWER, REAR, RIGHT HAND, INDY REDARM, CONTROL, LOWER, REAR, RIGHT HAND, INDY RED
-
97518675 BOLT, FLANGEBOLT, FLANGE
-
105137590 SHAFT, PIVOTSHAFT, PIVOT
-
115136473 SHAFT, A-ARM, LOWER CONTROL ARMSHAFT, A-ARM, LOWER CONTROL ARM
-
125437651 BUSHING, LOWER CONTROL ARMBUSHING, LOWER CONTROL ARM
-
135137594 SHAFT, PIVOTSHAFT, PIVOT
-
141543326 ASM., BUSHING, HD,W/SEALASM., BUSHING, HD,W/SEAL
-
157518472 BOLTBOLT
-
165439874 BUSHINGBUSHING
-
177080510 FITTING - ZERK, 90 DEGREEFITTING - ZERK, 90 DEGREE
