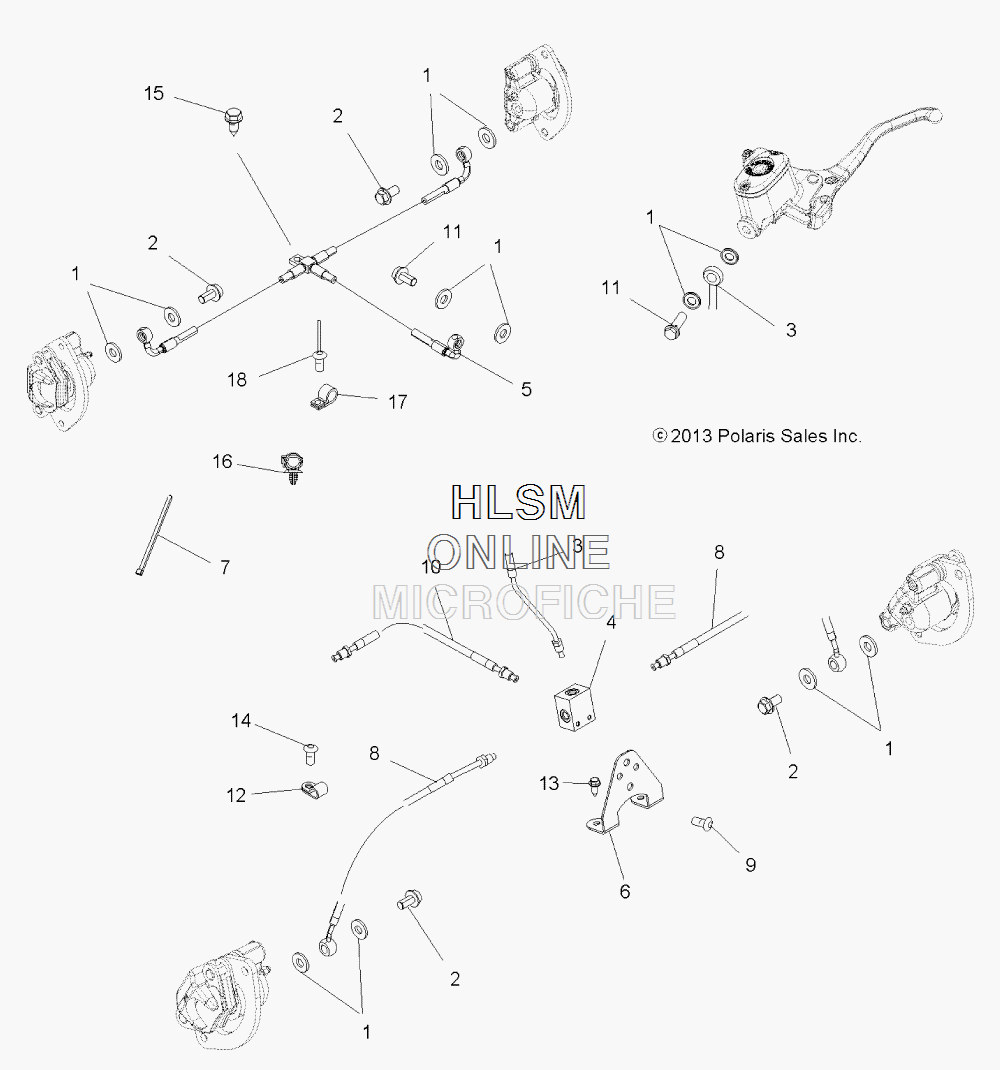

BRAKE LINES для Polaris SCRAMBLER XP 1000 (WHITE LIGHTNING) [A15SVE95AW] - 2015 года выпуска
-
№АртикулНазвание
-
15413212 SEALSEAL
-
21910499 BOLT, BANJOBOLT, BANJO
-
31911670 LINE, BRAKE, POD TO JB (BUILT 8/25/14 AND BEFORE)LINE, BRAKE, POD TO JB (BUILT 8/25/14 AND BEFORE)
-
31911393 LINE, BRAKE, POD TO JB (BUILT 8/26/14 AND AFTER)LINE, BRAKE, POD TO JB (BUILT 8/26/14 AND AFTER)
-
47052372 FITTING, CROSSFITTING, CROSS
-
51911424 LINE, BRAKE, REAR, 2-UPLINE, BRAKE, REAR, 2-UP
-
65257768 BRACKET, JUNCTION BLOCKBRACKET, JUNCTION BLOCK
-
77080138 CABLE TIECABLE TIE
-
81911668 LINE, BRAKE, CALIPER, FRONTLINE, BRAKE, CALIPER, FRONT
-
97512024 SCREWSCREW
-
101911669 LINE, BRAKE, JB TO FT MCLINE, BRAKE, JB TO FT MC
-
111910958 BOLT, BANJOBOLT, BANJO
-
127081246 CLAMP, WIRE/TUBECLAMP, WIRE/TUBE
-
137518513 SCREWSCREW
-
147518176 SCREWSCREW
-
157518529 SCREWSCREW
-
167670116 CLIP, ROUTINGCLIP, ROUTING
-
177080499 CLAMP, CABLECLAMP, CABLE
-
187621330 RIVETRIVET
