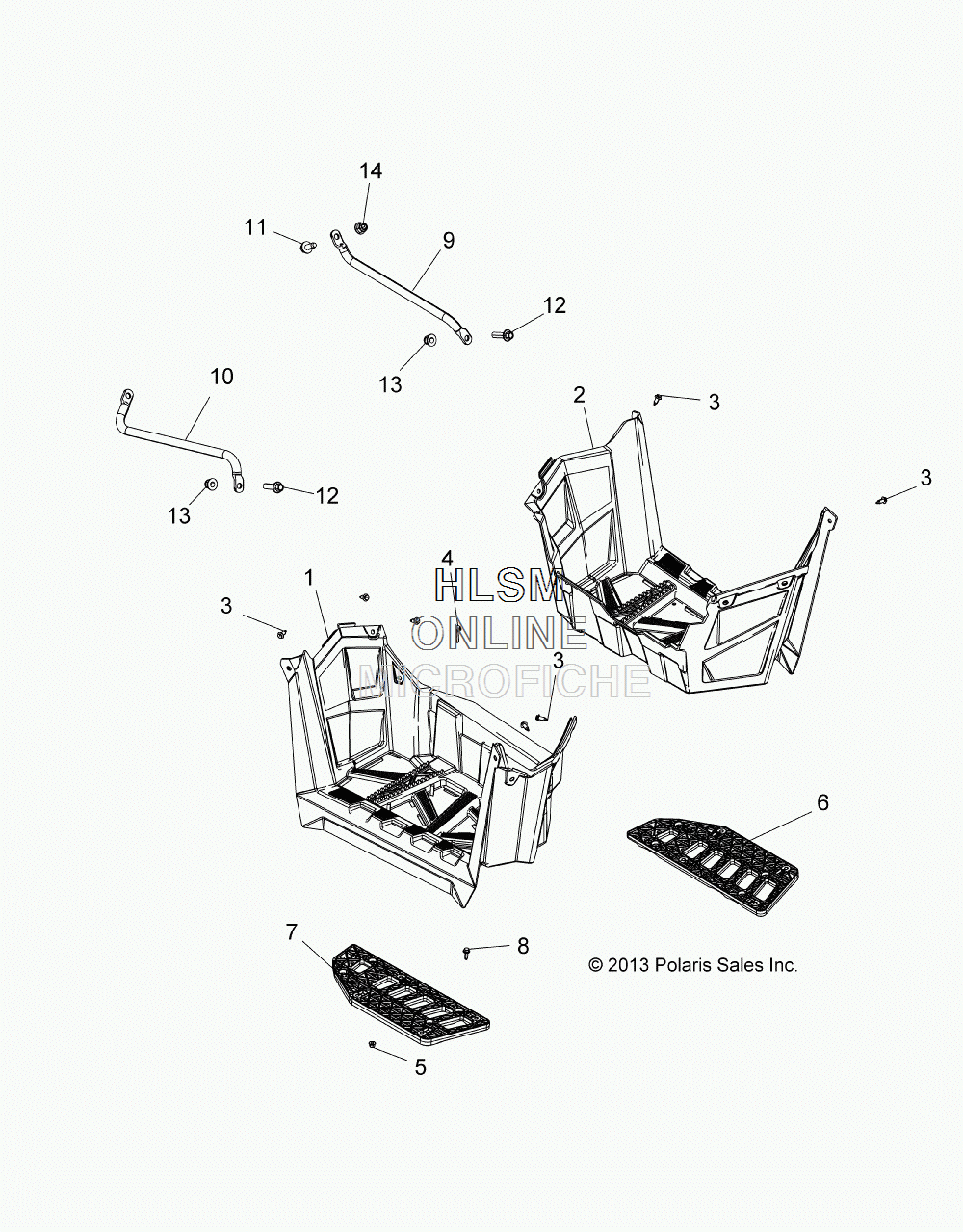

FOOTRESTS для Polaris SCRAMBLER XP 1000 (WHITE LIGHTNING) [A15SVE95AW] - 2015 года выпуска
-
№АртикулНазвание
-
15439666-070 FOOTWELL, RIGHT HAND, BLACKFOOTWELL, RIGHT HAND, BLACK
-
25439665-070 FOOTWELL, LEFT HAND, BLACKFOOTWELL, LEFT HAND, BLACK
-
37661855 RIVETRIVET
-
47519202 SCREW, FLANGESCREW, FLANGE
-
57547274 NUT, FLANGENUT, FLANGE
-
65437600 SUPPORT, FOOTPAD, LEFT HANDSUPPORT, FOOTPAD, LEFT HAND
-
75437601 SUPPORT, FOOTPAD, RIGHT HANDSUPPORT, FOOTPAD, RIGHT HAND
-
87518529 SCREWSCREW
-
95337646-067 TUBE, FOOTWELL SUPPORT, LEFT HAND, BLACKTUBE, FOOTWELL SUPPORT, LEFT HAND, BLACK
-
105337647-067 TUBE, FOOTWELL SUPPORT, RIGHT HAND, BLACKTUBE, FOOTWELL SUPPORT, RIGHT HAND, BLACK
-
117518555 BOLT, FLANGEBOLT, FLANGE
-
127517696 SCREWSCREW
-
137547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
147547317 NUT, FLANGENUT, FLANGE
