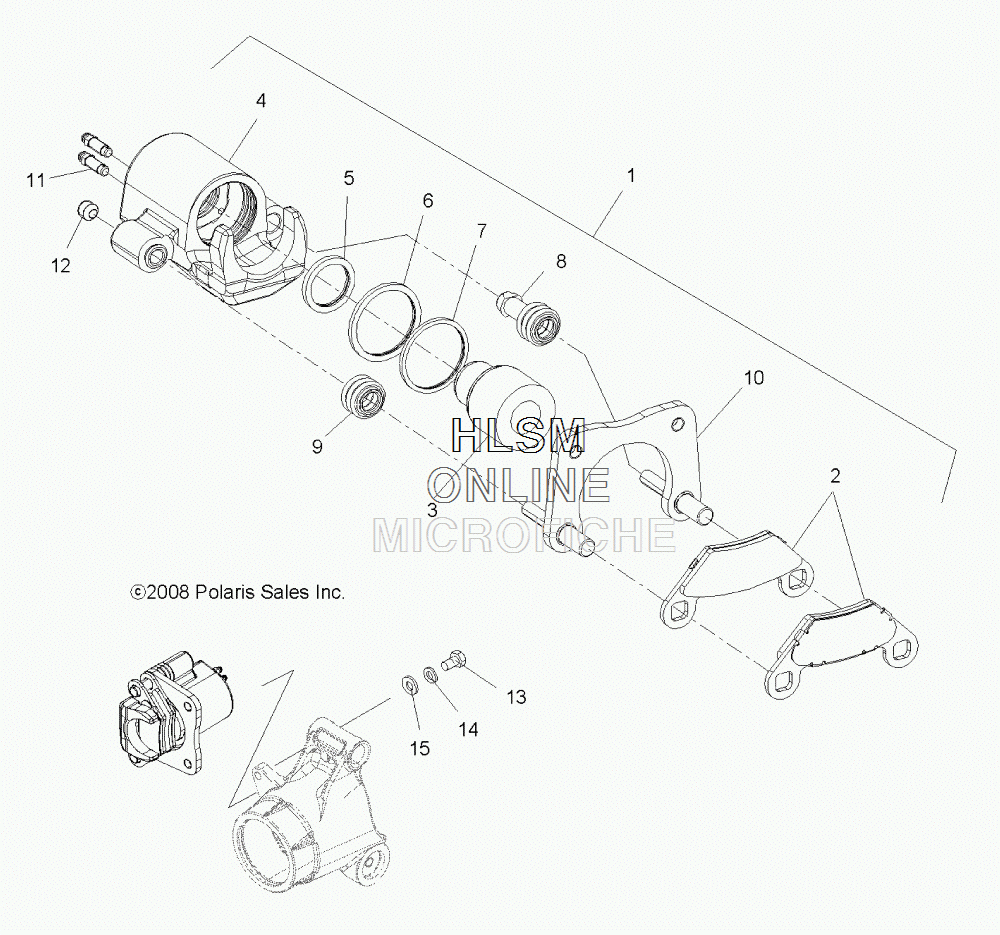

BRAKE - REAR CALIPER для Polaris SPORTSMAN 570 EFI/EPS FOREST TRACTOR SAGE BRUSH GREEN METALLIC [A15SES57CA] - 2015 года выпуска
-
№АртикулНазвание
-
11911415 ASM., CALIPER, DUAL INPUT (INCL. 1-12)ASM., CALIPER, DUAL INPUT (INCL. 1-12)
-
22204088 KIT, BRAKE PAD, REAR (INCL. 2 PADS)KIT, BRAKE PAD, REAR (INCL. 2 PADS)
-
35136698 PISTON, BRAKE, STEPPISTON, BRAKE, STEP
-
55410766 RING, SQUARE, MOLDEDRING, SQUARE, MOLDED
-
65412010 SEAL, CALIPER, INNERSEAL, CALIPER, INNER
-
75412011 SEAL, CALIPER, OUTERSEAL, CALIPER, OUTER
-
85412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
95412506 BOOT, PIN SEALBOOT, PIN SEAL
-
101911416 ASM., CALIPER MOUNT, REARASM., CALIPER MOUNT, REAR
-
117080352 SCREW, BLEEDERSCREW, BLEEDER
-
127515489 SCREW, SOCKET SETSCREW, SOCKET SET
-
137512457 SCREWSCREW
-
147552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
157556188 WASHER, FLATWASHER, FLAT
