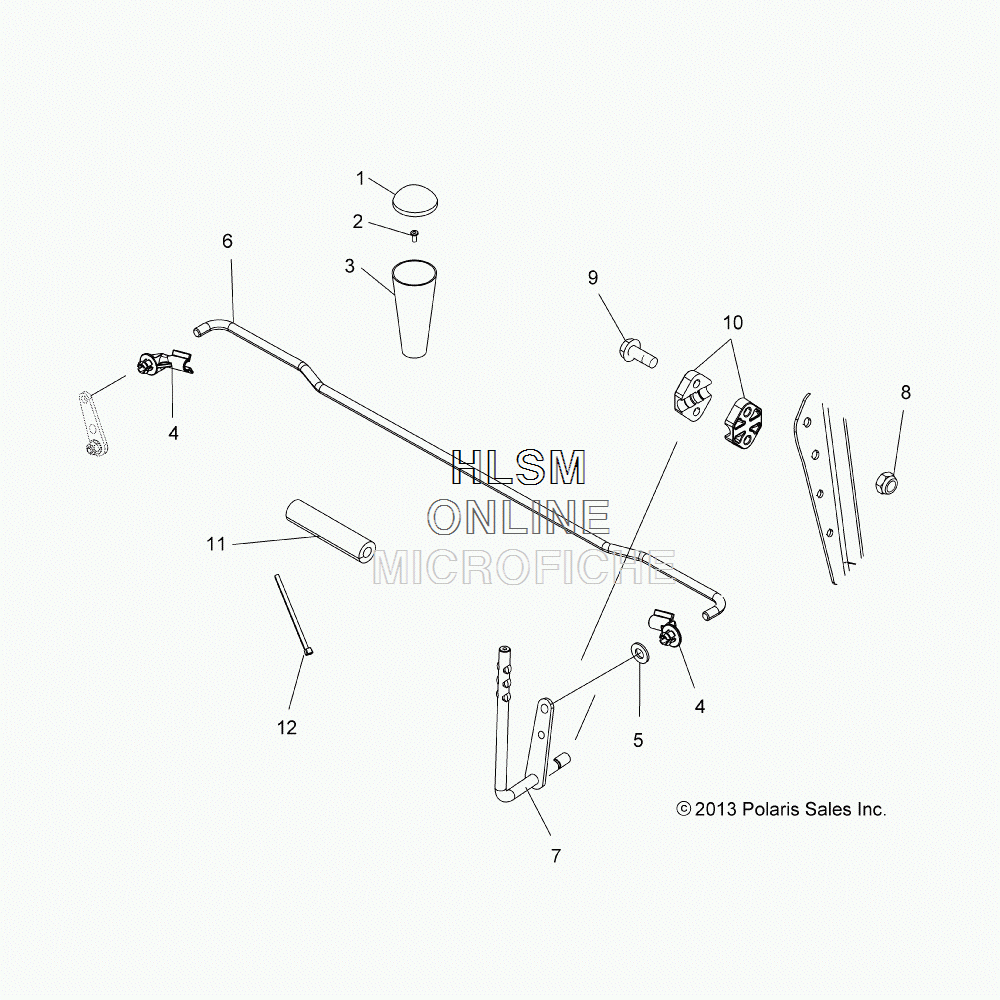

GEAR SELECTOR для Polaris SPORTSMAN 570 EFI/EPS FOREST TRACTOR SAGE BRUSH GREEN METALLIC [A15SES57CA] - 2015 года выпуска
-
№АртикулНазвание
-
15450575 COVER, SHIFTCOVER, SHIFT
-
27512024 SCREWSCREW
-
35414569 KNOB, GEAR SELECTORKNOB, GEAR SELECTOR
-
45436722 BUSHING, SNAP LINKAGEBUSHING, SNAP LINKAGE
-
57558702 WASHER, THRUSTWASHER, THRUST
-
65336845 ROD, SHIFTERROD, SHIFTER
-
71015598-458 HANDLE, SHIFT, MATTE BLACKHANDLE, SHIFT, MATTE BLACK
-
87542324 NUT, NYLOKNUT, NYLOK
-
97518342 BOLTBOLT
-
105435042 MOUNT, GEAR SELECTORMOUNT, GEAR SELECTOR
-
115414141 HOSE, SLITHOSE, SLIT
-
127080138 CABLE TIECABLE TIE
