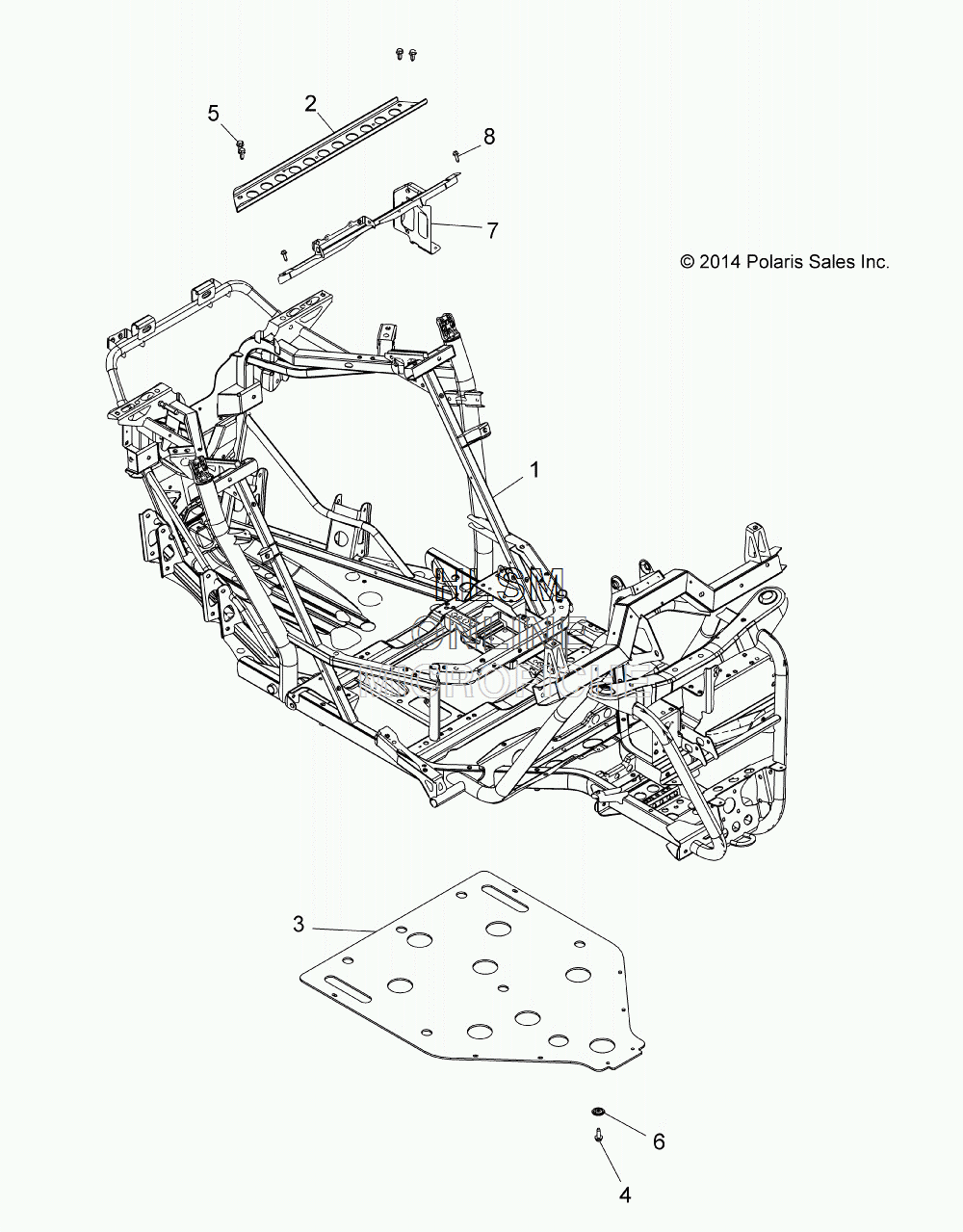

MAIN FRAME AND SKID PLATE для Polaris SPORTSMAN ACE 570 EURO [A15DAA57EEK] - 2015 года выпуска
-
№АртикулНазвание
-
11020900-458 FRAME, MAIN, MATTE BLACKFRAME, MAIN, MATTE BLACK
-
25254980-329 BRACKET, BRACE, REAR, BLACKBRACKET, BRACE, REAR, BLACK
-
35813900 PLATE, SKIDPLATE, SKID
-
47518936 SCREWSCREW
-
57518555 BOLTBOLT
-
67556065 WASHERWASHER
-
71021044-329 BRACE, BOLT, MOUNT, ECUBRACE, BOLT, MOUNT, ECU
-
87518529 SCREWSCREW
