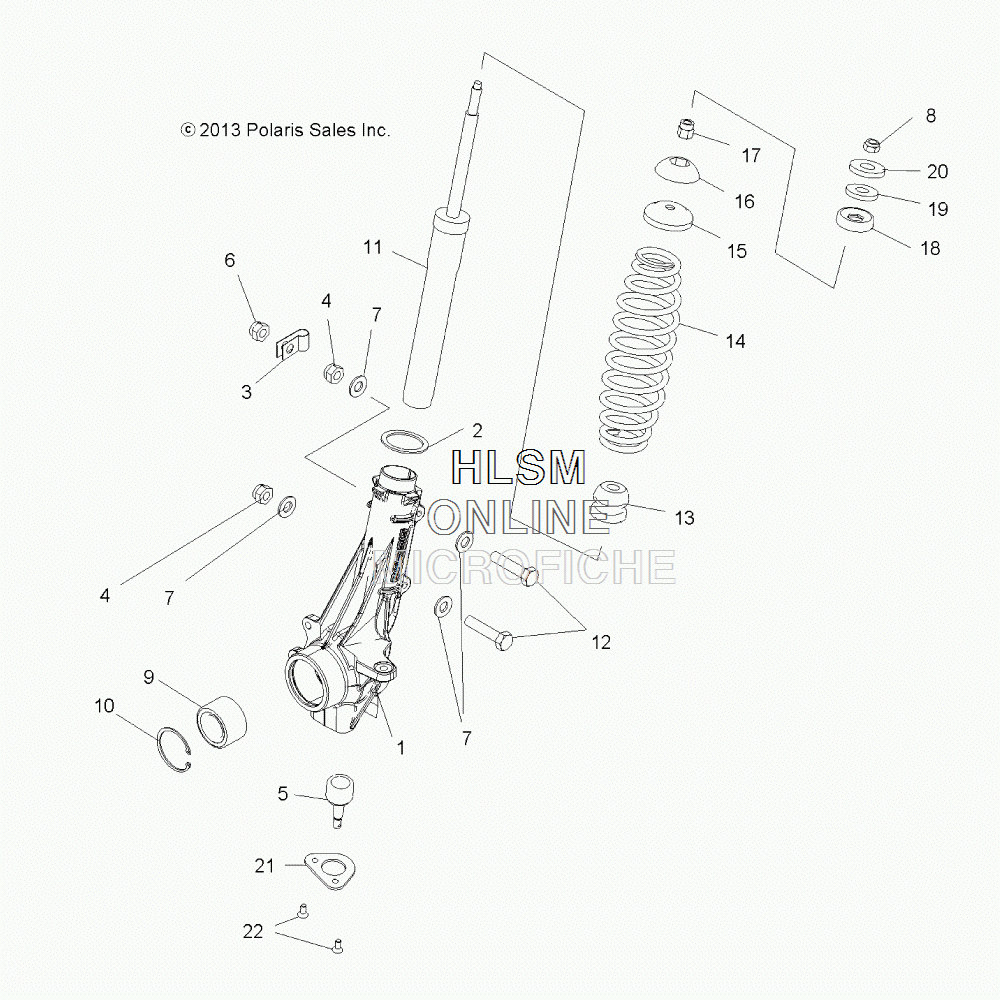

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN ACE 570 EURO [A15DAA57EEK] - 2015 года выпуска
-
№АртикулНазвание
-
11823974 ASM., HUBSTRUT, LEFT HAND, 4X4 (INCL. 5,9,10,21,22,STRUT)ASM., HUBSTRUT, LEFT HAND, 4X4 (INCL. 5,9,10,21,22,STRUT)
-
11823975 ASM., HUBSTRUT, RIGHT HAND, 4X4 (INCL. 5,9,10,21,22,STRUT)ASM., HUBSTRUT, RIGHT HAND, 4X4 (INCL. 5,9,10,21,22,STRUT)
-
25211115 WASHERWASHER
-
37080367 CLAMP, CABLECLAMP, CABLE
-
47542324 NUT, NYLOKNUT, NYLOK
-
57061158 JOINT, BALL GREASELESSJOINT, BALL GREASELESS
-
67542344 NUT, NYLOK, THINNUT, NYLOK, THIN
-
77558402 WASHER, FLATWASHER, FLAT
-
87547104 NUTNUT
-
93514634 BEARING, WHEELBEARING, WHEEL
-
107710507 RING, RETAININGRING, RETAINING
-
117041762 STRUT, FRONTSTRUT, FRONT
-
127512312 BOLTBOLT
-
135412665 BUMPERBUMPER
-
147044267-293 SPRING, COMPRESSION, INDY RED (EJ) (EK)SPRING, COMPRESSION, INDY RED (EJ) (EK)
-
155243364 RETAINER, SPRINGRETAINER, SPRING
-
165432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
175132062 SPACERSPACER
-
185432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
195810291 SPACER, RUBBERSPACER, RUBBER
-
207555749 WASHERWASHER
-
215211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
227512284 BOLT, SOCKETBOLT, SOCKET
