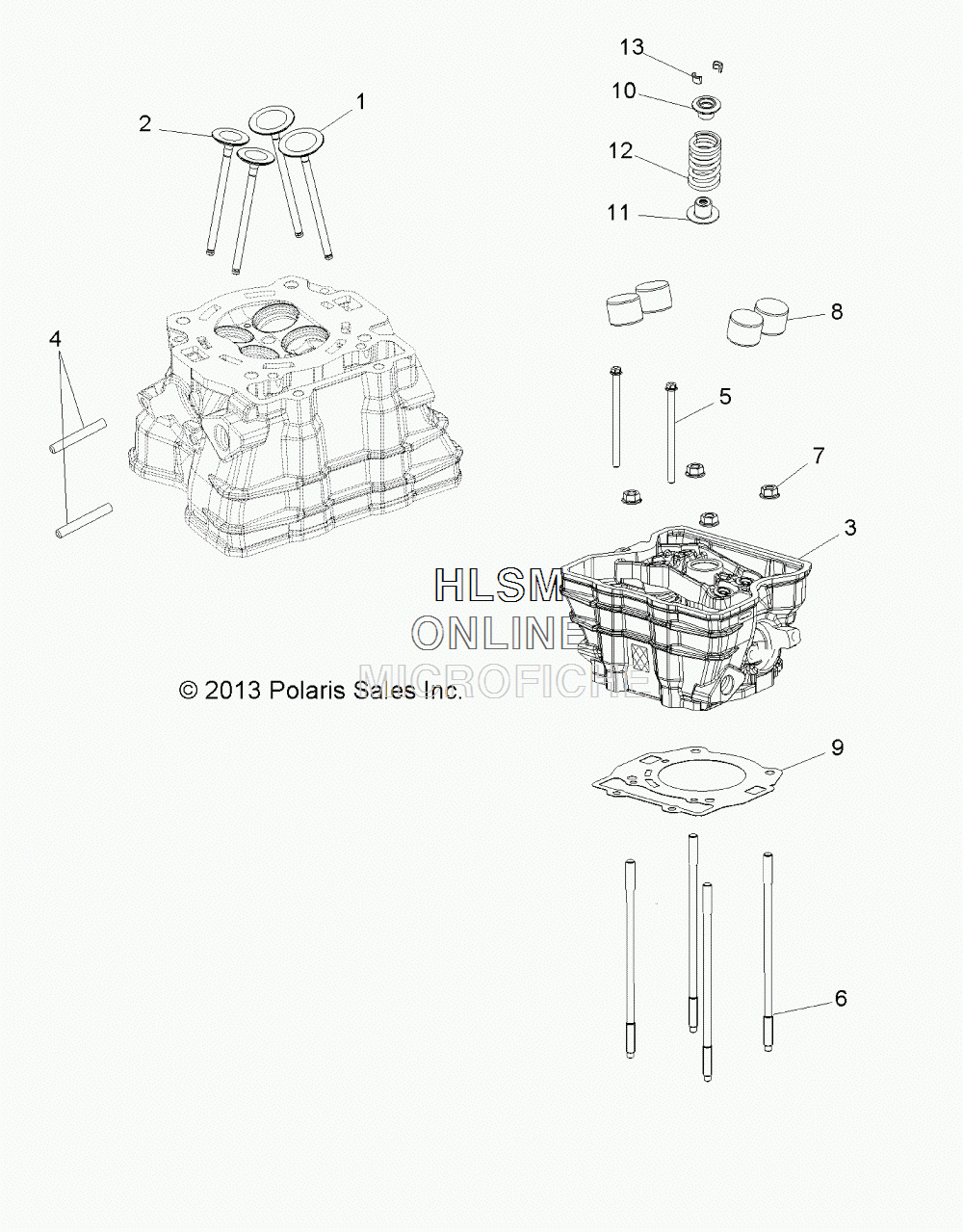

CYLINDER HEAD для Polaris SPORTSMAN ETX SAGE GREEN [A15SEA32AA] - 2015 года выпуска
-
№АртикулНазвание
-
13022391 VALVE, INTAKEVALVE, INTAKE
-
23022392 VALVE, EXHAUSTVALVE, EXHAUST
-
33022407 ASM., CYLINDER HEAD (INCL. HEAD, GUIDES, SEATS)ASM., CYLINDER HEAD (INCL. HEAD, GUIDES, SEATS)
-
45132040 STUDSTUD
-
57519153 SCREWSCREW
-
67519354 STUD, HEADSTUD, HEAD
-
77547508 NUTNUT
-
83022584 TAPPET, BUCKET, VALVETAPPET, BUCKET, VALVE
-
95813743 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
105137758 RETAINER, VALVERETAINER, VALVE
-
115910394 SEAT W/SEALSEAT W/SEAL
-
127044025 SPRING, VALVESPRING, VALVE
-
137081739 KEEPER, VALVEKEEPER, VALVE
