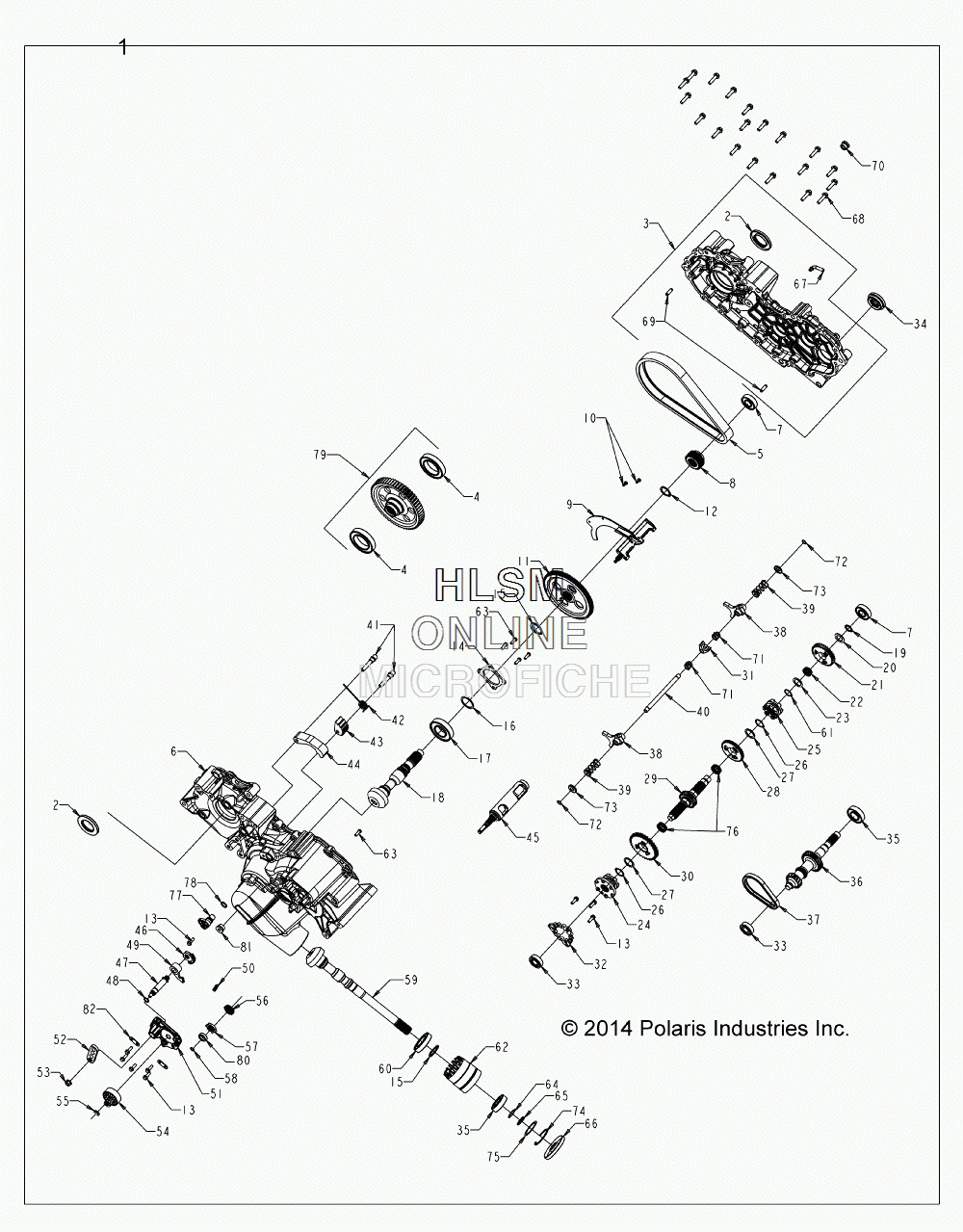

GEARCASE для Polaris SPORTSMAN ETX SAGE GREEN [A15SEA32AA] - 2015 года выпуска
-
№АртикулНазвание
-
11333303 ASM., GEARCASE, NO DIFFERENTIAL (INCL. ALL)ASM., GEARCASE, NO DIFFERENTIAL (INCL. ALL)
-
23233878 SEAL, TRIPLE LIP 40 X 70 X 7SEAL, TRIPLE LIP 40 X 70 X 7
-
33235605 GEARCASE, LEFT HAND MACHGEARCASE, LEFT HAND MACH
-
43233268 BEARING, BALL 6010 C3 50 X 80 X 10BEARING, BALL 6010 C3 50 X 80 X 10
-
53234057 CHAIN, SILENTCHAIN, SILENT
-
63235606 GEARCASE, RIGHT HAND MACHGEARCASE, RIGHT HAND MACH
-
73233018 BEARING, BALL 6204 20 X 47 X 14BEARING, BALL 6204 20 X 47 X 14
-
83234060 SPROCKET, 19T, 1.00'SPROCKET, 19T, 1.00'
-
93234061 DEFLECTOR, OILDEFLECTOR, OIL
-
103233749 SCREW, TAPPING TORX, 11902 X 0.5SCREW, TAPPING TORX, 11902 X 0.5
-
113234062 GEAR OUTPUT 91TGEAR OUTPUT 91T
-
123233699 RTNG RING, 1 RR 7200-118RTNG RING, 1 RR 7200-118
-
133234247 SCREW, TAPPING HEX 43834 UNC X 0.75SCREW, TAPPING HEX 43834 UNC X 0.75
-
143234063 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
153233364 RING, RETAININGRING, RETAINING
-
163234271 SHIM 1.7 X 1.385SHIM 1.7 X 1.385
-
173234065 BEARING, BALL 6207BEARING, BALL 6207
-
183234263 SHAFT, CENTER DRIVESHAFT, CENTER DRIVE
-
193234067 RING, RETAINING SHR-75RING, RETAINING SHR-75
-
203233176 WASHER THRUST, 1.27 X 0.793 X 0.065WASHER THRUST, 1.27 X 0.793 X 0.065
-
213234917 GEAR, SPUR, HELICAL 40TGEAR, SPUR, HELICAL 40T
-
223233009 BEARING, NEEDLE 22 X 26 X 10BEARING, NEEDLE 22 X 26 X 10
-
233233855 WASHER, 1.25 X 0.876 X 0.05WASHER, 1.25 X 0.876 X 0.05
-
243234257 ENGAGEMENT DOG, 6-FACE L/PENGAGEMENT DOG, 6-FACE L/P
-
253234258 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
263233306 RING, RETAINING BASIC EXT 0.938RING, RETAINING BASIC EXT 0.938
-
273234248 WASHER 1.3 X 0.995 X 0.065WASHER 1.3 X 0.995 X 0.065
-
283234290 SPROCKET, 38T 6-FACESPROCKET, 38T 6-FACE
-
293234280 SHAFT, REVERSE 26TSHAFT, REVERSE 26T
-
303234291 GEAR, 33T 6-FACEGEAR, 33T 6-FACE
-
313234073 COLLAR, SHIFTCOLLAR, SHIFT
-
323233915 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
333234274 BEARING, BALL 6203 17 X 40 X 12BEARING, BALL 6203 17 X 40 X 12
-
343234851 SEAL, 25 X 47SEAL, 25 X 47
-
353233019 BEARING, BALL 6205 C3 25 X 52 X 15BEARING, BALL 6205 C3 25 X 52 X 15
-
363234916 SHAFT, INPUT, HELICAL (34T, I9T, 15T)SHAFT, INPUT, HELICAL (34T, I9T, 15T)
-
373234264 CHAIN .25P X .40W X 50LCHAIN .25P X .40W X 50L
-
383234077 FORK, SHIFTFORK, SHIFT
-
393234078 COMPRESSION, SPRING 0.92 O.D X 2COMPRESSION, SPRING 0.92 O.D X 2
-
403234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
413233432 PIN, TENSIONERPIN, TENSIONER
-
423233431 TORSION SPRINGTORSION SPRING
-
433233434 CAM, CHAIN TENSIONERCAM, CHAIN TENSIONER
-
443233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
453234360 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
463233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
473233831 SHAFT, SHIFTSHAFT, SHIFT
-
483233869 O-RING, -14O-RING, -14
-
493233829 PAWL, DETENTPAWL, DETENT
-
503234578 SPRING, COMPRESSIONSPRING, COMPRESSION
-
513234188 COVER, SECTOR GEAR MACHCOVER, SECTOR GEAR MACH
-
523234584 BELLCRANK, SHIFT DRUMBELLCRANK, SHIFT DRUM
-
533233961 NUT, LOCK, HEX FLANGE NYLON 45428NUT, LOCK, HEX FLANGE NYLON 45428
-
547661999 SWITCH, ROTARY 2-PIN ITWSWITCH, ROTARY 2-PIN ITW
-
553233834 RING, RETAINING, BASIC EXT.RING, RETAINING, BASIC EXT.
-
563233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
573233909 STAR, DETENTSTAR, DETENT
-
583233076 O-RING, -12O-RING, -12
-
593234262 SHAFT, SNORKELSHAFT, SNORKEL
-
603233265 BEARING, BALL 6007 C3 35 X 62 X 14BEARING, BALL 6007 C3 35 X 62 X 14
-
613234336 RING, RETAINING BASIC EXT N.84RING, RETAINING BASIC EXT N.84
-
623234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
633234086 SCREW, TORX TRUSS HD 43834 X 0.75SCREW, TORX TRUSS HD 43834 X 0.75
-
643234272 SHIM 1.18 X 0.995SHIM 1.18 X 0.995
-
653233106 RING, RETAININGRING, RETAINING
-
663234113 SEAL, TRIPLE LIP, 25 X 80 X 10SEAL, TRIPLE LIP, 25 X 80 X 10
-
673234230 TUBE, VENT 90~ 1/4' LINETUBE, VENT 90~ 1/4' LINE
-
683234114 SCREWSCREW
-
693234244 PIN, DOWEL 41775 X 1PIN, DOWEL 41775 X 1
-
703233794 PLUG, 3/4-16, 41775 INTERNAL HEXPLUG, 3/4-16, 41775 INTERNAL HEX
-
713234089 COMPRESSION, SPRINGCOMPRESSION, SPRING
-
723234090 RETAINER, SPRINGRETAINER, SPRING
-
733234091 WASHER, CUPWASHER, CUP
-
743234269 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
753234273 SHIMSHIM
-
763233103 BEARING, NEEDLEBEARING, NEEDLE
-
774013908 SENSOR, SPEEDSENSOR, SPEED
-
783234302 O-RINGO-RING
-
793235604 SUBASM., SHAFT, 59TSUBASM., SHAFT, 59T
-
803235243 SPACERSPACER
-
813234529 PLUG, MAGNETICPLUG, MAGNETIC
-
823235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
