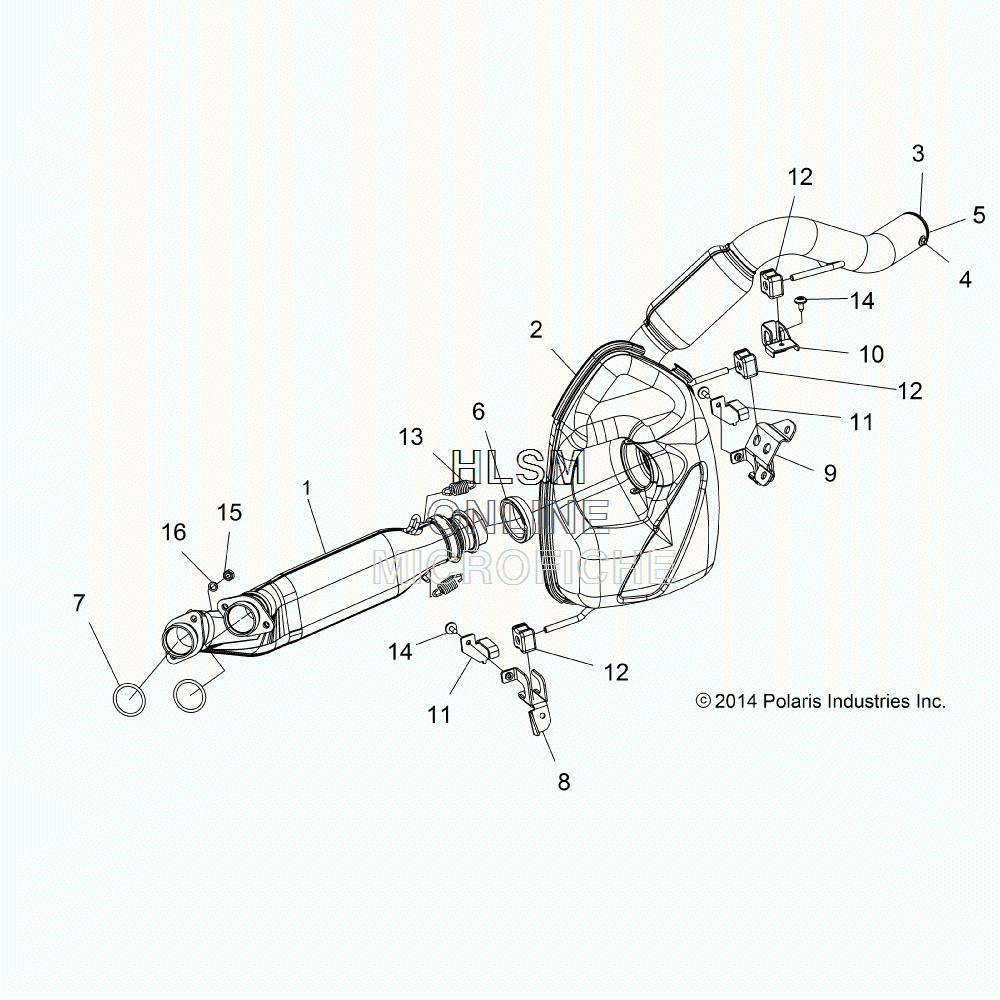

EXHAUST SYSTEM для Polaris SPORTSMAN XP 1000 MD [A15SXE95HK] - 2015 года выпуска
-
№АртикулНазвание
-
11262525 ASM., EXHAUST PIPE, TWINASM., EXHAUST PIPE, TWIN
-
21262570 ASM., EXHAUST, SILENCER (INCL. 3-5)ASM., EXHAUST, SILENCER (INCL. 3-5)
-
31262123 SPARK ARRESTORSPARK ARRESTOR
-
47517257 SCREWSCREW
-
57547120 NUT, HEX HEADNUT, HEX HEAD
-
63610204 SEAL, EXHAUSTSEAL, EXHAUST
-
75257995 GASKET, EXHAUST SEALINGGASKET, EXHAUST SEALING
-
85260069-067 BRACKET, EXHAUST, LOWER, SUPPORT, BLACKBRACKET, EXHAUST, LOWER, SUPPORT, BLACK
-
95260166-067 BRACKET, EXHAUST, UPPER, SUPPORT, BLACKBRACKET, EXHAUST, UPPER, SUPPORT, BLACK
-
105260213-067 BRACKET, TAILPIPE, BLACKBRACKET, TAILPIPE, BLACK
-
115260359-067 BRACKET, EXHAUST, GROMMET, BLACKBRACKET, EXHAUST, GROMMET, BLACK
-
125413383 GROMMET, SILENCER MOUNTGROMMET, SILENCER MOUNT
-
137043727 SPRING, EXHAUST, S.S. SHOTPEENEDSPRING, EXHAUST, S.S. SHOTPEENED
-
147518936 SCREWSCREW
-
157547076 NUTNUT
-
167556111 WASHER, LOCKWASHER, LOCK
