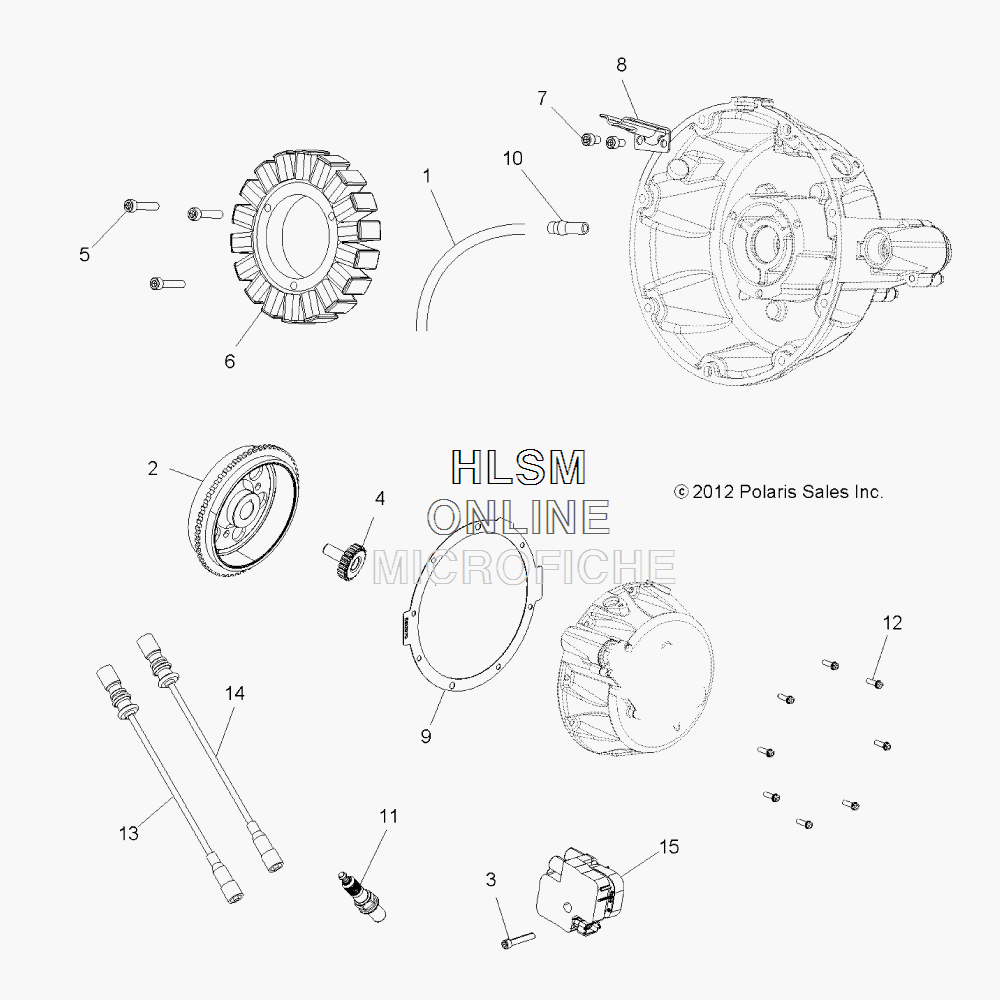

IGNITION SYSTEM для Polaris SPORTSMAN XP 1000 MD [A15SXE95HK] - 2015 года выпуска
-
№АртикулНазвание
-
18360077 TUBING, NYLONTUBING, NYLON
-
24014005 FLYWHEELFLYWHEEL
-
37517566 SCREWSCREW
-
45137241 BOLT, WATER PUMP DRIVE, LEFT HANDBOLT, WATER PUMP DRIVE, LEFT HAND
-
57518544 SCREWSCREW
-
64014006 STATOR W/GROMMETSTATOR W/GROMMET
-
77518765 SCREWSCREW
-
85250018 RETAINER, STATOR WIRERETAINER, STATOR WIRE
-
95813680 GASKET, STATOR COVERGASKET, STATOR COVER
-
107052463 FITTINGFITTING
-
113022553 PLUG, SPARKPLUG, SPARK
-
127518576 SCREWSCREW
-
134014007 WIRE, SPARK PLUG, MAGWIRE, SPARK PLUG, MAG
-
144013328 WIRE, SPARK PLUG, PTOWIRE, SPARK PLUG, PTO
-
154010425 COIL, EFICOIL, EFI
