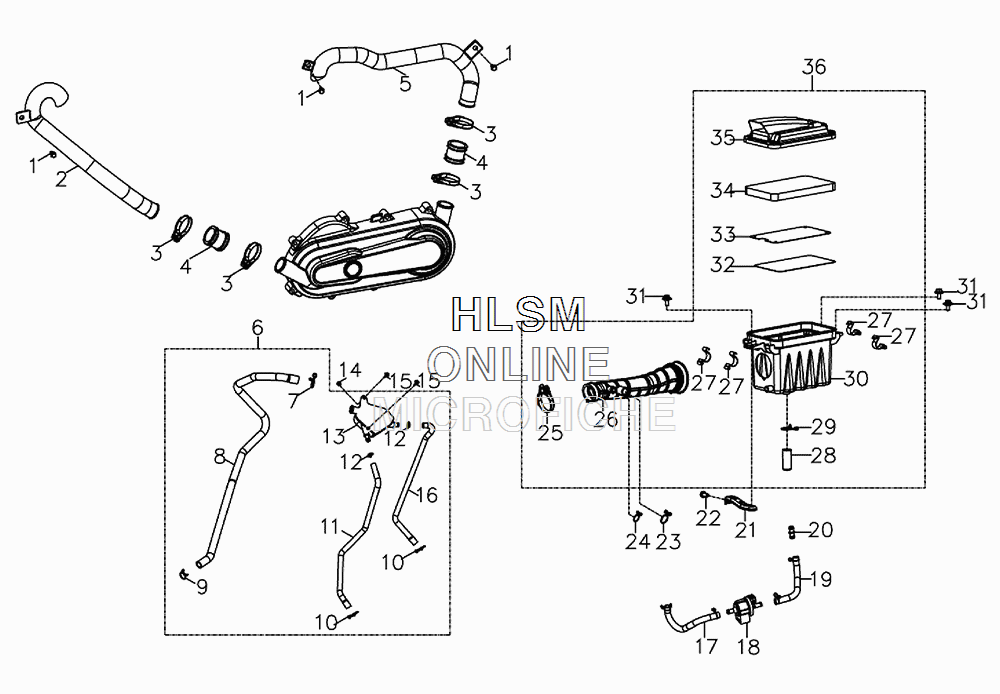

AIR INTAKE SYSTEM для Polaris OUTLAW® 110 EFI (VOODOO BLUE) [A16YAK11AF] - 2016 года выпуска
-
№АртикулНазвание
-
10450824 BOLT W/WASHERBOLT W/WASHER
-
20453331 DUCT, INLETDUCT, INLET
-
30453655 CLAMPCLAMP
-
40453656 BOOT, DUCTBOOT, DUCT
-
50453332 DUCT, OUTLETDUCT, OUTLET
-
70453187 CLIPCLIP
-
80454008 TUBE, BREATHER, VENTILATEDTUBE, BREATHER, VENTILATED
-
90452795 CLIPCLIP
-
100453516 CLIPCLIP
-
110454006 TUBE, OILTUBE, OIL
-
120450865 CLIPCLIP
-
130453184 SEPARATOR, OILSEPARATOR, OIL
-
140450880 NUTNUT
-
150452215 BOLTBOLT
-
160454007 TUBE, OILTUBE, OIL
-
170455127 HOSE, IACHOSE, IAC
-
180455066 VALVE, IDLE AIR CONTROLLER, IACVALVE, IDLE AIR CONTROLLER, IAC
-
190455128 HOSE, IACHOSE, IAC
-
200455064 HARNESS, IATHARNESS, IAT
-
210453666 BRACKET, MOUNT, AIR BOXBRACKET, MOUNT, AIR BOX
-
220453518 BOLTBOLT
-
230455061 CLIPCLIP
-
240455063 CLIPCLIP
-
250453658 CLAMPCLAMP
-
260455129 BOOTBOOT
-
270453660 CLIPCLIP
-
280453725 HOSE, DRAINHOSE, DRAIN
-
290453661 CLIPCLIP
-
300453662 BOX, AIR CLEANERBOX, AIR CLEANER
-
310452215 BOLTBOLT
-
320453484 GASKETGASKET
-
330453663 NET, AIR CLEANERNET, AIR CLEANER
-
340454620 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
350453665 COVER, AIR CLEANERCOVER, AIR CLEANER
-
360455130 ASM., CLEANER, AIRASM., CLEANER, AIR
