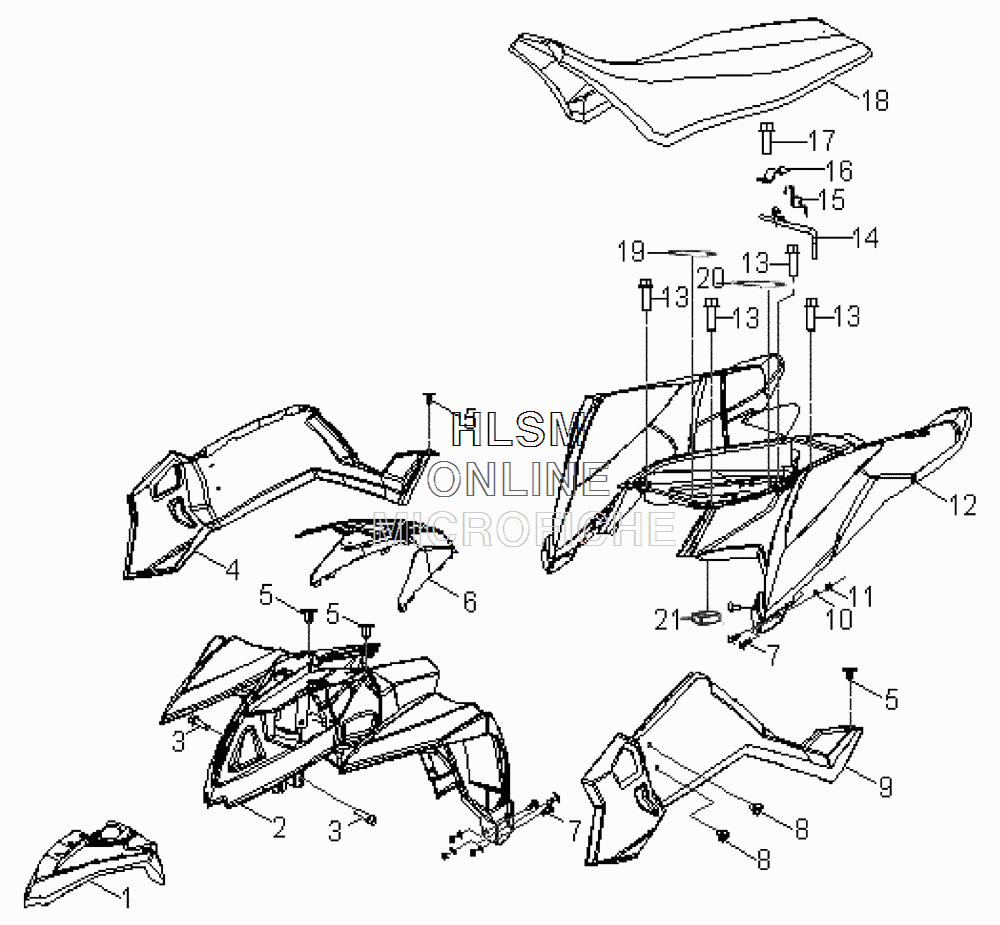

CAB - SEAT для Polaris OUTLAW® 110 EFI (VOODOO BLUE) [A16YAK11AF] - 2016 года выпуска
-
№АртикулНазвание
-
10453326-133 COVER, FRONT, BRIGHT WHITECOVER, FRONT, BRIGHT WHITE
-
20454915-619 ASM., CAB, FRONT, W/DECALS, VOODOO BLUE ((AF))ASM., CAB, FRONT, W/DECALS, VOODOO BLUE ((AF))
-
30450824 BOLTBOLT
-
40453324-133 PANEL, SIDE, RH, BRIGHT WHITEPANEL, SIDE, RH, BRIGHT WHITE
-
50451076 RIVET, PLASTICRIVET, PLASTIC
-
60455138-619 COVER, FUEL TANK, VOODOO BLUE ((AF))COVER, FUEL TANK, VOODOO BLUE ((AF))
-
70450622 BOLTBOLT
-
87661855 RIVETRIVET
-
90453323-133 PANEL, SIDE, LH, BRIGHT WHITEPANEL, SIDE, LH, BRIGHT WHITE
-
100450710 WASHERWASHER
-
110450741 NUTNUT
-
120455137-619 ASM., CAB, REAR, VOODOO BLUE W/DECAL ((AF))ASM., CAB, REAR, VOODOO BLUE W/DECAL ((AF))
-
130452215 BOLTBOLT
-
140453688 LATCH, SEATLATCH, SEAT
-
150453689 SPRINGSPRING
-
160453690 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
170451703 SCREWSCREW
-
180455170-070 ASM., SEAT, OUTLAW 110, BLACK ((AF) (INCL. 14,15,16))ASM., SEAT, OUTLAW 110, BLACK ((AF) (INCL. 14,15,16))
-
190453686 O-RING, LARGEO-RING, LARGE
-
200453687 O-RINGO-RING
-
210450346 RUBBER, BATTERYRUBBER, BATTERY
