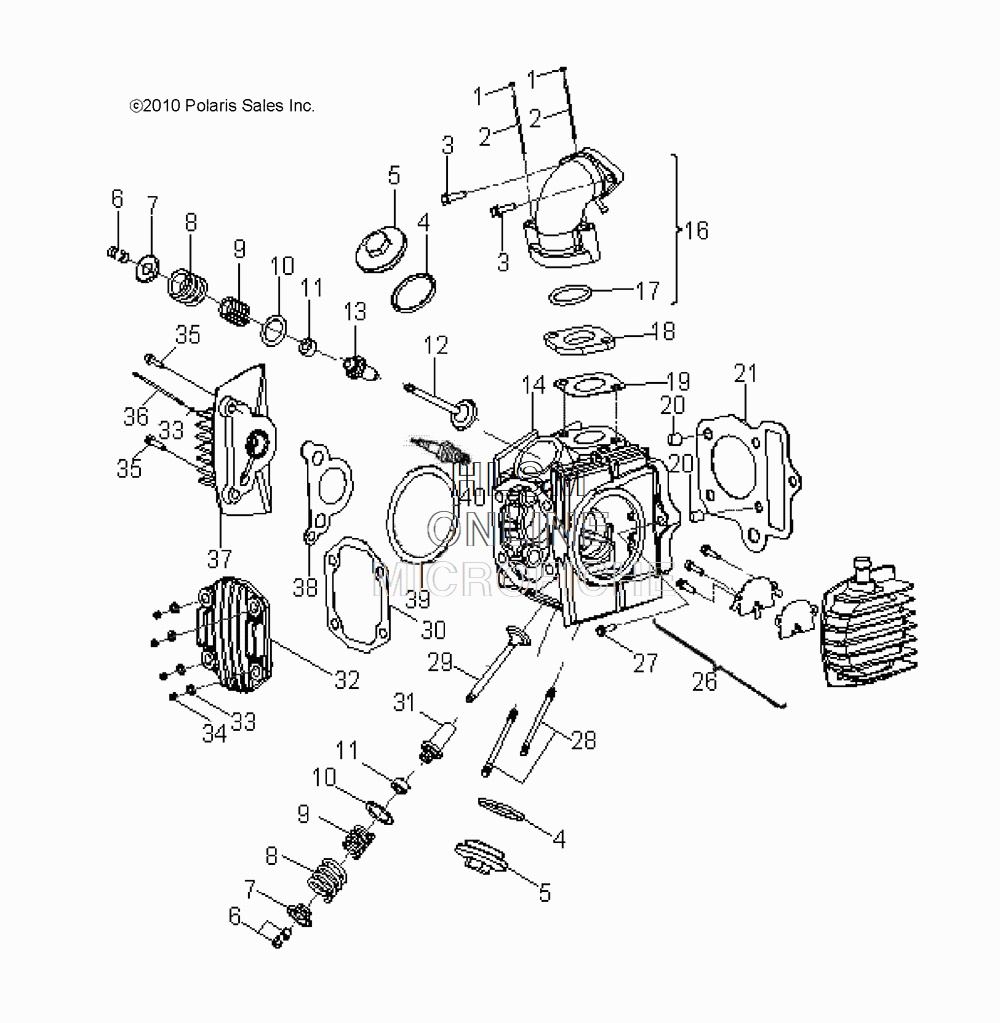

CYLINDER HEAD для Polaris OUTLAW 50 (VOODOO BLUE) [A16YAK05AF] - 2016 года выпуска
-
№АртикулНазвание
-
-0454995 ASM., ENGINE, 4 STROKE, W/O CARBASM., ENGINE, 4 STROKE, W/O CARB
-
10450880 NUTNUT
-
20453573 STUDSTUD
-
30453520 BOLTBOLT
-
40452371 O-RINGO-RING
-
50453537 CAP, VALVECAP, VALVE
-
60452389 CLIP, RETAINERCLIP, RETAINER
-
70453443 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
80453442 SPRING, VALVE, INNERSPRING, VALVE, INNER
-
90453441 SPRING, VALVE, OUTERSPRING, VALVE, OUTER
-
100453444 SEAT, VALVE SPRING, OUTERSEAT, VALVE SPRING, OUTER
-
110453426 SEAL, VALVESEAL, VALVE
-
120454017 VALVE, INTAKEVALVE, INTAKE
-
130453575 GUIDE, VALVE INTAKEGUIDE, VALVE INTAKE
-
140454937 ASM., HEAD, CYLINDER [INCL. 6-13,29,31]ASM., HEAD, CYLINDER [INCL. 6-13,29,31]
-
160453932 ASM., MANIFOLD, INTAKE [INCL. 17]ASM., MANIFOLD, INTAKE [INCL. 17]
-
170453563 O-RINGO-RING
-
180453898 INSULATOR, MANIFOLDINSULATOR, MANIFOLD
-
190453899 GASKET, MANIFOLDGASKET, MANIFOLD
-
200452342 PIN, DOWELPIN, DOWEL
-
210453900 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
260453582 ASM., COVER, CYLINDER HEAD, SMALL, LEFT HANDASM., COVER, CYLINDER HEAD, SMALL, LEFT HAND
-
270453520 BOLTBOLT
-
280453828 STUDSTUD
-
290454018 VALVE, EXHAUSTVALVE, EXHAUST
-
300453578 GASKET, COVERGASKET, COVER
-
310453576 GUIDE, VALVE, EXHAUSTGUIDE, VALVE, EXHAUST
-
320453534 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
330453510 WASHERWASHER
-
340453553 NUTNUT
-
350453519 BOLTBOLT
-
360453723 BOLTBOLT
-
370453535 COVER, HEAD, RIGHT HANDCOVER, HEAD, RIGHT HAND
-
380453539 GASKET, COVER, CYLINDER HEAD, RIGHT HANDGASKET, COVER, CYLINDER HEAD, RIGHT HAND
-
390453538 GASKET, COVER, CYLINDER HEAD, LEFT HANDGASKET, COVER, CYLINDER HEAD, LEFT HAND
-
400453034 PLUG, SPARKPLUG, SPARK
