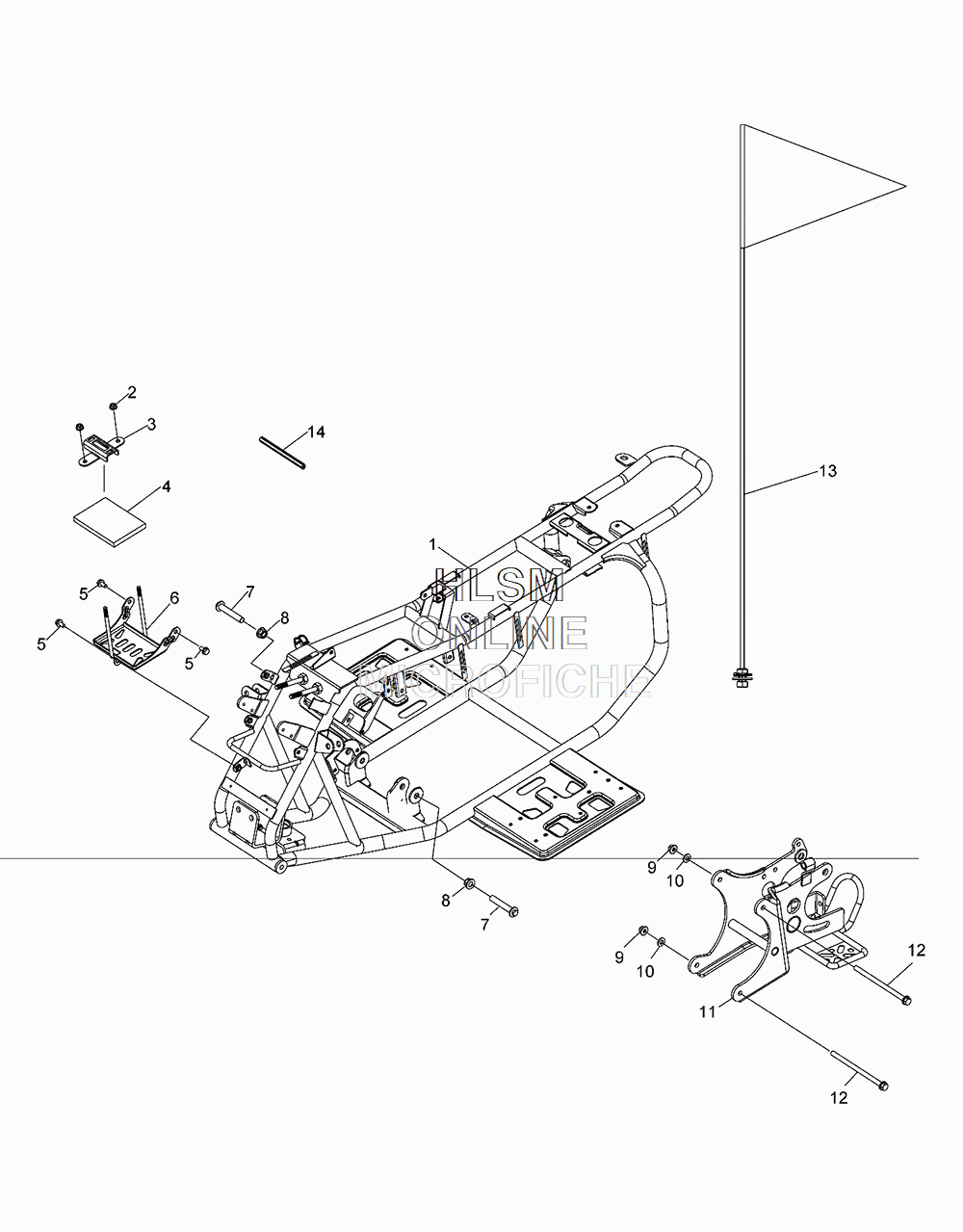

FRAME - W/ SWINGARM для Polaris OUTLAW 50 (VOODOO BLUE) [A16YAK05AF] - 2016 года выпуска
-
№АртикулНазвание
-
10454936-067 FRAME, MAIN, BLACKFRAME, MAIN, BLACK
-
20450150 NUTNUT
-
30453896 RETAINER, BATTERY, TOPRETAINER, BATTERY, TOP
-
40450346 FOAMFOAM
-
50450701 BOLTBOLT
-
60453864 BRACKET, BATTERYBRACKET, BATTERY
-
70453865 BOLTBOLT
-
80453866 NUTNUT
-
90453867 NUTNUT
-
100450192 WASHERWASHER
-
110453408-067 SWING ARM, REAR, BLACK [AF]SWING ARM, REAR, BLACK [AF]
-
120453868 BOLTBOLT
-
130454882 FLAG, SAFETYFLAG, SAFETY
-
140454878 TRIM, RUBBERTRIM, RUBBER
