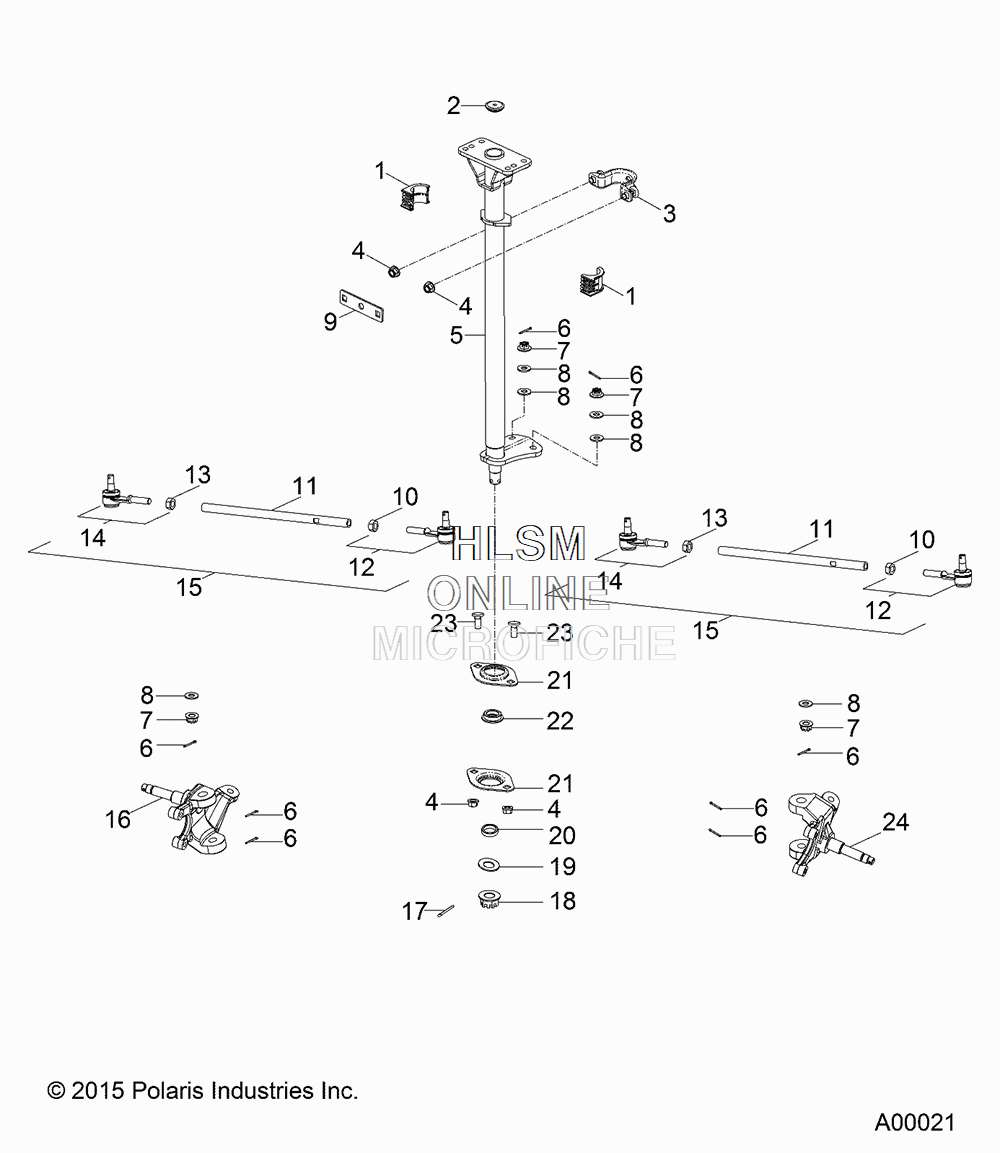

STEERING POST W/ TIE RODS для Polaris PHOENIX 200 [A16YAP20AF] - 2016 года выпуска
-
№АртикулНазвание
-
10452709 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
20453125 CAP, RUBBERCAP, RUBBER
-
30454077 BRACKET, BUSHING, UPPER W/BOLTSBRACKET, BUSHING, UPPER W/BOLTS
-
40453866 NUTNUT
-
50454052-067 POST, STEERING, BLACK [INCL. 2]POST, STEERING, BLACK [INCL. 2]
-
60450719 PIN, COTTERPIN, COTTER
-
70450502 NUT, CASTLENUT, CASTLE
-
80450279 WASHERWASHER
-
90454053 BRACKET, STEERING POSTBRACKET, STEERING POST
-
100450224 NUT, JAMNUT, JAM
-
110453802 TIE RODTIE ROD
-
120454743 ASM., END, TIE ROD, LEFT HAND [INCL. 10]ASM., END, TIE ROD, LEFT HAND [INCL. 10]
-
130453131 NUT, HEXNUT, HEX
-
140454744 ASM., END, TIE ROD, RIGHT HAND [INCL. 13]ASM., END, TIE ROD, RIGHT HAND [INCL. 13]
-
160454647 ASM., KNUCKLE, RIGHT HANDASM., KNUCKLE, RIGHT HAND
-
170450395 PIN, COTTERPIN, COTTER
-
180452669 NUT, CASTLENUT, CASTLE
-
190452671 WASHERWASHER
-
200452719 SPACER, RINGSPACER, RING
-
210452707 FLANGETTEFLANGETTE
-
220453978 BEARING, BALLBEARING, BALL
-
230452776 BOLT, CARRIAGEBOLT, CARRIAGE
-
240454646 ASM., KNUCKLE, LEFT HANDASM., KNUCKLE, LEFT HAND
