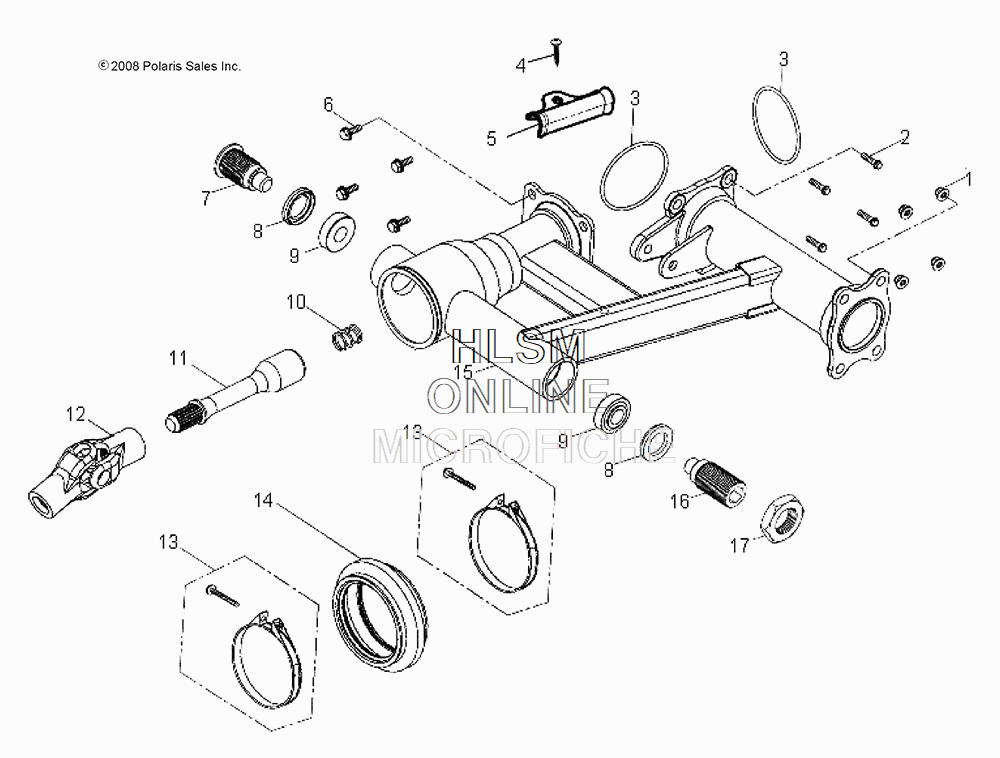

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris PHOENIX 200 [A16YAP20AF] - 2016 года выпуска
-
№АртикулНазвание
-
10453866 NUTNUT
-
20452615 BOLTBOLT
-
30452613 O-RINGO-RING
-
40451703 SCREWSCREW
-
50453763 RETAINER, BRAKE CABLE, REARRETAINER, BRAKE CABLE, REAR
-
60452614 BOLTBOLT
-
70452610 BOLT, PIVOTBOLT, PIVOT
-
80452609 SEAL, OILSEAL, OIL
-
90452608 BEARINGBEARING
-
100452605 SPRINGSPRING
-
110452606 SHAFT, DRIVESHAFT, DRIVE
-
120452607 JOINT, UNIVERSALJOINT, UNIVERSAL
-
130452617 CLAMPCLAMP
-
140452616 BOOTBOOT
-
150453764-067 ARM, SWING, BLACKARM, SWING, BLACK
-
160452611 BOLT, PIVOTBOLT, PIVOT
-
170452612 NUT, LOCKNUT, LOCK
