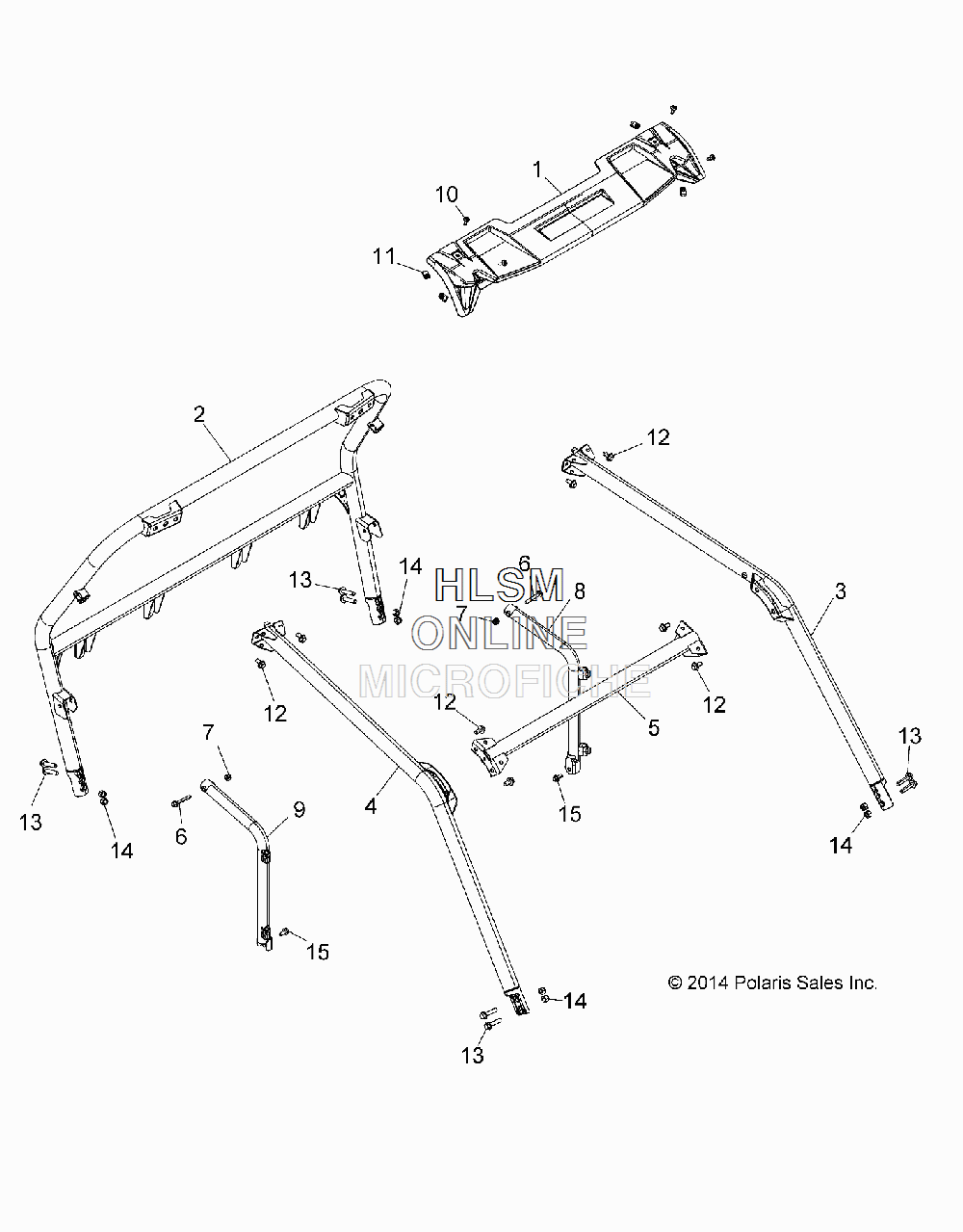

CAB FRAME для Polaris RZR 1000 60 INCH BLUE FIRE [Z16VBE99AB] - 2016 года выпуска
-
№АртикулНазвание
-
15450657-070 PANEL, VISOR TRIM, BLACKPANEL, VISOR TRIM, BLACK
-
21019131-458 HOOP, ROPS, BLACKHOOP, ROPS, BLACK
-
31019132-458 ROPS, LH, BLACKROPS, LH, BLACK
-
41019133-458 ROPS, RH, BLACKROPS, RH, BLACK
-
51020755-458 ROPS, FRONT, CROSS, BLACKROPS, FRONT, CROSS, BLACK
-
67520094 SCREWSCREW
-
77547454 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
81020403-458 BOLSTER, LH, BLACK (TO 2/20/16)BOLSTER, LH, BLACK (TO 2/20/16)
-
81020237-458 WELD-BOLSTER, LH, M.BLK (FROM 2/21/16)WELD-BOLSTER, LH, M.BLK (FROM 2/21/16)
-
91020404-458 BOLSTER, RH, BLACK (TO 2/20/16)BOLSTER, RH, BLACK (TO 2/20/16)
-
91020238-458 WELD-BOLSTER, RH, M.BLK (FROM 2/21/16)WELD-BOLSTER, RH, M.BLK (FROM 2/21/16)
-
107519650 SCREWSCREW
-
117547674 NUT, U-TYPENUT, U-TYPE
-
127519905 SCREWSCREW
-
137519906 SCREWSCREW
-
147547746 NUTNUT
-
157518450 BOLTBOLT
