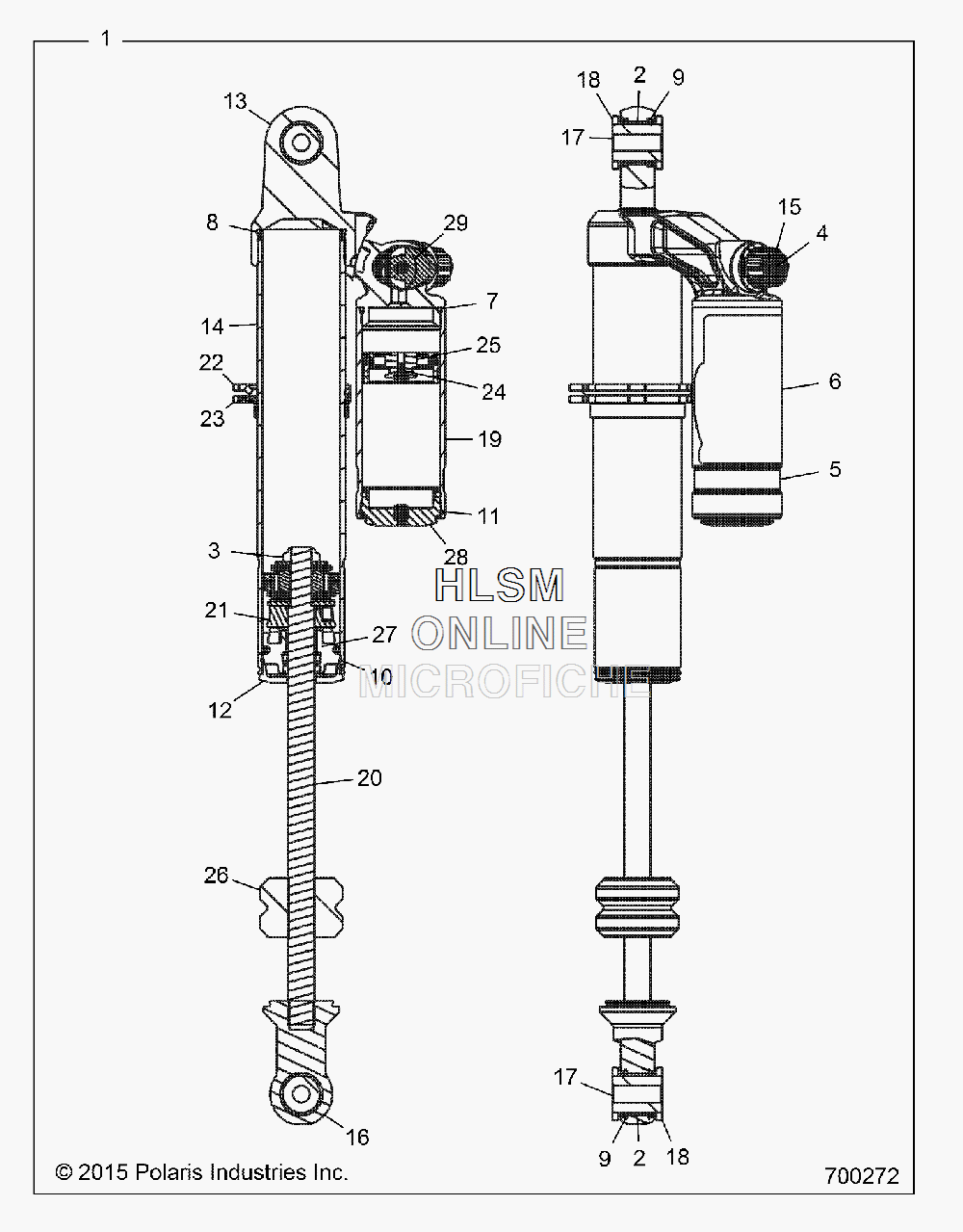

REAR SHOCK - INTERNALS для Polaris RZR 1000 60 INCH BLUE FIRE [Z16VBE99AB] - 2016 года выпуска

№

Артикул

Название
1

7044483 SHOCK-REAR, 2, RESVR, PIGGYBK (INCL ALL)

SHOCK-REAR, 2, RESVR, PIGGYBK (INCL ALL)

130 ₽
1

7044484 SHOCK-REAR, 2, RESVR, PIGGYBK (INCL ALL)

SHOCK-REAR, 2, RESVR, PIGGYBK (INCL ALL)

130 ₽
1

1500838 PLATE: TOP-OUT (1.570 OD X 0.503 ID X 0.128 TH, (0.620 SHAFT)

PLATE: TOP-OUT (1.570 OD X 0.503 ID X 0.128 TH, (0.620 SHAFT)

1 670 ₽
1

1500943 PLATE, TOP OUT

PLATE, TOP OUT

3 330 ₽
1

1501210 K-SEAL REBUILD 803-00-747 (USE W/7044483)

K-SEAL REBUILD 803-00-747 (USE W/7044483)

15 600 ₽
2

1501010 BUSHING, EYELET

BUSHING, EYELET

3 020 ₽
3

1500842 FASTENER, STANDARD: NUT, LOCK (1/2-20 X 0.313 TLG)

FASTENER, STANDARD: NUT, LOCK (1/2-20 X 0.313 TLG)

1 460 ₽
4

1501011 SCREW, #4, SS PAN

SCREW, #4, SS PAN

2 290 ₽
5

1501012 DECAL, PERF SERIES

DECAL, PERF SERIES

1 460 ₽
6

1501013 DECAL, RESERVOIR

DECAL, RESERVOIR

1 460 ₽
7

1500623 SEALS:O-RING ((-132) .103 C.S. X 1.737 ID) STANDARD, N-70, STATIC

SEALS:O-RING ((-132) .103 C.S. X 1.737 ID) STANDARD, N-70, STATIC

670 ₽
8

1500510 SEALS:O-RING ((-135) .103 C.S. X 1.925 ID) STANDARD, N-70, STATIC

SEALS:O-RING ((-135) .103 C.S. X 1.925 ID) STANDARD, N-70, STATIC

670 ₽
9

1501014 SEAL, WEATHER

SEAL, WEATHER

1 670 ₽
10

1500236 RETAINING RING: WIRE (0.062 CS X 1.850 ID) 17-7 SS

RETAINING RING: WIRE (0.062 CS X 1.850 ID) 17-7 SS

1 460 ₽
11

1501015 RING, RET. WIRE

RING, RET. WIRE

1 460 ₽
12

1501100 CAP, BEARING

CAP, BEARING

5 620 ₽
13

1501016 CAP, BODY, PB (USE W/7044483)

CAP, BODY, PB (USE W/7044483)

43 680 ₽
13

1501017 CAP, BODY, PB (USE W/7044484)

CAP, BODY, PB (USE W/7044484)

39 520 ₽
14

1501018 BODY, 1.834X10.5

BODY, 1.834X10.5

13 520 ₽
15

1501019 KNOB, LOW SPEED

KNOB, LOW SPEED

1 870 ₽
16

1501089 EYELET PART: EYELET, 1.0097 BORE X .800 W, 5/8UNF, 2.200 LG

EYELET PART: EYELET, 1.0097 BORE X .800 W, 5/8UNF, 2.200 LG

9 360 ₽
17

1501087 EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

4 160 ₽
18

1501088 EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

880 ₽
19

1501023 RESERVOIR, 5" THD.

RESERVOIR, 5" THD.

10 400 ₽
20

1501024 SHAFT, .62X11.4TLG

SHAFT, .62X11.4TLG

20 800 ₽
21

1501025 SPACER, SHAFT, NYL

SPACER, SHAFT, NYL

1 310 ₽
22

1500872 SPRING HARDWARE: PRELOAD RING BACK UP (3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID) LOW CARBON STEEL, ZINC PLATED

SPRING HARDWARE: PRELOAD RING BACK UP (3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID) LOW CARBON STEEL, ZINC PLATED

5 830 ₽
23

1500873 SPRING HARDWARE: PRELOAD RING (3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID) LOW CARBON STEEL, ZINC PLATED

SPRING HARDWARE: PRELOAD RING (3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID) LOW CARBON STEEL, ZINC PLATED

7 280 ₽
24

1500161 SCREW ASSEMBLY: (FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG) STEEL BLACK OXIDE, COMPLETE

SCREW ASSEMBLY: (FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG) STEEL BLACK OXIDE, COMPLETE

1 870 ₽
25

1501026 ASM., PISTON, FLOAT

ASM., PISTON, FLOAT

7 280 ₽
26

1501028 BUMPER, B/O SHAFT

BUMPER, B/O SHAFT

3 950 ₽
27

1501099 ASM. BEARING

ASM. BEARING

13 110 ₽
28

1501027 ASM., END CAP, RESERVOIR

ASM., END CAP, RESERVOIR

6 450 ₽
29

1501006 ASM., DAMP. ADJ. LSC

ASM., DAMP. ADJ. LSC

18 720 ₽
