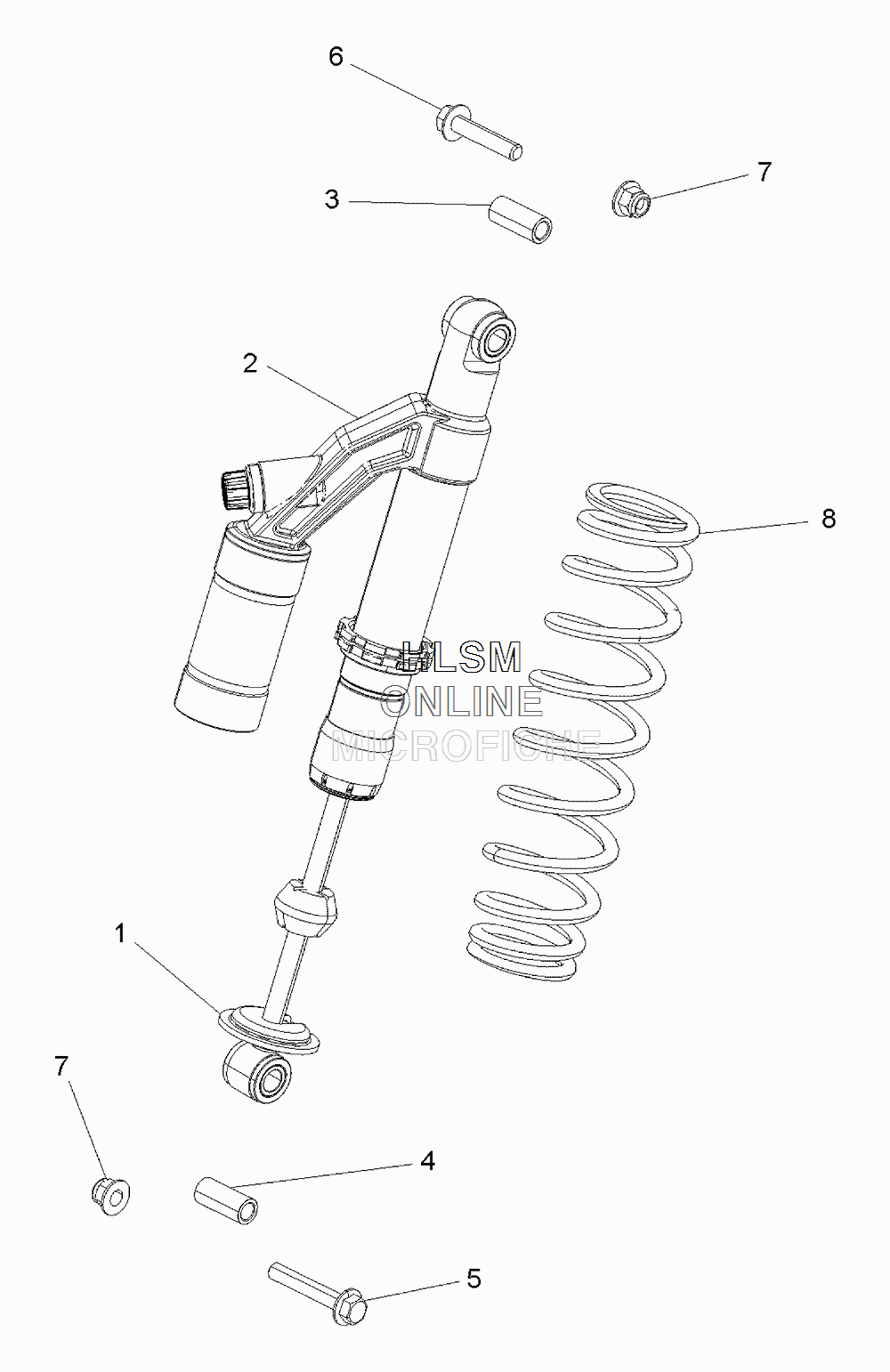

SHOCK MOUNTING- REAR для Polaris SCRAMBLER® XP 1000 (TITANIUM MATTE RED) [A16SVE95AM] - 2016 года выпуска
-
№АртикулНазвание
-
15251753 RETAINER, SPRINGRETAINER, SPRING
-
27044080 SHOCK, REAR, LHSHOCK, REAR, LH
-
27044081 SHOCK, REAR, RHSHOCK, REAR, RH
-
35334876 SLEEVE, SHOCKSLEEVE, SHOCK
-
45337092 SLEEVE, SHOCKSLEEVE, SHOCK
-
57518826 BOLT, FLANGEBOLT, FLANGE
-
67518971 SCREWSCREW
-
77547313 NUT, FLANGENUT, FLANGE
-
87044129-133 SPRING, BRIGHT WHITESPRING, BRIGHT WHITE
