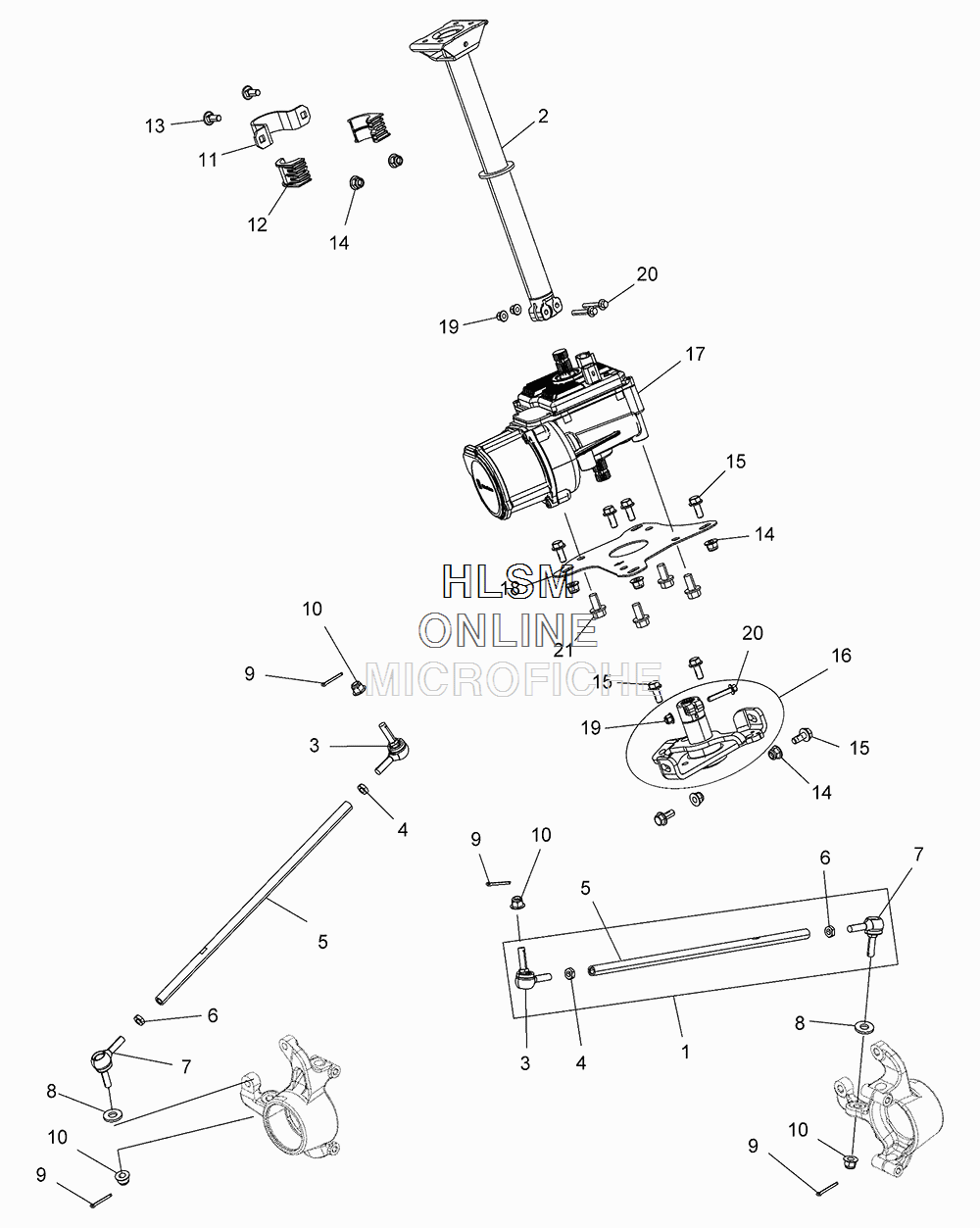

STEERING POST для Polaris SCRAMBLER® XP 1000 (TITANIUM MATTE RED) [A16SVE95AM] - 2016 года выпуска
-
№АртикулНазвание
-
11824007 ASM., TIE ROD (INCL. 3-7) (3-7 AVAILABLE ONLY IN THIS ASSEMBLY)ASM., TIE ROD (INCL. 3-7) (3-7 AVAILABLE ONLY IN THIS ASSEMBLY)
-
21823781-329 POST, STEERING, UPPER, BLACKPOST, STEERING, UPPER, BLACK
-
87556153 WASHERWASHER
-
97661203 PIN, COTTERPIN, COTTER
-
107547333 NUT, FLANGENUT, FLANGE
-
115259997 BRACKET, STEERING, UPPERBRACKET, STEERING, UPPER
-
125438904 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
137518479 BOLT, CARRIAGEBOLT, CARRIAGE
-
147547317 NUT, FLANGENUT, FLANGE
-
157518450 BOLT, FLANGEBOLT, FLANGE
-
162205364 KIT, POST, STEERING, LOWER, BOLTED (INCL. POST AND HARDWARE)KIT, POST, STEERING, LOWER, BOLTED (INCL. POST AND HARDWARE)
-
172413344 ASM., POWER STEERINGASM., POWER STEERING
-
185254633-329 BRACKET, POWER STEERING, BLACKBRACKET, POWER STEERING, BLACK
-
197547274 NUT, FLANGENUT, FLANGE
-
207516827 SCREW, FLANGESCREW, FLANGE
-
217518558 BOLT, FLANGEBOLT, FLANGE
