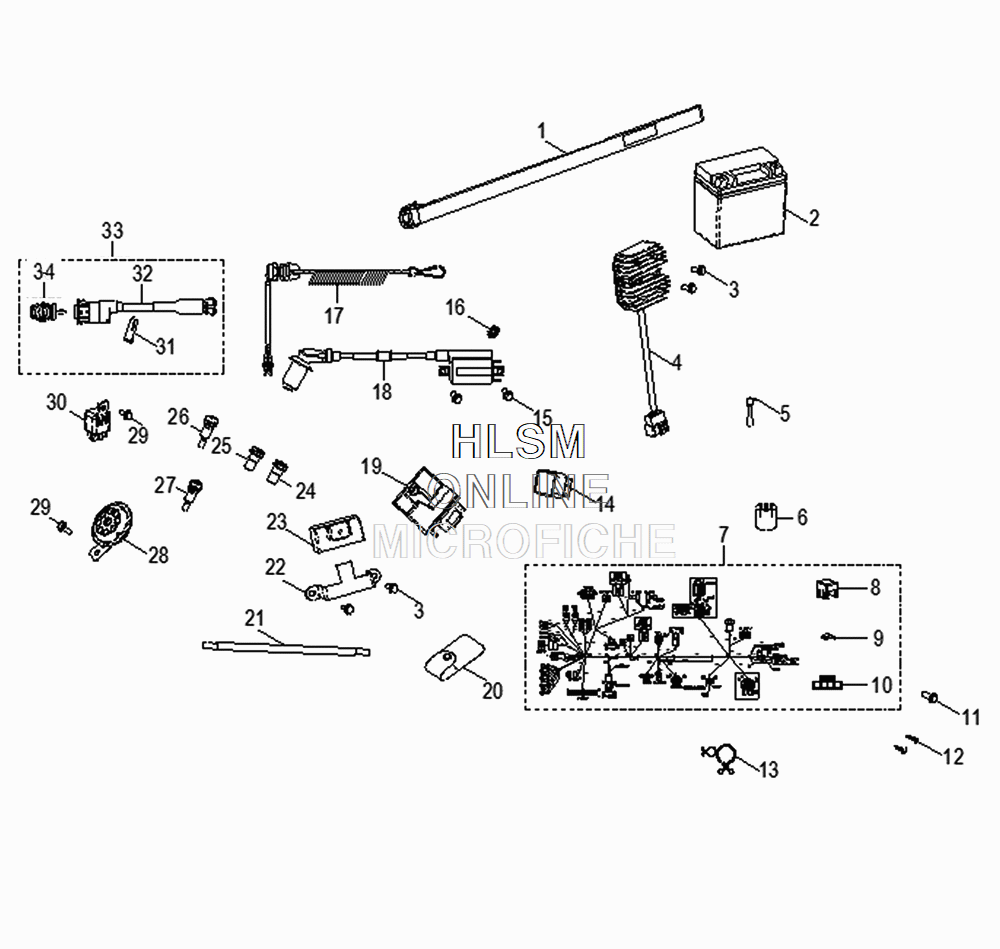

ELECTRICAL COMPONENTS для Polaris SPORTSMAN® 110 (SAGE GREEN) [A16YAF11AA] - 2016 года выпуска
-
№АртикулНазвание
-
10453501 WRISTBAND, SAFETYWRISTBAND, SAFETY
-
24011181 BATTERY, YOUTHBATTERY, YOUTH
-
30453518 BOLTBOLT
-
40455032 RECTIFIER, REGULATORRECTIFIER, REGULATOR
-
50450891 GAUGE, TIRE PRESSUREGAUGE, TIRE PRESSURE
-
60455027 DUST COVERDUST COVER
-
70455151 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
80453488 STARTER, RELAYSTARTER, RELAY
-
90450890 WASHER, STARWASHER, STAR
-
100451693 SWITCH, SAFETYSWITCH, SAFETY
-
110455029 ASM., IGNITION COILASM., IGNITION COIL
-
120455152 ECUECU
-
130454703 PUCH, TOOLPUCH, TOOL
-
140453518 BOLTBOLT
-
150455033 CLAMPCLAMP
-
160455153 HOSEHOSE
-
170455154 BRACKET, ECUBRACKET, ECU
-
180455155 PAD, RUBBERPAD, RUBBER
-
190454655 INDICATOR, REVERSEINDICATOR, REVERSE
-
200454654 INDICATOR, NEUTRALINDICATOR, NEUTRAL
-
210455024 INDICATOR, LOW FUELINDICATOR, LOW FUEL
-
220450701 BOLTBOLT
-
230455023 TROUBLE INDICATORTROUBLE INDICATOR
-
240451695 HORNHORN
-
250455030 RELAY, EFIRELAY, EFI
-
260450549 CLIP, MAIN SWITCHCLIP, MAIN SWITCH
-
280453487 ASM., MAIN SWITCHASM., MAIN SWITCH
-
290453143 KEY BLANK, RHKEY BLANK, RH
-
290453372 KEY BLANK, LHKEY BLANK, LH
