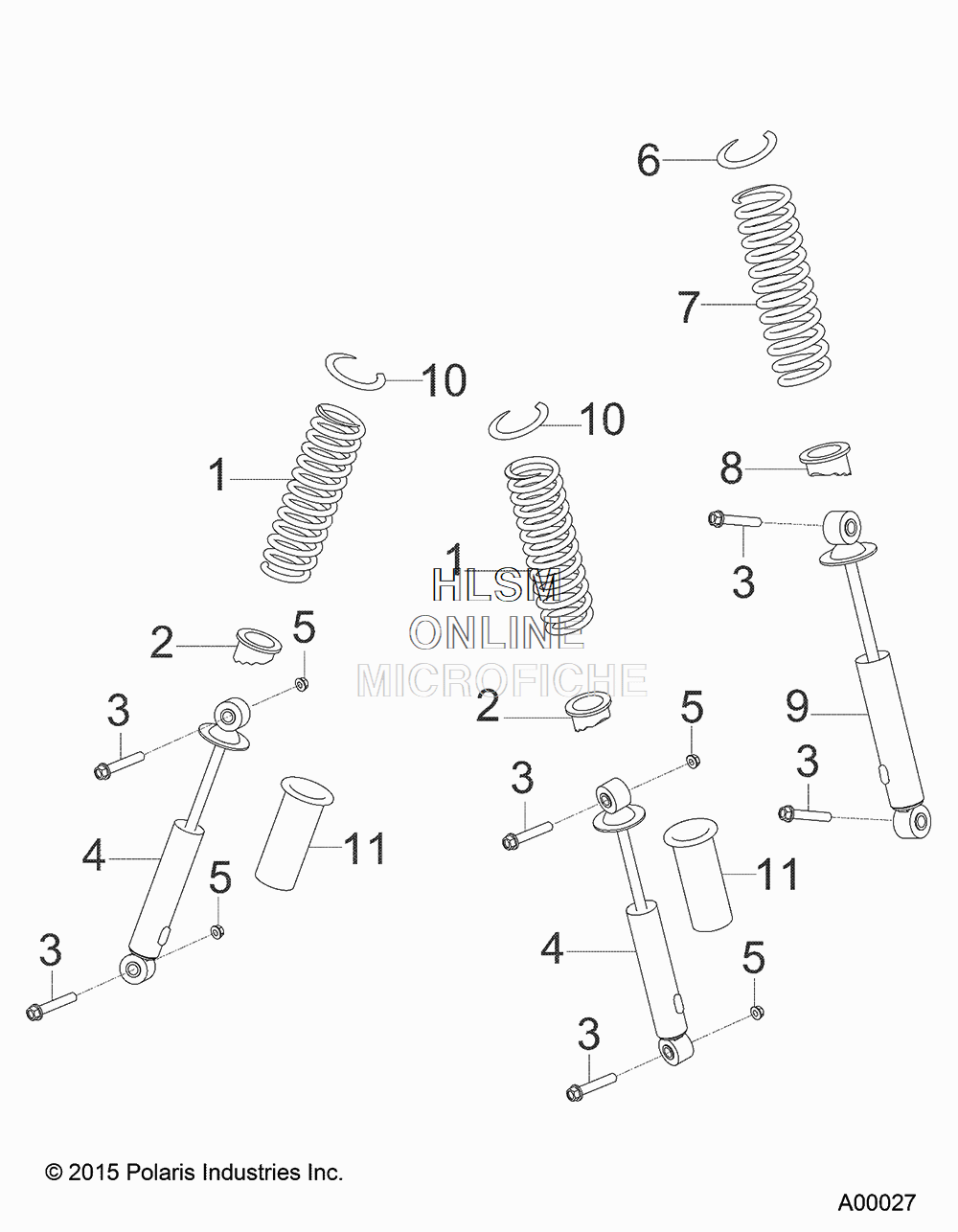

SUSPENSION - SHOCKS для Polaris SPORTSMAN® 110 (SAGE GREEN) [A16YAF11AA] - 2016 года выпуска
-
№АртикулНазвание
-
10454644-067 SPRING, SUSPENSION, FRONT, BLACKSPRING, SUSPENSION, FRONT, BLACK
-
20453701 COLLAR, ADJUSTING, SPRING, FRONTCOLLAR, ADJUSTING, SPRING, FRONT
-
30450380 BOLT, HEXBOLT, HEX
-
40454645 SHOCK, FRONT ((INCL. 2))SHOCK, FRONT ((INCL. 2))
-
50450249 NUT, FLANGENUT, FLANGE
-
60453702 RETAINER, SPRINGRETAINER, SPRING
-
70454213-067 SPRING, SUSPENSION, REAR, BLACKSPRING, SUSPENSION, REAR, BLACK
-
70453703-067 SPRING, SUSPENSION, REAR, BLACK ((OPT.) (HEAVY))SPRING, SUSPENSION, REAR, BLACK ((OPT.) (HEAVY))
-
80453704 COLLAR, ADJUSTMENTCOLLAR, ADJUSTMENT
-
90454214 SHOCK, REARSHOCK, REAR
-
100454869 RETAINER, SUSPENSION, FRONTRETAINER, SUSPENSION, FRONT
