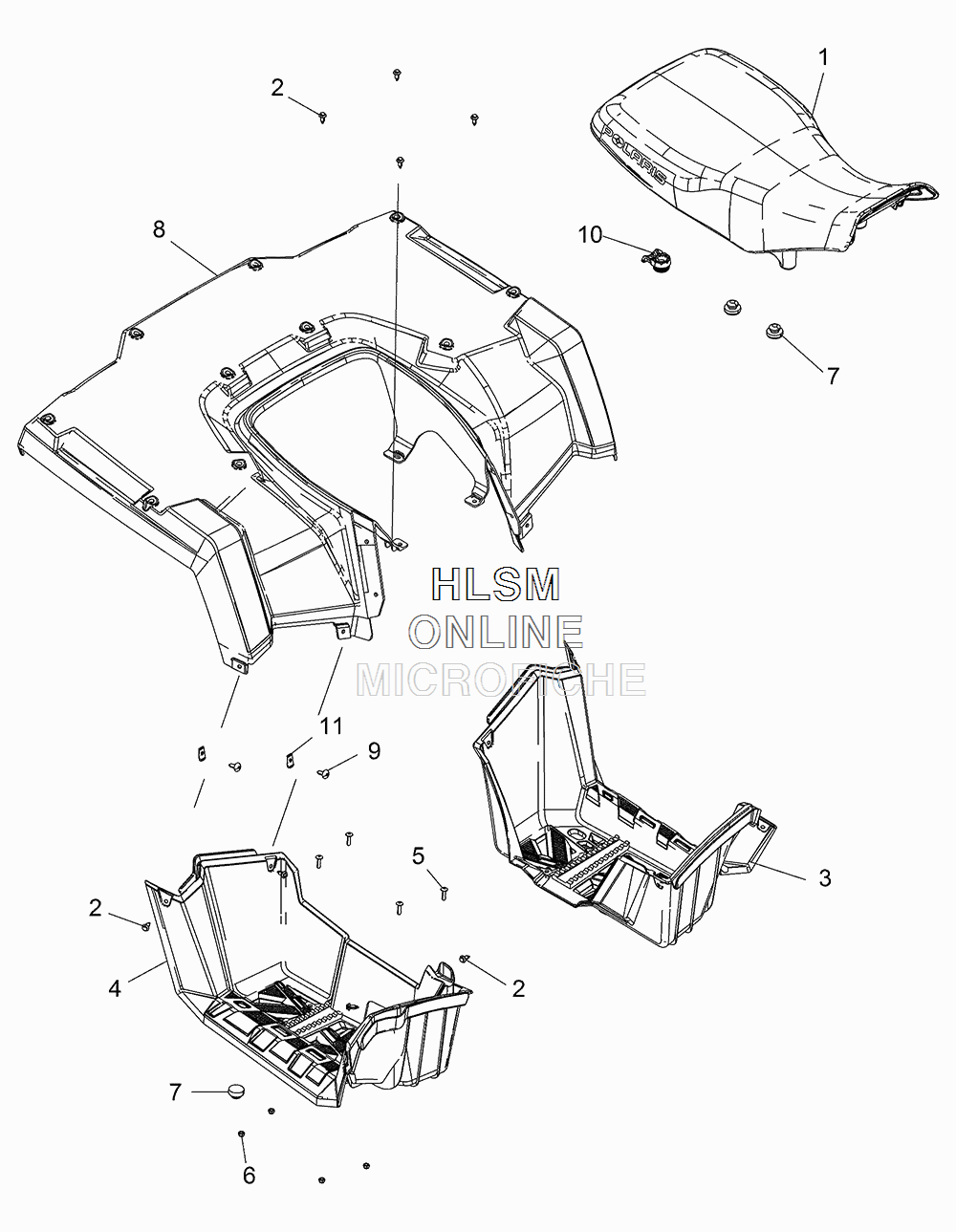

CAB - REAR - SEAT W/FOOTWELLS для Polaris SPORTSMAN® 570 SP (SUNSET RED) [A16SHE57AS] - 2016 года выпуска
-
№АртикулНазвание
-
12686695-070 ASM-SEAT, 1UP, BLACK ((INCL. 7, COVER) (AM) (AS))ASM-SEAT, 1UP, BLACK ((INCL. 7, COVER) (AM) (AS))
-
12686207 ASM-COVER, SEAT, STX, WHITE DECAL ((AM) (AS))ASM-COVER, SEAT, STX, WHITE DECAL ((AM) (AS))
-
27661855 RIVETRIVET
-
35450523-070 FOOTWELL, BLACK, LHFOOTWELL, BLACK, LH
-
45450524-070 FOOTWELL, BLACK, RHFOOTWELL, BLACK, RH
-
57517230 SCREWSCREW
-
67542122 NUT, NYLOKNUT, NYLOK
-
75412067 BUMPER, RUBBERBUMPER, RUBBER
-
82635396-520 ASM., CAB, REAR, SUNSET RED ((INCL. REFLECTORS) (AS))ASM., CAB, REAR, SUNSET RED ((INCL. REFLECTORS) (AS))
-
97518280 SCREWSCREW
-
105415539 GROMMET, SEAT LATCHGROMMET, SEAT LATCH
-
117670145 NUT, U-TYPENUT, U-TYPE
