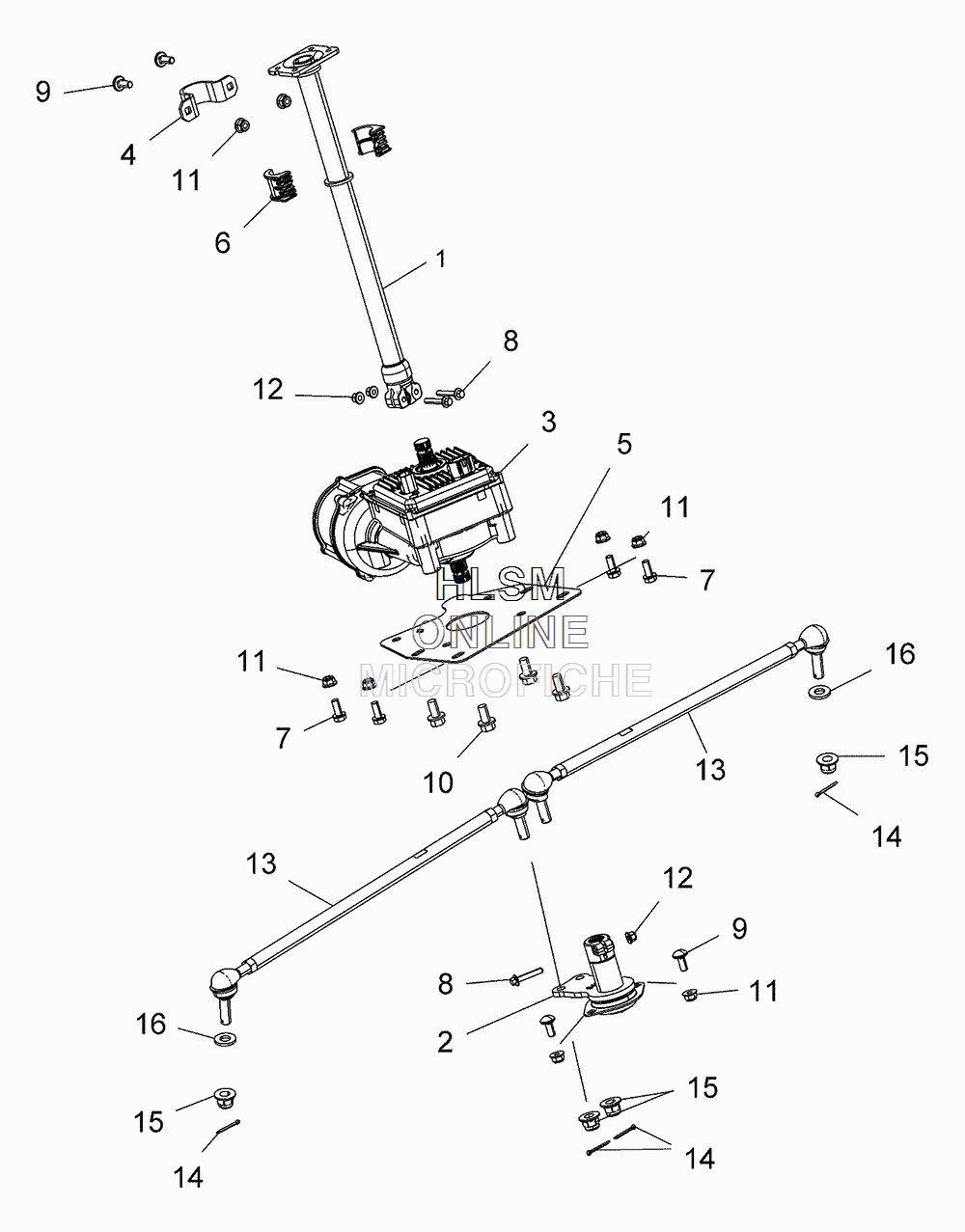

STEERING ASM. - EPS для Polaris SPORTSMAN® 570 SP (SUNSET RED) [A16SHE57AS] - 2016 года выпуска
-
№АртикулНазвание
-
11824202-329 POST, STEERING, UPPER, BLACKPOST, STEERING, UPPER, BLACK
-
21824203 ASM., STEERING POST, LOWERASM., STEERING POST, LOWER
-
32413344 ASM., POWER STEERINGASM., POWER STEERING
-
45257028 BRACKET, UPPER STEERING BUSHINGBRACKET, UPPER STEERING BUSHING
-
55259190-329 PLATE, MOUNT, POWER STEERINGPLATE, MOUNT, POWER STEERING
-
65438903 BUSHING, UPPER STEERINGBUSHING, UPPER STEERING
-
77515398 SCREWSCREW
-
87516827 SCREWSCREW
-
97517428 BOLT, CARRIAGEBOLT, CARRIAGE
-
107518558 BOLTBOLT
-
117542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
127547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
131824206 ASM., TIE RODASM., TIE ROD
-
147661203 PIN, COTTERPIN, COTTER
-
157547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
167556153 WASHER, FLATWASHER, FLAT
