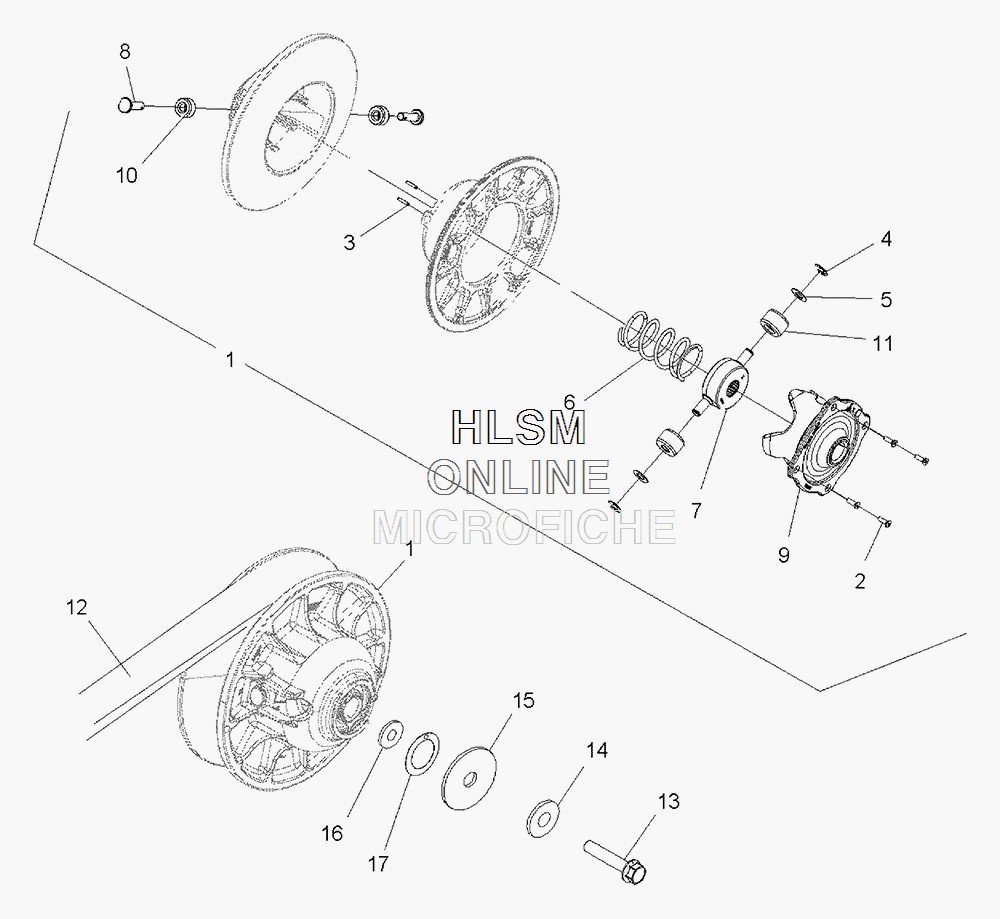

CLUTCH - SECONDARY для Polaris SPORTSMAN® 850 SP (TITANIUM MATTE METALLIC) [A16SXE85AM] - 2016 года выпуска
-
№АртикулНазвание
-
11323222 CLUTCH, DRIVEN ((INCL. 2-11))CLUTCH, DRIVEN ((INCL. 2-11))
-
23234754 SCREWSCREW
-
33234202 PIN, SPRING SLOTTEDPIN, SPRING SLOTTED
-
43235087 RING, RETAININGRING, RETAINING
-
53234642 WASHER, THRUSTWASHER, THRUST
-
63235088 SPRING, DRIVENSPRING, DRIVEN
-
73235089 SPIDERSPIDER
-
83234201 PIN, ROLLERPIN, ROLLER
-
93235630 ASM., CAMASM., CAM
-
113235093 ROLLER, CLUTCHROLLER, CLUTCH
-
123211160 BELT, DRIVEBELT, DRIVE
-
137519210 BOLT, FLANGEBOLT, FLANGE
-
145137414 WASHER, FLATWASHER, FLAT
-
155137415 WASHER, FLATWASHER, FLAT
-
167556580 WASHER, FLATWASHER, FLAT
-
177556553 WASHER, THRUSTWASHER, THRUST
