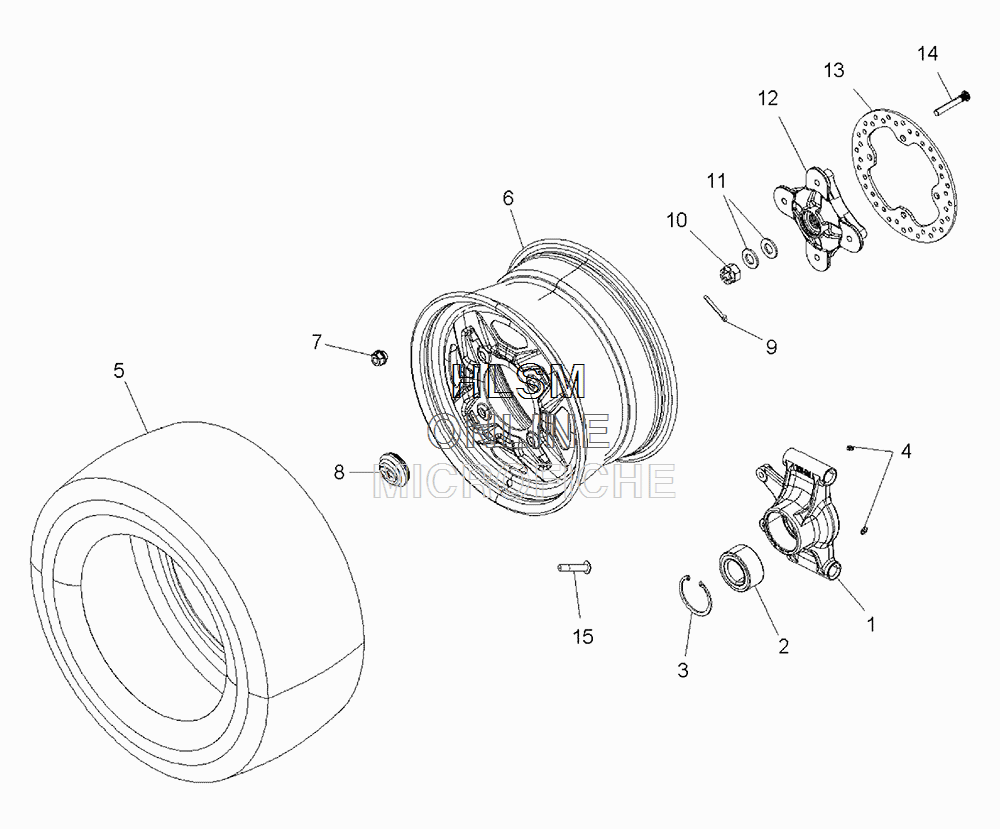

WHEEL - REAR W/ HUB для Polaris SPORTSMAN® 850 SP (TITANIUM MATTE METALLIC) [A16SXE85AM] - 2016 года выпуска
-
№АртикулНазвание
-
15136689 CARRIER, BEARING, LHCARRIER, BEARING, LH
-
15136690 CARRIER, BEARING, RHCARRIER, BEARING, RH
-
23514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
37710440 RING, RETAININGRING, RETAINING
-
47080424 FITTING, LUBRICATINGFITTING, LUBRICATING
-
55415601 TIRE-26X10-14TIRE-26X10-14
-
61521911-067 RIM, REAR, BLACKRIM, REAR, BLACK
-
77547363 NUT, WHEELNUT, WHEEL
-
85413792 CAP, DUSTCAP, DUST
-
97661404 PIN, COTTERPIN, COTTER
-
107547406 NUT, CASTLENUT, CASTLE
-
117555796 WASHER, CONEWASHER, CONE
-
125136946 HUB, WHEELHUB, WHEEL
-
135250205 DISC, BRAKEDISC, BRAKE
-
147518671 STUD, WHEELSTUD, WHEEL
-
151525017 VALVE, RIMVALVE, RIM
