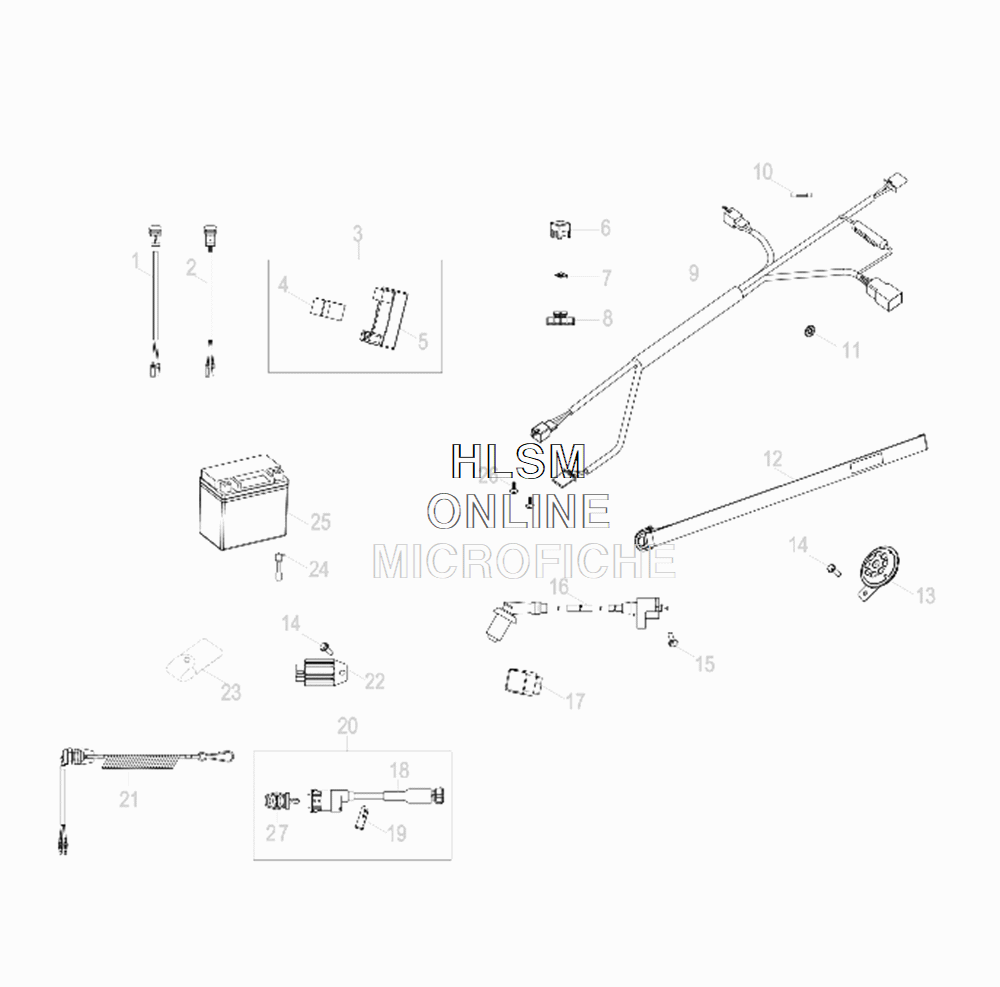

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 90 [A16YAF09AA] - 2016 года выпуска
-
№АртикулНазвание
-
10454654 INDICATORINDICATOR
-
20454655 INDICATOR, REVERSEINDICATOR, REVERSE
-
30455191 ASM., CDI UNIT [INCL. 4,5]ASM., CDI UNIT [INCL. 4,5]
-
40453473 PAD, RUBBER, CDIPAD, RUBBER, CDI
-
60455189 RUBBER CAPRUBBER CAP
-
70451019 JUMPERJUMPER
-
80455188 TERMINAL BOARD, SPEED CONTROLTERMINAL BOARD, SPEED CONTROL
-
90455192 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
100453523 FUSEFUSE
-
110450890 WASHER, STARWASHER, STAR
-
120453501 WRISTBANDWRISTBAND
-
130451695 HORNHORN
-
140450701 BOLT-HEX WASHERBOLT-HEX WASHER
-
150452763 BOLT-HEX,SEMSBOLT-HEX,SEMS
-
160452309 ASM-COIL,IGNITIONASM-COIL,IGNITION
-
170453488 ASM-STARTER RELAY,PROTONASM-STARTER RELAY,PROTON
-
190450549 CLIP-MAIN SWITCH,SILVERCLIP-MAIN SWITCH,SILVER
-
200453487 ASM-SWITCH,MAIN [INC. 18,19, 27]ASM-SWITCH,MAIN [INC. 18,19, 27]
-
210451693 SWITCH,SAFETYSWITCH,SAFETY
-
220454003 RECTIFIER/REGULATOR-VOLTAGE 07RECTIFIER/REGULATOR-VOLTAGE 07
-
230454703 TOOL POUCH-YOUTHTOOL POUCH-YOUTH
-
240450891 GAUGE-TIRE 42620-131-000GAUGE-TIRE 42620-131-000
-
254011181 BATTERY-YUASA YTX5L,YOUTHBATTERY-YUASA YTX5L,YOUTH
-
260455026 SCREWSCREW
-
270453372 KEY-BLANK,2006,LEFT HAND,GRVKEY-BLANK,2006,LEFT HAND,GRV
-
270453143 KEY-BLANK,2006,RIGHT HAND GRVKEY-BLANK,2006,RIGHT HAND GRV
