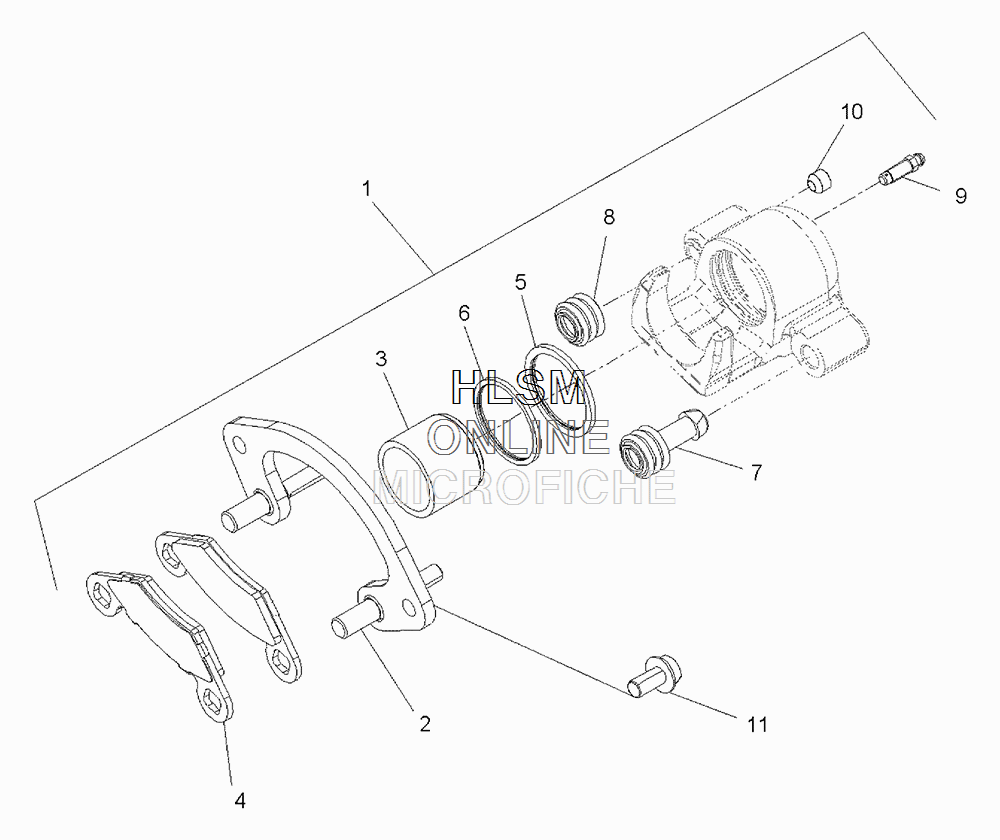

BRAKE - REAR CALIPER для Polaris SPORTSMAN XP® 1000 (HAVASU RED PEARL) [A16SXE95AR] - 2016 года выпуска
-
№АртикулНазвание
-
11911301 ASM., BRAKE CALIPER, LEFT HAND ((INCL. 1-10))ASM., BRAKE CALIPER, LEFT HAND ((INCL. 1-10))
-
11911302 ASM., BRAKE CALIPER, RIGHT HAND ((INCL. 1-10))ASM., BRAKE CALIPER, RIGHT HAND ((INCL. 1-10))
-
21911225 ASM., CALIPER MOUNTASM., CALIPER MOUNT
-
35132405 PISTON, CALIPERPISTON, CALIPER
-
42203628 KIT, BRAKE PAD ((INCL. 2 PADS))KIT, BRAKE PAD ((INCL. 2 PADS))
-
55411596 SEAL, CALIPER, INNERSEAL, CALIPER, INNER
-
65411597 SEAL, CALIPER, OUTERSEAL, CALIPER, OUTER
-
75412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
85412506 BOOT, PIN SEALBOOT, PIN SEAL
-
97081343 SCREW, BLEEDERSCREW, BLEEDER
-
107518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
117518760 BOLT, FLANGE ((CALIPER MOUNTING))BOLT, FLANGE ((CALIPER MOUNTING))
