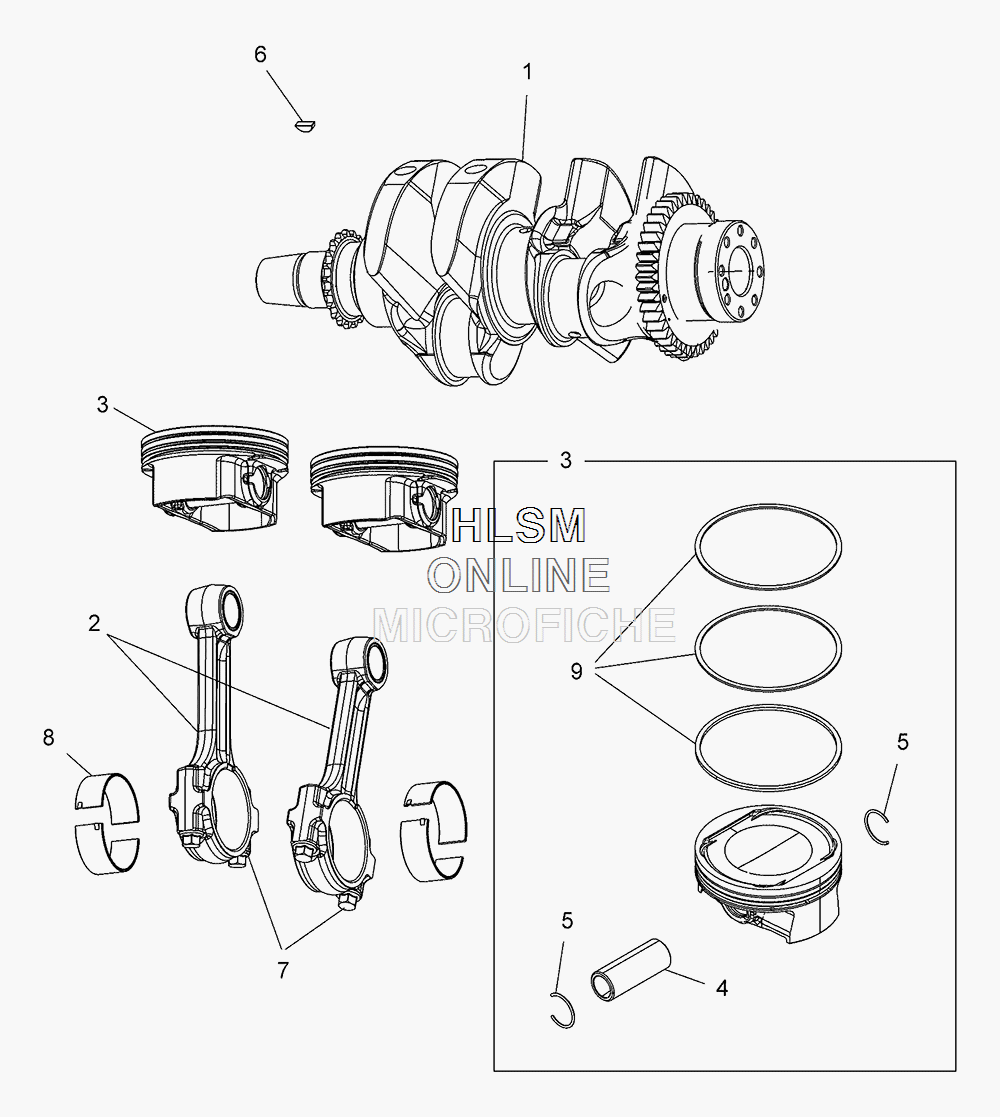

CRANKSHAFT W/ CYLINDER для Polaris SPORTSMAN XP® 1000 (HAVASU RED PEARL) [A16SXE95AR] - 2016 года выпуска
-
№АртикулНазвание
-
12205143 KIT, CRANKSHAFT ((INCL. 4, CRANK, MAIN BEARINGS))KIT, CRANKSHAFT ((INCL. 4, CRANK, MAIN BEARINGS))
-
22204634 KIT, CONNECTING ROD ((INCL. 7,8, ROD, CAP, BUSHING))KIT, CONNECTING ROD ((INCL. 7,8, ROD, CAP, BUSHING))
-
27556569 BUSHING, PISTON PINBUSHING, PISTON PIN
-
32205145 KIT, PISTON ((INCL. PISTON, PIN, CLIPS, ALL RINGS))KIT, PISTON ((INCL. PISTON, PIN, CLIPS, ALL RINGS))
-
67721122 KEY, WOODRUFFKEY, WOODRUFF
-
77519263 BOLTBOLT
-
83514645 BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
83514645-015 BEARING, CONNECTING ROD, REDBEARING, CONNECTING ROD, RED
-
83514645-016 BEARING, CONNECTING ROD, WHITEBEARING, CONNECTING ROD, WHITE
-
83514645-027 BEARING, CONNECTING ROD, BLUEBEARING, CONNECTING ROD, BLUE
-
83514645-053 BEARING, CONNECTING ROD, YELLOWBEARING, CONNECTING ROD, YELLOW
-
92205146 KIT, PISTON RINGS ((CONTAINS UPPER, LOWER, OIL CONTROL RING))KIT, PISTON RINGS ((CONTAINS UPPER, LOWER, OIL CONTROL RING))
