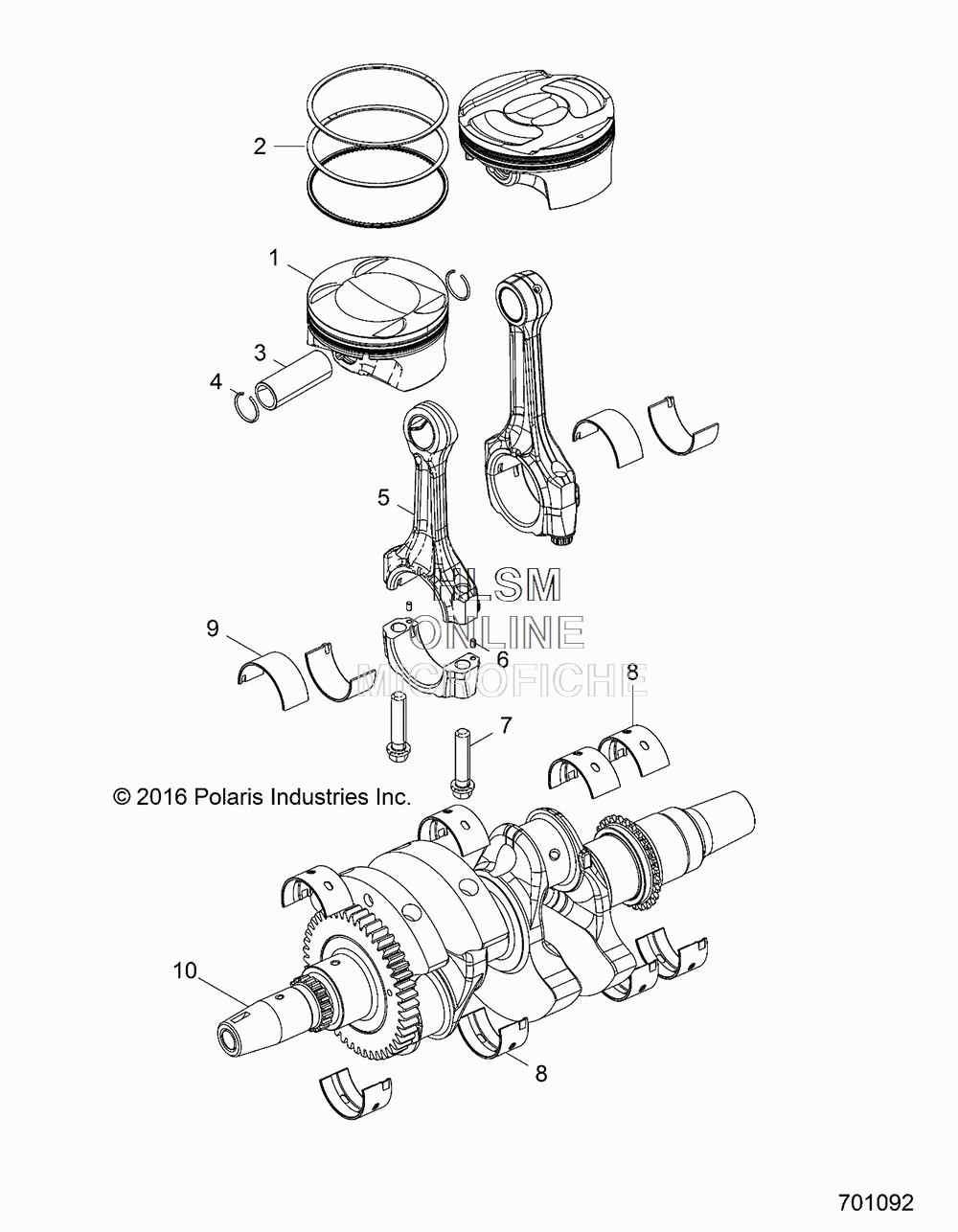

CRANKSHAFT AND PISTON для Polaris RZR 900 TRACTOR (WHITE LIGHTNING) [PZ17VBS87C2] - 2017 года выпуска
-
№АртикулНазвание
-
12205244 KIT, PISTON [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]KIT, PISTON [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]
-
22205245 KIT, PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]KIT, PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]
-
33022358 PIN, PISTONPIN, PISTON
-
43022413 RING, RETAININGRING, RETAINING
-
53022893 ASM., CONNECTING ROD, FORGED [INCL. 6,7]ASM., CONNECTING ROD, FORGED [INCL. 6,7]
-
67661972 PIN-DOWEL-SOL-M3X5 SUJ2PIN-DOWEL-SOL-M3X5 SUJ2
-
77520349 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
83514662-001 BEARING, MAIN, WHITEBEARING, MAIN, WHITE
-
83514662-002 BEARING, MAIN, BLUEBEARING, MAIN, BLUE
-
83514662-003 BEARING, MAIN, GREENBEARING, MAIN, GREEN
-
83514662-004 BEARING, MAIN, YELLOWBEARING, MAIN, YELLOW
-
83514662-005 BEARING, MAIN, REDBEARING, MAIN, RED
-
93514663-001 BEARING, CONNECTING ROD, WHITEBEARING, CONNECTING ROD, WHITE
-
93514663-002 BEARING, CONNECTING ROD, BLUEBEARING, CONNECTING ROD, BLUE
-
93514663-003 BEARING, CONNECTING ROD, GREENBEARING, CONNECTING ROD, GREEN
-
93514663-004 BEARING, CONNECTING ROD, YELLOWBEARING, CONNECTING ROD, YELLOW
-
103022793 ASM., CRANKSHAFTASM., CRANKSHAFT
