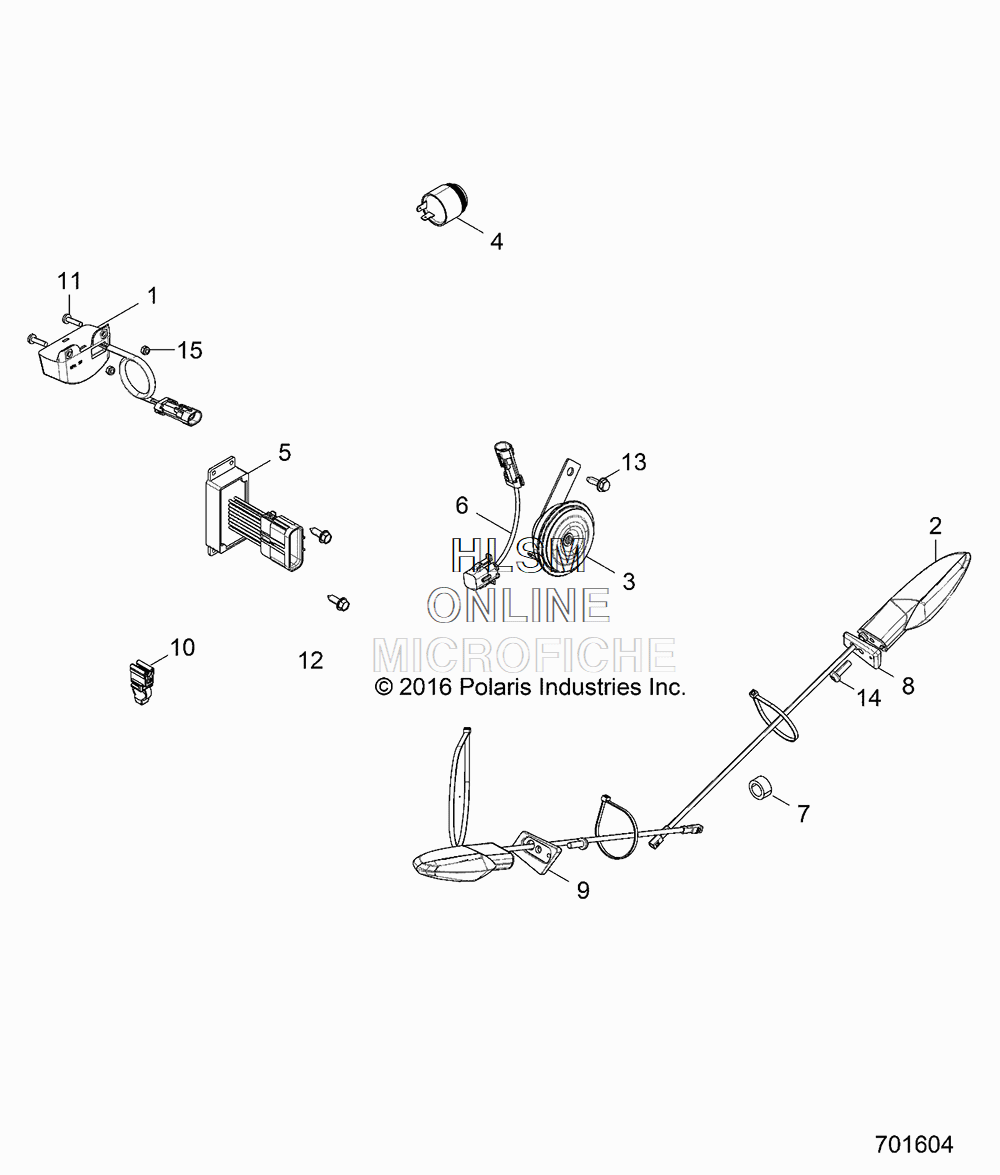

ELECTRICAL - ACCESSORY COMPONENTS для Polaris RZR 900 TRACTOR (WHITE LIGHTNING) [PZ17VBS87C2] - 2017 года выпуска
-
№АртикулНазвание
-
12411278 LIGHT-LICENSE PLATE,TRACTR,BLKLIGHT-LICENSE PLATE,TRACTR,BLK
-
22413531 SIGNAL-TURN,FRONT,TRSIGNAL-TURN,FRONT,TR
-
34011579 HORN-DISCHORN-DISC
-
44013211 ALARM-BRAKE,WARNING [C2][CB]ALARM-BRAKE,WARNING [C2][CB]
-
54016552 MODULE-FLASH,TURN,TRAILER,TRCMODULE-FLASH,TURN,TRAILER,TRC
-
64016811 JUMPER,BRAKE SWITCH,RZR,TR [C2][CB]JUMPER,BRAKE SWITCH,RZR,TR [C2][CB]
-
75134403 SPCR-LP LIGHT,5.0X8.0X4.0,ALSPCR-LP LIGHT,5.0X8.0X4.0,AL
-
85414650 MOUNT-BLINKER,LEFT HANDMOUNT-BLINKER,LEFT HAND
-
95414664 MOUNT-BLINKER,RIGHT HANDMOUNT-BLINKER,RIGHT HAND
-
107081808 STRAP-CABLE TIE W/EDGE CLIPSTRAP-CABLE TIE W/EDGE CLIP
-
117512018 SCR-#10-24X3/4,PN/TR RD-TORX-YSCR-#10-24X3/4,PN/TR RD-TORX-Y
-
127517411 SCR-M4.2X9.5,DIN7981,TYPE F,SSSCR-M4.2X9.5,DIN7981,TYPE F,SS
-
137518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BKSCR-M6X1.0X20,HXHD,FLG,TDFM,BK
-
147518546 SCR-M6X1.0X20MM,TX,PH,8.8-BSCR-M6X1.0X20MM,TX,PH,8.8-B
-
157546601 NUT-M5X.8,HX NYL-YNUT-M5X.8,HX NYL-Y
