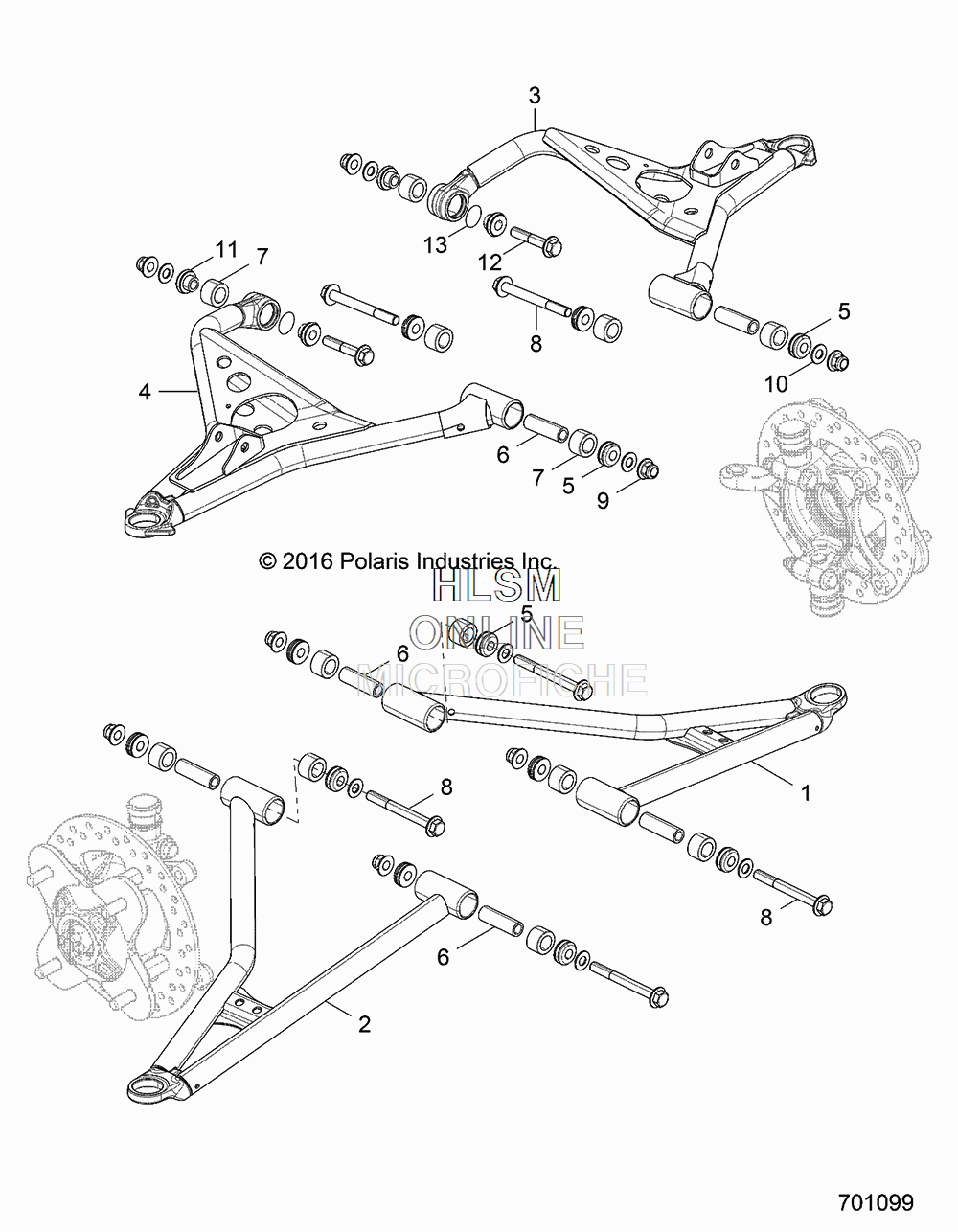

CONTROL ARMS - FRONT для Polaris RZR 900 (WHITE LIGHT) [Z17VAA87A2] - 2017 года выпуска
-
№АртикулНазвание
-
11021404-458 WELD-CTRL ARM, LOWER, FRT, LEFT HAND, 50, (BLACK)WELD-CTRL ARM, LOWER, FRT, LEFT HAND, 50, (BLACK)
-
21021405-458 WELD-CTRL ARM, LOWER, FRT, RIGHT HAND, 50, (BLACK)WELD-CTRL ARM, LOWER, FRT, RIGHT HAND, 50, (BLACK)
-
31021406-458 WELD-CTRL ARM, UPPER, FRT, LEFT HAND, 50, (BLACK)WELD-CTRL ARM, UPPER, FRT, LEFT HAND, 50, (BLACK)
-
41021407-458 WELD-CTRL ARM, UPPER, FRT, RIGHT HAND, 50, (BLACK)WELD-CTRL ARM, UPPER, FRT, RIGHT HAND, 50, (BLACK)
-
51543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
65139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
75452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
-
87519043 SCREW, HEX FLANGESCREW, HEX FLANGE
-
97547333 NUTNUT
-
107556153 WASHERWASHER
-
111543735 ASM-PIVOT CAP, SEALED, SLIM, M10ASM-PIVOT CAP, SEALED, SLIM, M10
-
127519285 SCREW, HEX FLANGESCREW, HEX FLANGE
-
137710845 28MM SPIRAL RING, STEEL28MM SPIRAL RING, STEEL
