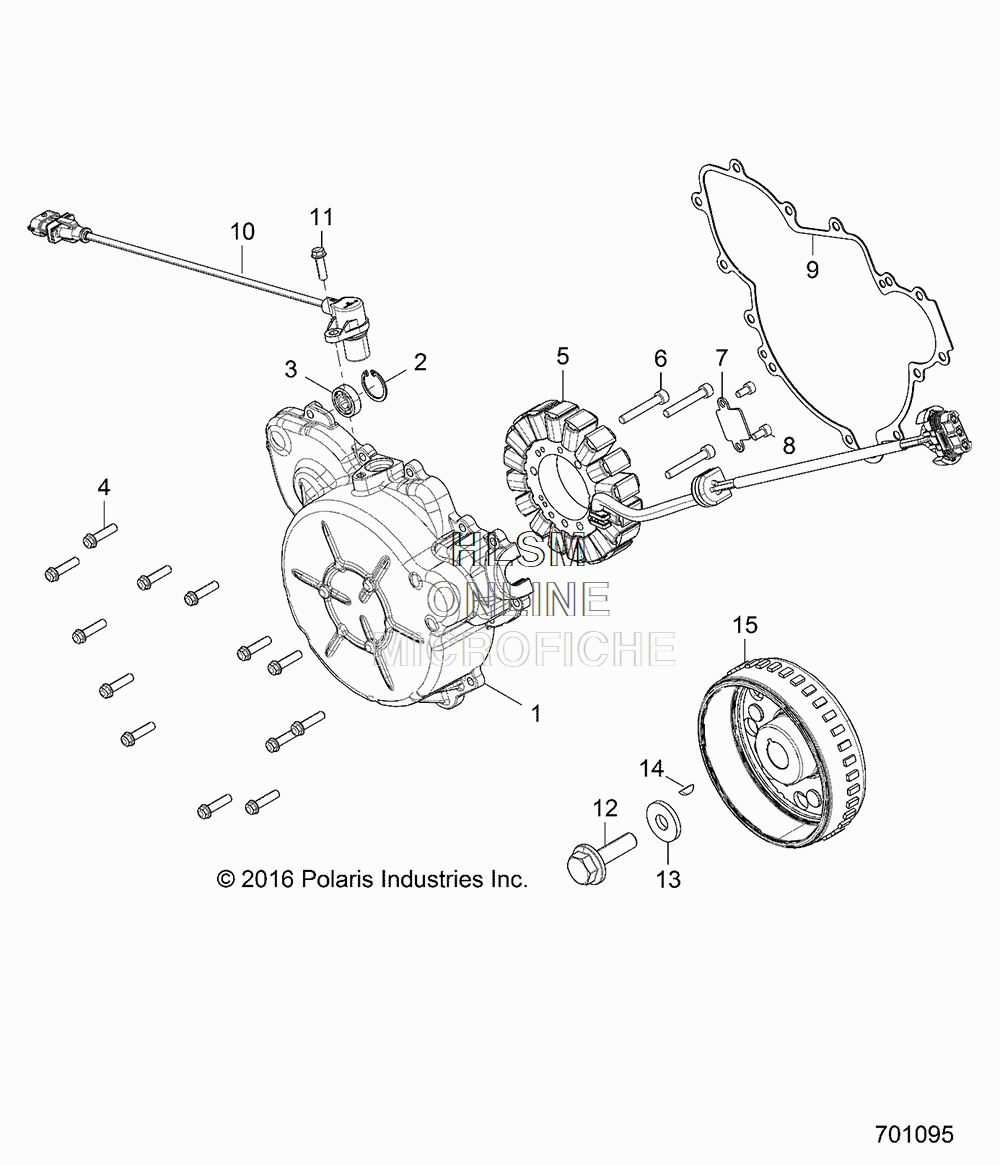

ENGINE- STATOR AND COVER для Polaris RZR 900 (WHITE LIGHT) [Z17VAA87A2] - 2017 года выпуска
-
№АртикулНазвание
-
11204518 ASM., IGNITION COVER, STARTER BEARING (INCL. 2,3)ASM., IGNITION COVER, STARTER BEARING (INCL. 2,3)
-
27710654 RING, SNAPRING, SNAP
-
33514717 BEARING, BALLBEARING, BALL
-
47519297 SCREWSCREW
-
54014406 STATORSTATOR
-
67510005 SCREWSCREW
-
75255473 BRACKET, RETAINER, WIREBRACKET, RETAINER, WIRE
-
87517847 SCREWSCREW
-
95814160 GASKET, COVER, MAGGASKET, COVER, MAG
-
102411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
117518576 SCREWSCREW
-
127520178 SCREWSCREW
-
137556885 WSHR-32X12X4,HARDWSHR-32X12X4,HARD
-
147721122 KEY, WOODRUFFKEY, WOODRUFF
-
154014404 FLYWHEELFLYWHEEL
