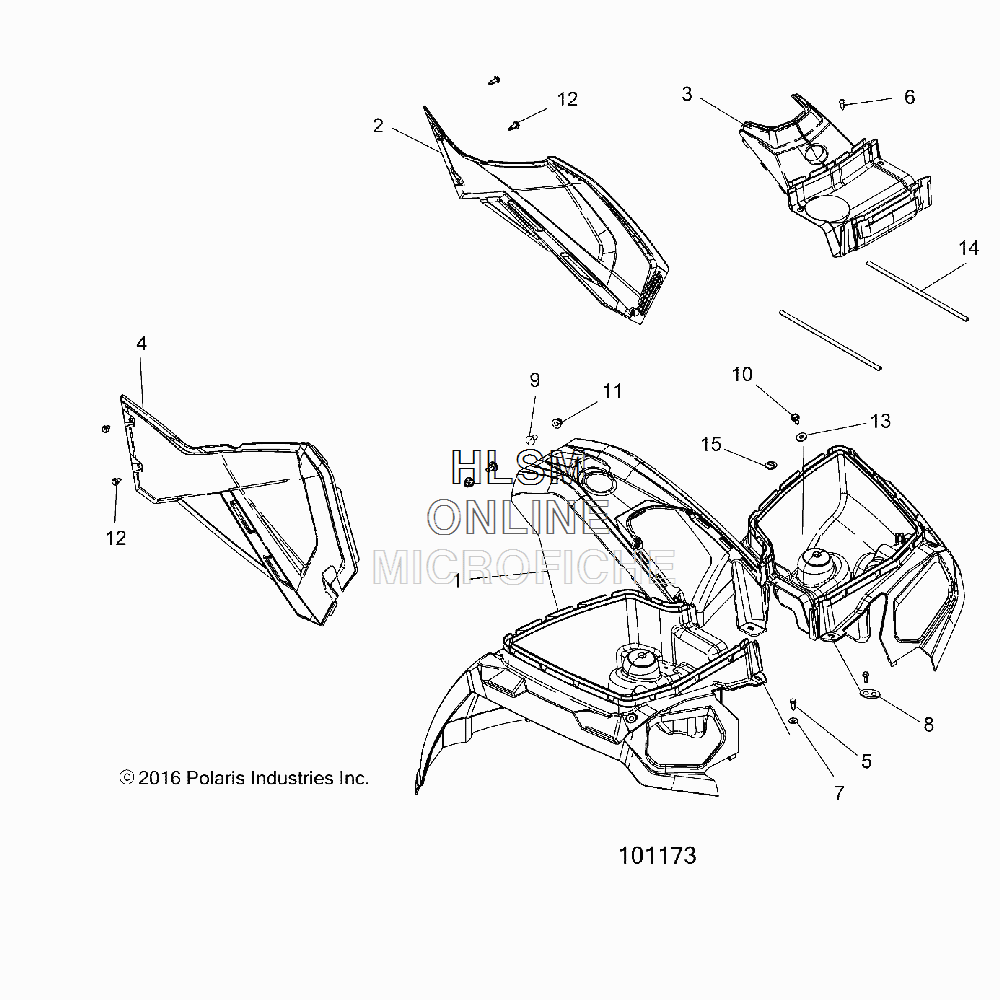

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 EFI UTE VELOCITY BLUE [A17SUH57N5] - 2017 года выпуска
-
№АртикулНазвание
-
12636528-689 ASM-CAB FR,SVC,VELOCITY BLUE [INCL. WARNING DECALS]ASM-CAB FR,SVC,VELOCITY BLUE [INCL. WARNING DECALS]
-
25450530-689 PANEL-SIDE,LH,VEL BLUEPANEL-SIDE,LH,VEL BLUE
-
35439069-689 COVER-FRONT,VELOCITY BLUE,HDPECOVER-FRONT,VELOCITY BLUE,HDPE
-
42636442-689 ASM-PANEL/SHIELD,RH,TRG,V.BLUEASM-PANEL/SHIELD,RH,TRG,V.BLUE
-
57512232 SCREWSCREW
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107515399 SCREWSCREW
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-350 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
