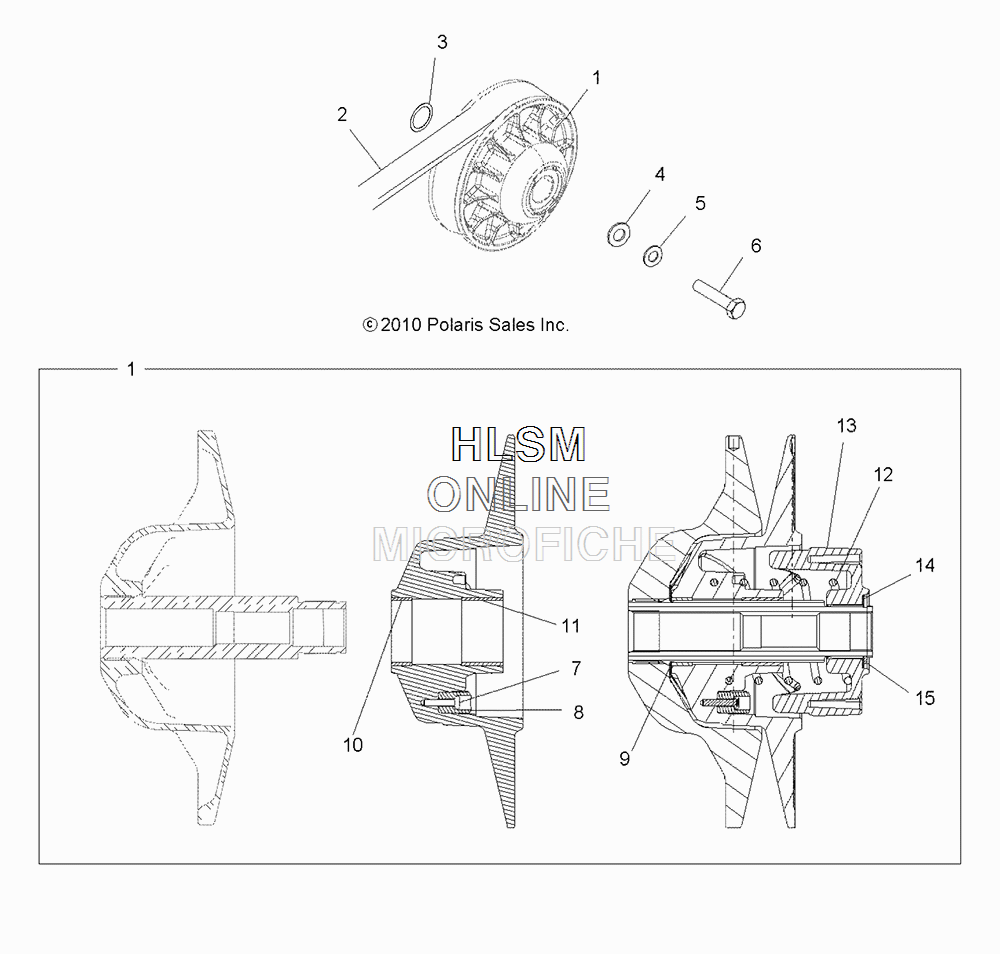

CLUTCH - SECONDARY для Polaris SPORTSMAN 570 EPS ZUG SAGE BRUSH GREEN METALLIC [A17SES57F1] - 2017 года выпуска
-
№АртикулНазвание
-
11322960 ASM., DRIVEN CLUTCH, BLACK [INCL. 1-15]ASM., DRIVEN CLUTCH, BLACK [INCL. 1-15]
-
23211113 BELT, DRIVE, EBSBELT, DRIVE, EBS
-
37556120 BUSHING, 16 GAUGEBUSHING, 16 GAUGE
-
37556813 BUSHING, 7 GAUGEBUSHING, 7 GAUGE
-
37556454 WASHER-.906 X 1.38 X 22 GAWASHER-.906 X 1.38 X 22 GA
-
45250562 WASHER, DOMEDWASHER, DOMED
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67515327 BOLTBOLT
-
77520176 BOLTBOLT
-
85450873 BUTTONBUTTON
-
97555898 WASHER, .020WASHER, .020
-
97556076 WASHER, .025WASHER, .025
-
97556804 WASHER, .030WASHER, .030
-
103576504 BEARING, MOVEABLE, 1/2 INCHBEARING, MOVEABLE, 1/2 INCH
-
113576511 BEARING, MOVEABLE, 1 INCHBEARING, MOVEABLE, 1 INCH
-
127041782 SPRING, CLUTCHSPRING, CLUTCH
-
135132344 RAMP, STATIONARYRAMP, STATIONARY
-
145244116 SPACER, .020SPACER, .020
-
157710448 RING, RETAININGRING, RETAINING
