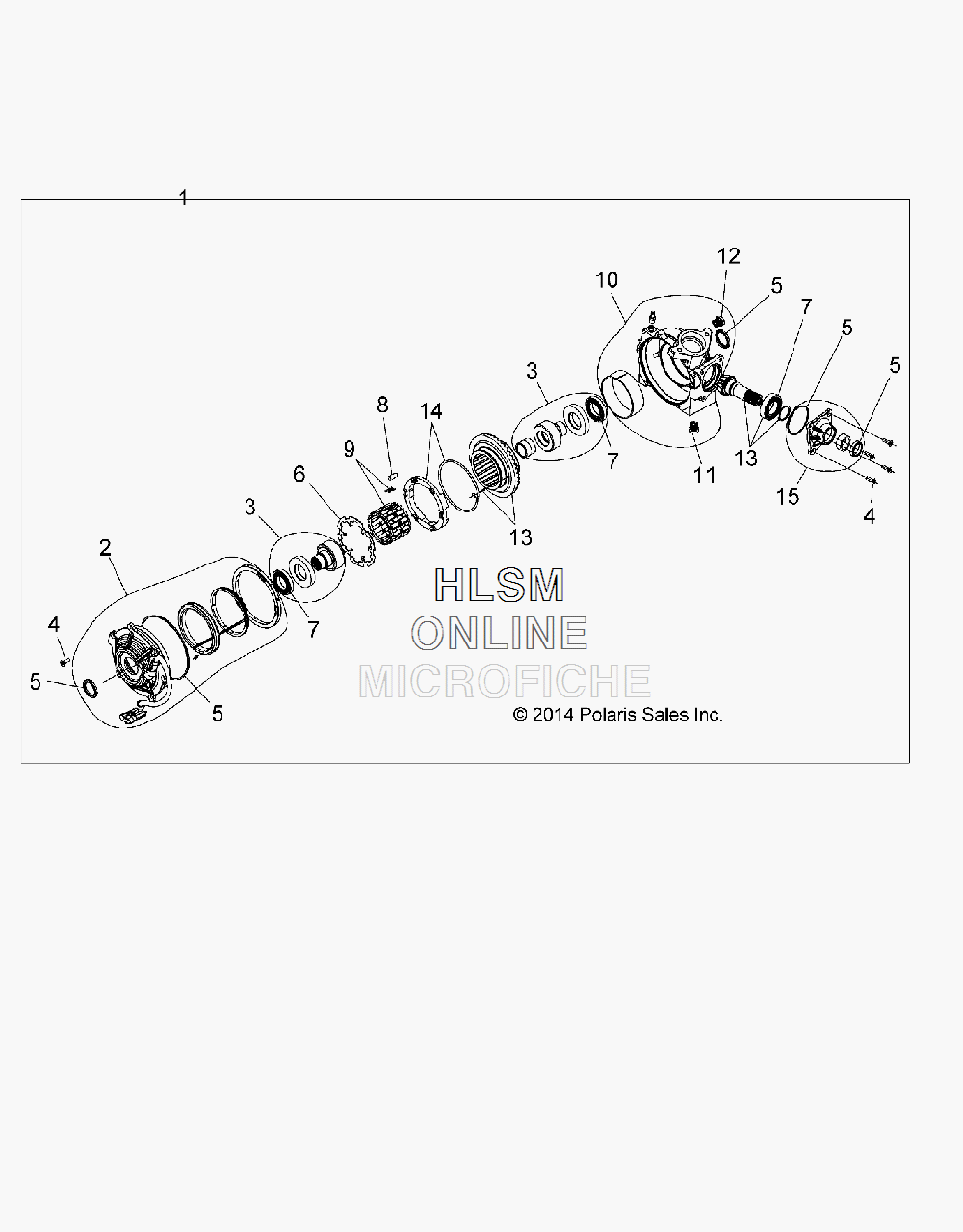

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SPORTSMAN 850 SP SAGE BRUSH GREEN [A17SXA85A1] - 2017 года выпуска
-
№АртикулНазвание
-
11333569 ASM., GEARCASE, FRONT [INCL. ALL]ASM., GEARCASE, FRONT [INCL. ALL]
-
23235634 ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]
-
33235911 KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]
-
43235433 KIT, FASTENERS [INCL. QTY 10 SCREWS]KIT, FASTENERS [INCL. QTY 10 SCREWS]
-
53235434 COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]
-
63235485 PLATE, 4WD ARMATUREPLATE, 4WD ARMATURE
-
73235435 BEARINGS [INCL. ALL BEARINGS]BEARINGS [INCL. ALL BEARINGS]
-
83235624 CLUTCH, ROLLERS [INCL. SET OF 24]CLUTCH, ROLLERS [INCL. SET OF 24]
-
93235625 ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]
-
103235436 ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
-
112203738 DRAIN PLUGDRAIN PLUG
-
122203739 FILL PLUGFILL PLUG
-
133235636 KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]
-
143235712 KIT, TORSION SPRING & RETAINERKIT, TORSION SPRING & RETAINER
-
153235438 KIT, INPUT COVER [INCL. O-RING, COVER, BUSHING, SEAL]KIT, INPUT COVER [INCL. O-RING, COVER, BUSHING, SEAL]
