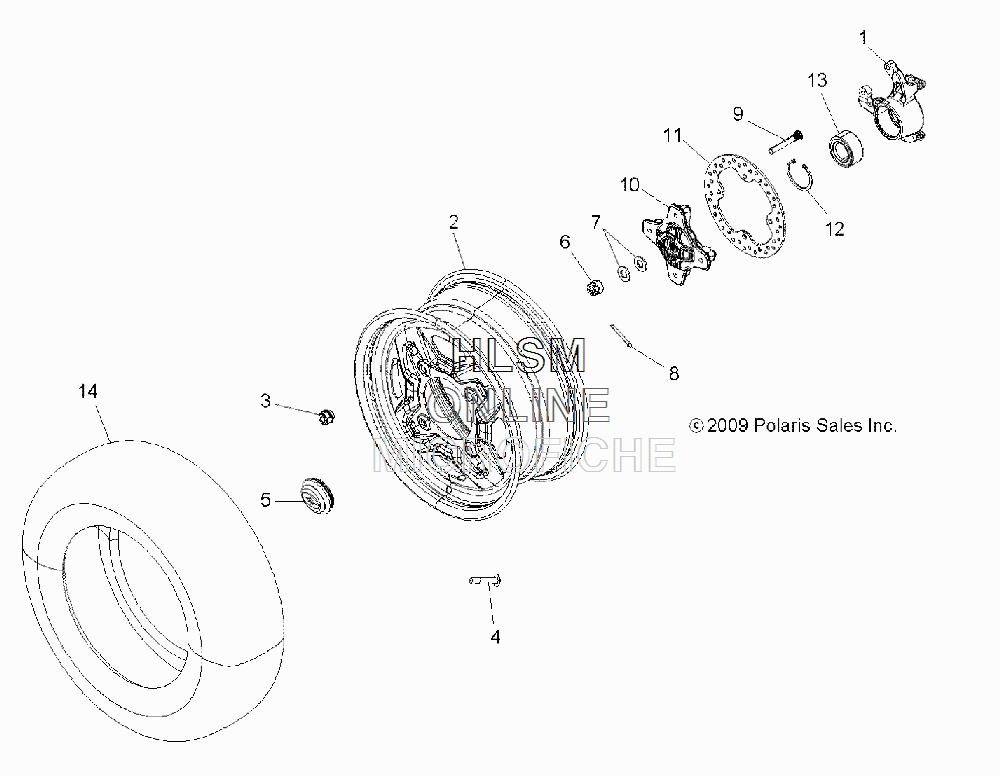

WHEEL - FRONT W/ HUB для Polaris SPORTSMAN 850 SP SAGE BRUSH GREEN [A17SXA85A1] - 2017 года выпуска
-
№АртикулНазвание
-
11822945 ASM., STEERING KNUCKLE, LH [INCL. 12,13]ASM., STEERING KNUCKLE, LH [INCL. 12,13]
-
11822946 ASM., STEERING KNUCKLE, RH [INCL. 12,13]ASM., STEERING KNUCKLE, RH [INCL. 12,13]
-
15136733 KNUCKLE, LHKNUCKLE, LH
-
15136734 KNUCKLE, RHKNUCKLE, RH
-
21521910-067 RIM, FRONT, BLACKRIM, FRONT, BLACK
-
37547363 NUT, WHEELNUT, WHEEL
-
41525017 VALVE, RIMVALVE, RIM
-
55413792 CAP, DUSTCAP, DUST
-
67547406 NUT, CASTLENUT, CASTLE
-
77555796 WASHER, CONEWASHER, CONE
-
87661404 PIN, COTTERPIN, COTTER
-
97518671 STUD, WHEELSTUD, WHEEL
-
105135499 HUB, WHEELHUB, WHEEL
-
115250205 DISC, BRAKEDISC, BRAKE
-
127710440 RING, RETAININGRING, RETAINING
-
133514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
145415600 TIRE-26X8-14TIRE-26X8-14
