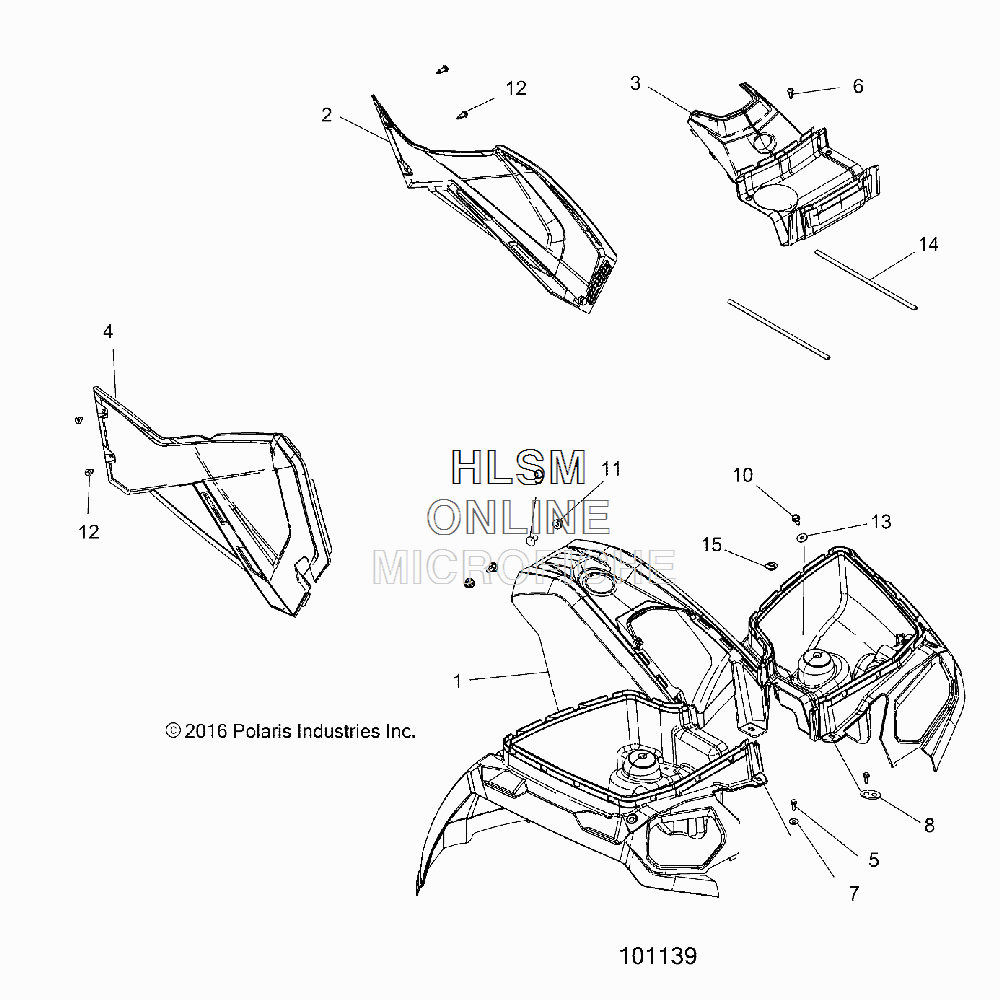

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN TOURING 570 EPS WHITE LIGHTING [A17SDS57C2] - 2017 года выпуска
-
№АртикулНазвание
-
12636211-599 ASM-CAB,FR,SVC,TRG,EU,WHT LT [INCL. WARNING DECALS]ASM-CAB,FR,SVC,TRG,EU,WHT LT [INCL. WARNING DECALS]
-
25450530-599 PANEL-SIDE,LH,WHT LTNGPANEL-SIDE,LH,WHT LTNG
-
35439069-599 COVER-FRONT,WHT LTNGCOVER-FRONT,WHT LTNG
-
42636442-599 ASM-PANEL/SHIELD,RH,WHT LTNGASM-PANEL/SHIELD,RH,WHT LTNG
-
57512232 SCREWSCREW
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107515399 SCREWSCREW
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-30 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
