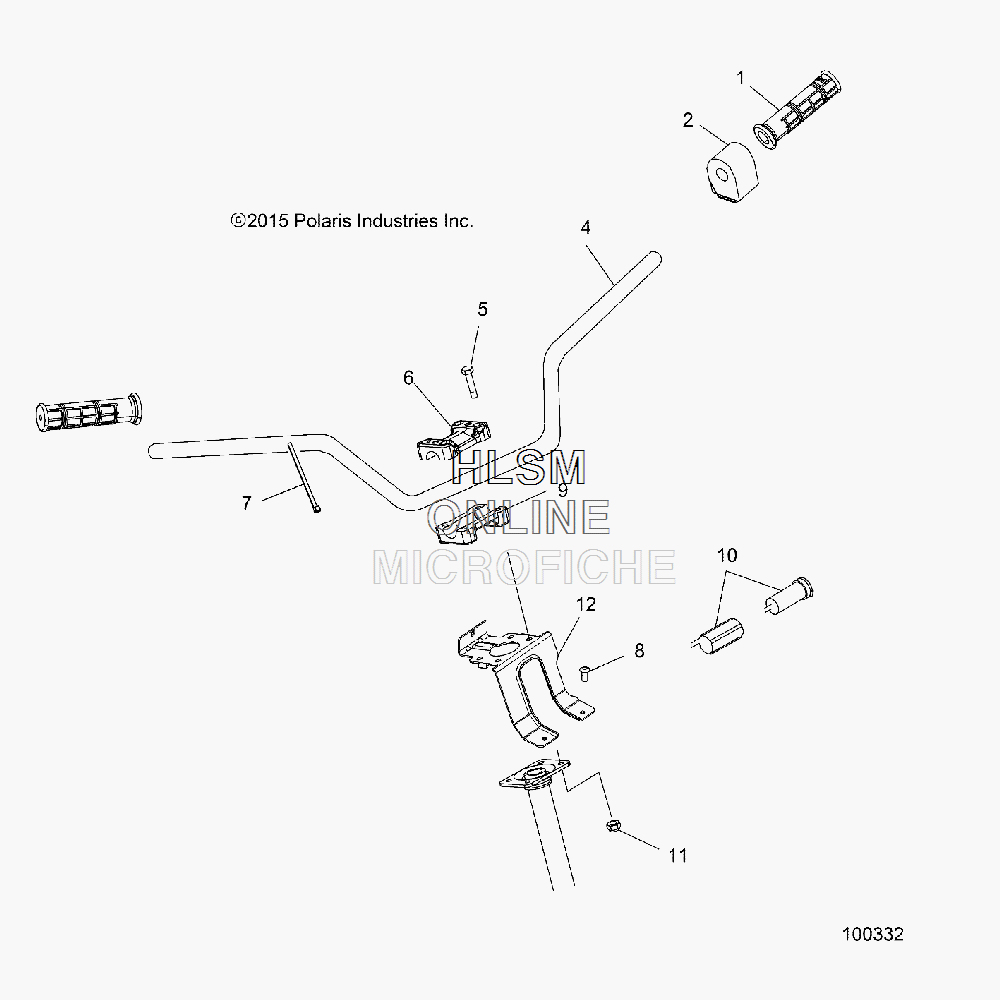

HANDLEBAR - CONTROL ASSY. для Polaris SPORTSMAN TOURING 570 EPS WHITE LIGHTING [A17SDS57C2] - 2017 года выпуска
-
№АртикулНазвание
-
15413578-070 GRIP, HANDLEBAR, BLACKGRIP, HANDLEBAR, BLACK
-
24016005 SWITCH-HANDLEBAR,LH,TRACTORSWITCH-HANDLEBAR,LH,TRACTOR
-
45244581-458 TUBE, HANDLEBAR, MATTE BLACKTUBE, HANDLEBAR, MATTE BLACK
-
57515189 SCREWSCREW
-
65631972 BLOCK, HANDLEBAR, PEGGEDBLOCK, HANDLEBAR, PEGGED
-
77080138 CABLE TIECABLE TIE
-
87517317 SCREWSCREW
-
95631973 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
104010638 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
117542122 NUT, NYLOKNUT, NYLOK
-
125244969-329 BRACKET, POD MOUNTING, BLACKBRACKET, POD MOUNTING, BLACK
