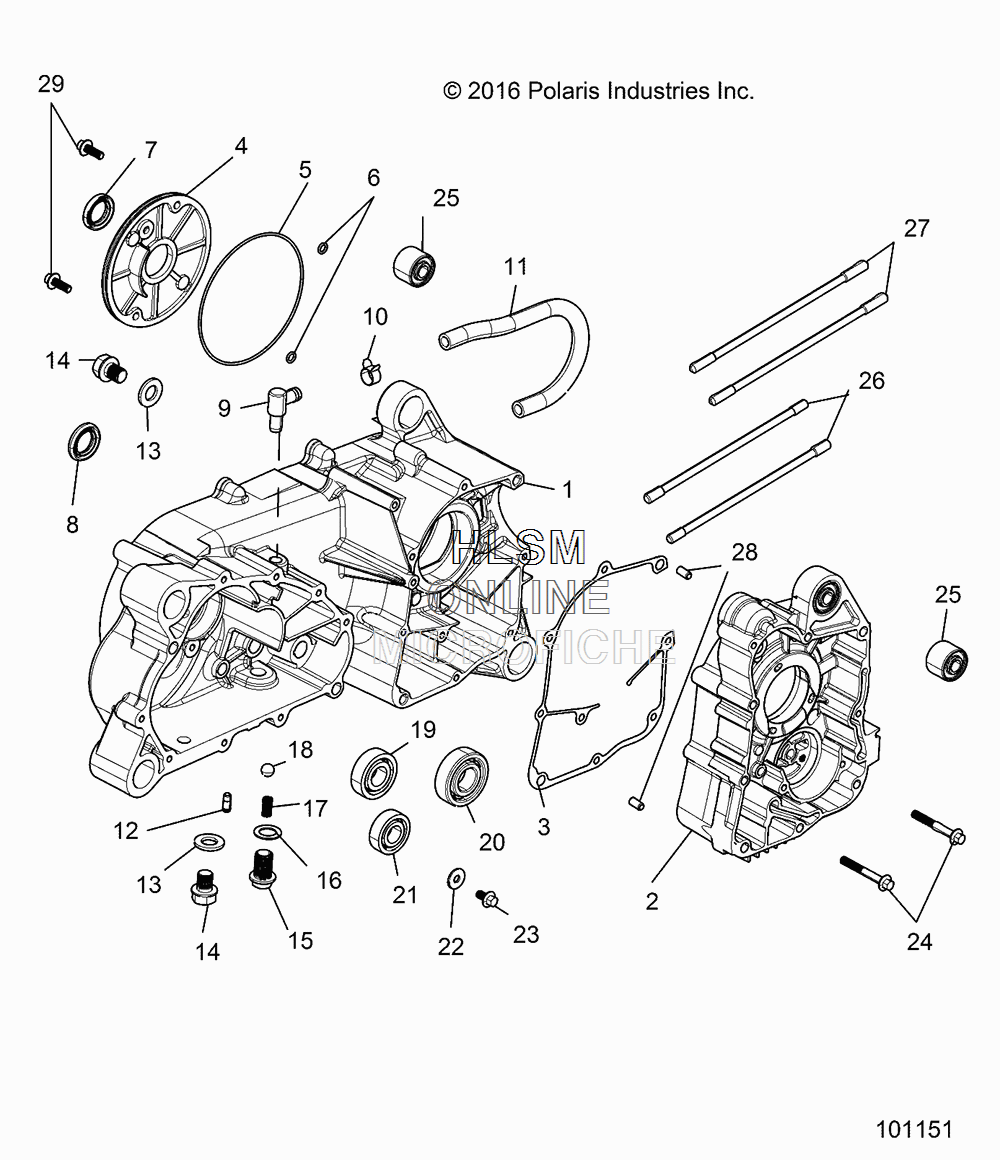

CRANKCASE LEFT/RIGHT для Polaris ACE 150 EFI 501S (INDY RED) [A18HAA15B7] - 2018 года выпуска
-
№АртикулНазвание
-
13050019 CRANKCASE, LEFT HANDCRANKCASE, LEFT HAND
-
23050020 CRANKCASE, RIGHT HANDCRANKCASE, RIGHT HAND
-
33050348 GASKET-CRANKCASEGASKET-CRANKCASE
-
43050022 COVERCOVER
-
53050023 O-RING 107X2O-RING 107X2
-
63050024 O-RING 6X1.8O-RING 6X1.8
-
73050025 OIL SEAL 19.8X30X5OIL SEAL 19.8X30X5
-
83050026 OIL SEAL 20X32X6OIL SEAL 20X32X6
-
93050027 VENTILATION PIPEVENTILATION PIPE
-
103050028 STEEL STRIP TYPE ELASTIC RING HOOOP (16)STEEL STRIP TYPE ELASTIC RING HOOOP (16)
-
118450178-33 WASTE PIPE SET (330MM)WASTE PIPE SET (330MM)
-
123050029 BOX OUTLET NOZZLEBOX OUTLET NOZZLE
-
133050030 WASHER 12WASHER 12
-
143050031 BOLT M12X1.5BOLT M12X1.5
-
153050032 LOCATING BOLT M14X20.8LOCATING BOLT M14X20.8
-
163050033 WASHER 14.2X22X1.3WASHER 14.2X22X1.3
-
173050034 POSITIONING SPRINGPOSITIONING SPRING
-
183050035 STEEL BALL SO10.319STEEL BALL SO10.319
-
193050322 BALL BEARING 6203BALL BEARING 6203
-
203050323 BALL BEARING 6204BALL BEARING 6204
-
213050324 BALL BEARING 6202BALL BEARING 6202
-
223050036 WASHER 6X18X1.6WASHER 6X18X1.6
-
233050325 BOLT M6X12BOLT M6X12
-
243050326 BOLT M6X50BOLT M6X50
-
253050037 ENGINE HANGER BUSHENGINE HANGER BUSH
-
263050038 BOLT, CYLINDER STUD M8X187.5BOLT, CYLINDER STUD M8X187.5
-
273050039 BOLT, CYLINDER STUD M8X196BOLT, CYLINDER STUD M8X196
-
283050040 DOWEL PIN 8X14DOWEL PIN 8X14
-
293050327 BOLT M6X18BOLT M6X18
